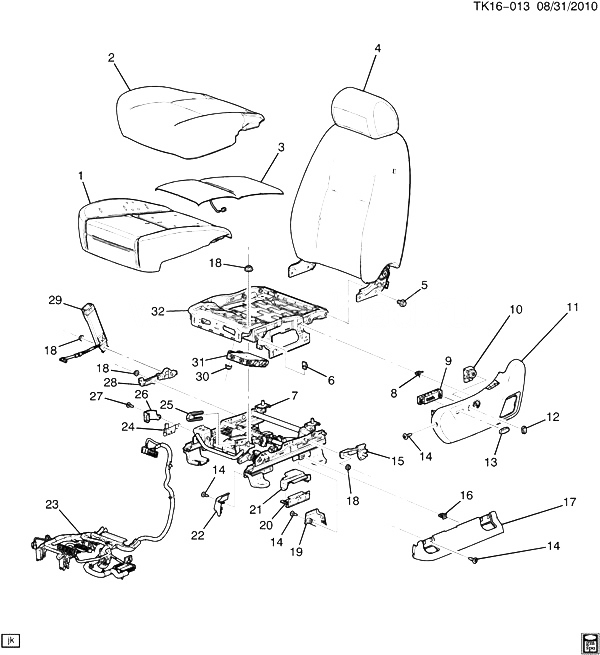

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 002 |
20779849 |
COVER, D/SEAT CUSH (EBONY) (CARPET INBOARD SIDE FACING) (REPLACES VINYL) |
CK1, 2, 3 (AN3, 193) |
2010-2013 |
01 |
| 002 |
20779850 |
COVER, D/SEAT CUSH (CASHMERE) (CARPET INBOARD SIDE FACING) (REPLACES VINYL) |
CK1, 2, 3 (AN3, 333) |
2010-2013 |
01 |
| 002 |
20779851 |
COVER, D/SEAT CUSH (TITANIUM) (CARPET INBOARD SIDE FACING) (REPLACES VINYL) |
CK1, 2, 3 (AN3, 833) |
2010-2013 |
01 |
| 003 |
20792748 |
HEATER, D/SEAT CUSH |
CK1, 2, 3 (AN3) (EXC KB6) |
2010-2013 |
01 |
| 004 |
|
PAD, D/SEAT BK (SEE GROUP 16.000 DRIVER SEAT/BUCKET-BACK FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 005 |
11515764 |
BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (D/SEAT RECL) |
|
2010-2013 |
08 |
| 006 |
11513599 |
NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (F/SEAT) (ACDelco #11513599) |
|
2010-2013 |
02 |
| 008 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 11) |
|
2010-2013 |
03 |
| 009 |
12451497 |
SWITCH, D/SEAT ADJR RECL (8-WAY) (11.558) |
CK1, 2 (06-36) (AN3) |
2010-2013 |
01 |
| 010 |
25926717 |
SWITCH, D/SEAT LUMBAR CONT (CASHMERE) (4-PIN, BKWD FORWD ONLY) (11.378) |
CK1, 2 (06-36) (33I, 39I, 83I, 85I) |
2012-2013 |
01 |
| 011 |
15232562 |
COVER, D/SEAT ADJR FIN (EBONY) (8 WAY POWER) (OUTBOARD) |
CK1, 2 (06-36) (AN3, 19I) |
2010-2013 |
01 |
| 011 |
15232563 |
COVER, D/SEAT ADJR FIN (CASHMERE) (8 WAY POWER) |
CK1, 2 (06-36) (AN3, 33I, 39I) |
2010-2013 |
01 |
| 011 |
15232564 |
COVER, D/SEAT ADJR FIN (TITANIUM) (8 WAY POWER) |
CK1, 2 (06-36) (AN3, 83I) |
2010-2013 |
01 |
| 012 |
15222985 |
KNOB, F/SEAT BK RECL (TITANIUM) (11.377) |
CK1, 2, 3 (83I) |
2010-2013 |
02 |
| 012 |
15222984 |
KNOB, F/SEAT BK RECL (CASHMERE) (11.377) |
CK1, 2 (06-36) (33I) |
2010-2013 |
02 |
| 013 |
10325879 |
KNOB, D/SEAT ADJR SW (EBONY) (11.558) |
CK1, 2 (06-36) (19I) |
2010-2013 |
01 |
| 014 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (F/SEAT) |
|
2010-2013 |
05 |
| 015 |
15845152 |
BRACKET, D/SEAT BELT (RETR SI) (O/B) |
CK1, 2, 3 (AL0) |
2010-2013 |
01 |
| 016 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 17) |
|
2010-2013 |
01 |
| 017 |
15232584 |
COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 16) (EBONY) (OUTBOARD) |
CK1, 2 (06-36) (19I) |
2010-2013 |
01 |
| 017 |
15232585 |
COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 16) (CASHMERE) (OUTBOARD) |
CK1, 2, 3 (33I, 39I) |
2010-2013 |
01 |
| 017 |
15232586 |
COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 16) (TITANIUM) (OUTBOARD) |
CK1, 2 (06-36) (83I) |
2010-2013 |
01 |
| 018 |
11517996 |
NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (D/SEAT ADJR TOP PLT) (ACDelco #11517996) |
|
2010-2013 |
09 |
| 019 |
15243864 |
COVER, D/SEAT OTR ADJR TRK RR FIN (EBONY) (INBOARD) |
CK1, 2 (06-36) (19I) |
2010-2013 |
01 |
| 019 |
15243865 |
COVER, D/SEAT OTR ADJR TRK RR FIN (CASHMERE) (INBOARD) |
CK1, 2 (06-36) (33I, 39I) |
2010-2013 |
01 |
| 019 |
15243866 |
COVER, D/SEAT OTR ADJR TRK RR FIN (TITANIUM) (INBOARD) |
CK1, 2 (06-36) (83I) |
2010-2013 |
01 |
| 020 |
15827134 |
BRACKET, D/SEAT (MAIN BODY HARNESS CONNECTION) |
CK1, 2, 3 |
2012-2013 |
01 |
| 022 |
15243852 |
COVER, D/SEAT INR ADJR TRK FRT FIN (TITANIUM) |
CK1, 2, 3 (83I) |
2010-2013 |
01 |
| 022 |
15243850 |
COVER, D/SEAT INR ADJR TRK FRT FIN (EBONY) |
CK1, 2 (06-36) (19I) |
2010-2013 |
01 |
| 022 |
15243851 |
COVER, D/SEAT INR ADJR TRK FRT FIN (CASHMERE) |
CK1, 2 (06-36) (33I, 39I) |
2010-2013 |
01 |
| 026 |
20900194 |
COVER, AIRBAG D/SEAT POSN SEN |
CK1, 2 (06-36) |
2010-2013 |
01 |
| 027 |
88981918 |
BOLT, D/SEAT ADJR (M6X1X13.5) (16.714) |
CK1, 2, 3 |
2010-2013 |
06 |
| 028 |
25916854 |
BRACKET, D/SEAT BELT (BKL SI) (I/B) (INCLDS BKL MOUNT STUD) |
CK1, 2, 3 |
2010-2013 |
01 |
| 029 |
19121539 |
BELT KIT, D/SEAT (BKL SI) (TITANIUM) |
CK1, 2 (06-36) (AN3, 83I) |
2010-2013 |
01 |
| 029 |
19121537 |
BELT KIT, D/SEAT (BKL SI) (EBONY) |
CK1, 2 (06-36) (AN3, 19I) |
2010-2013 |
01 |
| 029 |
19121538 |
BELT KIT, D/SEAT (BKL SI) (CASHMERE) |
CK1, 2 (06-36) (AN3, 33I, 39I) |
2012-2013 |
01 |
| 030 |
11516075 |
NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (D/SEAT ADJR MEMORY SW) |
|
2010-2013 |
06 |
| 031 |
25855630 |
MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (11.558) (LABELED 25855630, 25917599, 20870474, 15921044, 15193620, 15246159, 15804058, 15820413, 15826609, 21, 15833435, 15844068, 72, 15853219, 15895345, 48, 15896747) |
CK1, 2 (06-36) (AN3) (EXC KB6) |
2010-2013 |
01 |
| 031 |
25855630 |
MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (11.558) (LABELED 25855630, 25917599, 20870474, 15921044, 15193620, 15246159, 15804058, 15820413, 15826609, 21, 15833435, 15844068, 72, 15853219, 15895345, 48, 15896747) |
CK1, 2 (06-36) (AN3) (EXC KB6) |
2010-2013 |
01 |
| 032 |
22781434 |
FRAME, D/SEAT CUSH |
CK1, 2 (06-36) |
2012-2013 |
01 |
