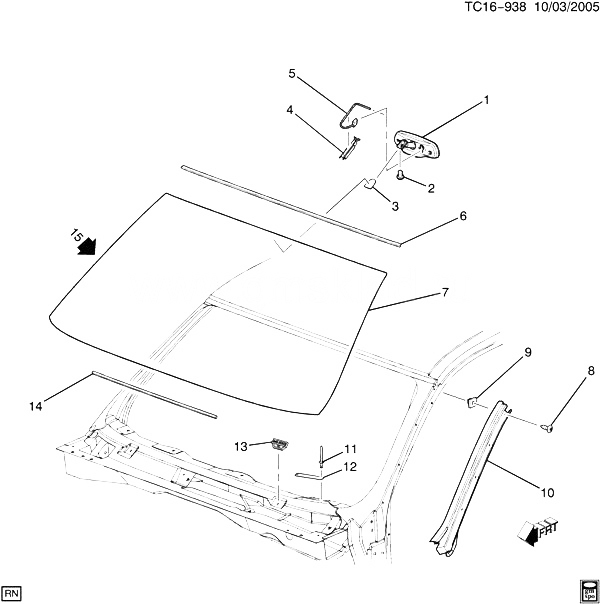

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25774613 |
MIRROR, I/S RR VIEW (INCLS 2) |
CK1, 2 (DD8, TQ5) (EXC UE1) |
2009-2013 |
01 |
| 001 |
15816792 |
MIRROR, I/S RR VIEW (INCLS 2) (W/O MIC) (MATING CONN W/LEADS USE 15306351) |
CK1, 2, 3 (DD8, UE1) (EXC TQ5) |
2009-2013 |
01 |
| 001 |
15271286 |
MIRROR, I/S RR VIEW (INCLS 2) (10.185) |
CK1, 2, 3 (DD8) (EXC TQ5, UE1) |
2009-2013 |
01 |
| 001 |
20945097 |
MIRROR, I/S RR VIEW (INCLS 2) (10.185) |
CK1, 2, 3 (DRC, UE1) |
2009-2013 |
01 |
| 001 |
22915245 |
MIRROR, I/S RR VIEW (INCLS 2) |
CK1, 2 (DD8, TQ5, UE1) |
2009-2013 |
01 |
| 002 |
19207911 |
BOLT, I/S RR VIEW MIR (PART OF 1) (BLACK) (M10X24X12.7) (10.186) |
CK1, 2, 3 |
2007-2013 |
01 |
| 003 |
25653132 |
BRACKET, I/S RR VIEW MIR (PART OF 7) (10.187) |
K107 (06) (CW5) |
2012-2013 |
01 |
| 004 |
15779345 |
COVER, I/S RR VIEW MIR WRG HARN (BETWEEN ISRVM HDLNG TRIM) |
CK1, 2, 3 |
2007-2013 |
01 |
| 005 |
|
HARNESS, RF ACSRY WRG (SEE GROUP 16.000 TRIM/INTERIOR-ROOF FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 006 |
|
MOLDING, W/S RVL (PART OF 7) |
|
2007-2013 |
|
| 007 |
20981593 |
WINDSHIELD, (INCLS 3, 6, 14) |
CK1 (Z75) |
2011-2013 |
01 |
| 007 |
20979218 |
WINDSHIELD, (INCLS 3, 6, 14) (INCLS UPR MLDG) |
CK1, 3 (CW5) |
2012-2013 |
01 |
| 008 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (W/S R/MLDG) |
|
2007-2013 |
10 |
| 009 |
11589183 |
NUT, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (W/S R/MLDG) |
|
2007-2013 |
10 |
| 010 |
20918020 |
MOLDING, W/S RVL |
CK1, 2, 3 |
2007-2013 |
01 |
| 010 |
20918021 |
MOLDING, W/S RVL |
CK1, 2, 3 |
2007-2013 |
01 |
| 011 |
|
RIVET, VIN PLT |
|
2007-2013 |
|
| 012 |
|
PLATE, VIN (CONTACT APPROPRIATE AUTHORITY GOVERNING MOTOR VEHICLES FOR REPLACEMENT PROCESS) |
|
2007-2013 |
|
| 013 |
25954952 |
SUPPORT, W/S |
CK1, 2, 3 |
2007-2013 |
02 |
| 014 |
|
SEALING STRIP, W/S (PART OF 7) |
|
2007-2013 |
|
| 015 |
|
ADHESIVE KIT, GLS URETHANE |
|
2007-2013 |
|
