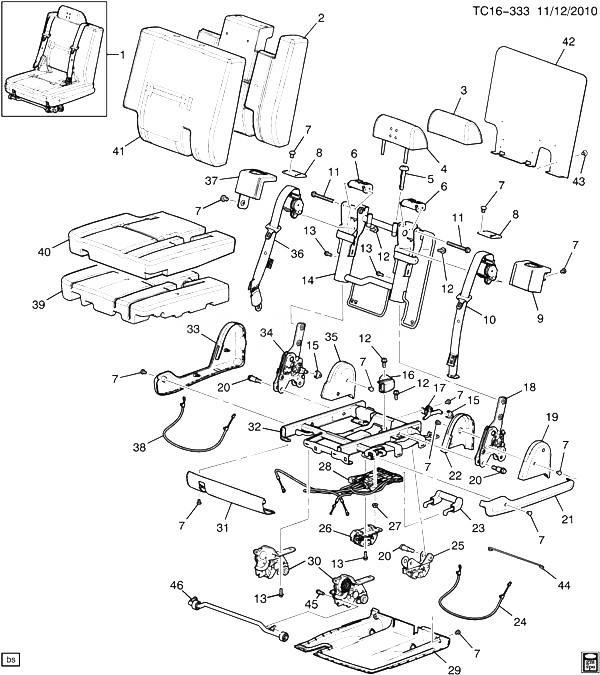

(TC16-333) 2008-2013 CK1,2(06) ЗАДНЕЕ СИДЕНЬЕ #2 (3RD ROW)-RH(AS3) CADILLAC - ESCALADE HYBRID (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22760806 SEAT, 3RD ROW (INCLS 2-46) (EBONY) CK1 (06) (AQY, AS3, Z75, 194) (EXC AX4) 2007-2013 01
001 22760807 SEAT, 3RD ROW (INCLS 2-46) (CASHMERE) CK1 (06) (AQY, AS3, Z75, 394) (EXC AX4) 2009-2013 01
001 22760812 SEAT, 3RD ROW (INCLS 2-46) (EBONY) CK1 (06) (AS3, Z75, 194) (EXC AQY, AX4) 2007-2013 01
001 22760813 SEAT, 3RD ROW (INCLS 2-46) (CASHMERE) CK1 (06) (AS3, Z75, 394) (EXC AQY, AX4) 2009-2013 01
001 22760815 SEAT, 3RD ROW (INCLS 2-46) (EBONY) CK1, 2 (06) (AQY, AS3, 19C) (EXC 5T5) 2010-2013 01
001 22760816 SEAT, 3RD ROW (INCLS 2-46) (CASHMERE) CK1, 2 (06) (AQY, AS3, 33C) (EXC 5T5) 2010-2013 01
001 22760821 SEAT, 3RD ROW (INCLS 2-46) (EBONY) CK1, 2 (06) (AS3, 19C) (EXC AQY, 5T5) 2010-2013 01
001 22760822 SEAT, 3RD ROW (INCLS 2-46) (CASHMERE) CK1, 2 (06) (AS3, 33C) (EXC AQY) 2010-2013 01
001 22760835 SEAT, 3RD ROW (INCLS 2-46) (EBONY) CK1, 2 (06) (AQY, AS3, 19V) 2007-2013 01
001 22760835 SEAT, 3RD ROW (INCLS 2-46) (EBONY) CK1, 2 (06) (AQY, AS3, 19C, 5T5) 2009-2013 01
001 22760843 SEAT, 3RD ROW (INCLS 2-46) (EBONY) CK1, 2 (06) (AS3, 19C, 5T5) (EXC AQY) 2009-2013 01
001 22760843 SEAT, 3RD ROW (INCLS 2-46) (EBONY) CK1, 2 (06) (AS3, 19V) (EXC AQY) 2007-2013 01
001 22760849 SEAT, 3RD ROW (INCLS 2-46) (COCOA) CK1 (06) (AS3, ULT, Z75, 415) (EXC AQY, AX4) 2008-2013 01
001 22760853 SEAT, 3RD ROW (INCLS 2-46) (COCOA) CK1 (06) (AQY, AS3, ULT, Z75, 415) 2009-2013 01
001 22784405 SEAT, 3RD ROW (INCLS 2-46) (EBONY) CK1 (06) (AS3, ULT, Z75, 195) (EXC AQY, AX4) 2012-2013 01
001 22784408 SEAT, 3RD ROW (INCLS 2-46) (EBONY) CK1 (06) (AQY, AS3, ULT, Z75, 195) 2012-2013 01
001 22760829 SEAT, 3RD ROW (INCLS 2-46) (COCOA) K1 (06) (AS3, AX4, ULT, Z75, 415) (EXPORT) 2009-2013 01
001 22760886 SEAT, 3RD ROW (INCLS 2-46) (EBONY) CK107 (06) (AS3, AX4, Z75, 194) (EXPORT) 2007-2013 01
001 22760887 SEAT, 3RD ROW (INCLS 2-46) (CASHMERE) CK107 (06) (AS3, AX4, Z75, 394) (EXPORT) 2009-2013 01
001 22784402 SEAT, 3RD ROW (INCLS 2-46) (EBONY) K1 (06) (AS3, AX4, ULT, Z75, 195) (EXPORT) 2012-2013 01
002 15804529 PAD, 3RD ROW SEAT BK CK1, 2 (06) (AS3) 2007-2013 01
003 COVER, R/SEAT H/RST (PART OF 4) 2008-2013
004 15863451 RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) CK1, 2 (06) (AQY, AS3, 19D, 5T5) 2007-2013 02
004 15863451 RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) CK1, 2 (06) (AQY, AS3, 5T5) 2007-2013 02
004 15863451 RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) CK1, 2 (06) (AQY, AS3, 19V) 2007-2013 02
004 15865842 RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) CK1, 2 (06) (AS3, 19V) (EXC AQY) 2007-2013 02
004 15833506 RESTRAINT, R/SEAT HD (INCLS 3) (CASHMERE) CK1 (06) (AS3, Z75, 394) (EXC AQY) 2009-2013 02
004 15833505 RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) CK1 (06) (AS3, Z75, 194) (EXC AQY) 2007-2013 02
004 15863458 RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) CK1 (06) (AQY, AS3, Z75, 194) (EXC AX4) 2007-2013 02
004 15863459 RESTRAINT, R/SEAT HD (INCLS 3) (CASHMERE) CK1 (06) (AQY, AS3, Z75, 394) 2007-2013 02
004 20904837 RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) CK1, 2 (06) (AQY, AS3, 19C) (EXC 5T5) 2010-2013 02
004 20904838 RESTRAINT, R/SEAT HD (INCLS 3) (CASHMERE) CK1, 2 (06) (AQY, AS3, 33C) (EXC 5T5) 2010-2013 02
004 20904931 RESTRAINT, R/SEAT HD (INCLS 3) (CASHMERE) CK1, 2 (06) (AS3, 33C) (EXC AQY) 2010-2013 02
004 15863452 RESTRAINT, R/SEAT HD (INCLS 3) (CASHMERE) CK1, 2 (06) (AQY, AS3, 333) 2011-2013 02
004 15863452 RESTRAINT, R/SEAT HD (INCLS 3) (CASHMERE) CK1, 2 (06) (AQY, AS3, 336) 2011-2013 02
004 15913991 RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) CK1, 2 (06) (AS3, 19C) (EXC AQY, 5T5) 2010-2013 02
004 15827642 RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) CK107 (06) (AS3, AX4, Z75, 194) (EXPORT) 2007-2013 02
005 15279353 GUIDE, 3RD ROW SEAT H/RST (TITANIUM) (W/O BUTTON) CK1, 2 (83I) 2007-2013 02
005 25851751 GUIDE, 3RD ROW SEAT H/RST (COCOA) (W/O BUTTON) CK1 (41I) 2008-2013 02
005 20912677 GUIDE, 3RD ROW SEAT H/RST (COCOA) (W/BUTTON) CK1 (06) (41I) 2008-2013 02
005 20912675 GUIDE, 3RD ROW SEAT H/RST (CASHMERE) (W/BUTTON) CK1, 2 (33I, 39I) 2007-2013 02
005 20912676 GUIDE, 3RD ROW SEAT H/RST (TITANIUM) (W/BUTTON) CK1, 2, 3 (83I) 2007-2013 02
005 15804525 GUIDE, 3RD ROW SEAT H/RST (EBONY) CK107 (06) (AS3, AX4, Z75, 194) (EXPORT) 2007-2013 04
005 25943771 GUIDE, 3RD ROW SEAT H/RST (COCOA) K1 (06) (AS3, AX4, ULT, Z75, 415) (EXPORT) 2009-2013 02
006 25869335 BRACKET, R/SEAT 3RD ROW BELT (RETR SI) CK1, 2 (06) (AS3) 2007-2013 02
007 11570116 SCREW, PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT RSR FIN CVR) (8.913) 2007-2013 AR
008 BEZEL, R/SEAT BELT OPG (PART OF 10, 36) 2008-2013
009 15827662 COVER, R/SEAT HGE FIN (OUTBOARD) CK1, 2 (06) (AS3) 2007-2013 01
009 15827667 COVER, R/SEAT HGE FIN (INBOARD) CK1, 2 (06) (AS3) 2007-2013 01
010 19207593 BELT KIT, R/SEAT #2 CTR (RETR SI) (INCLS 8) (COCOA) CK1 (06) (AS3, ULT, Z75, 415) 2008-2013 01
010 19207590 BELT KIT, R/SEAT #2 CTR (RETR SI) (INCLS 8) (CASHMERE) CK1, 2 (06) (AS3, 33I, 394, 397) 2008-2013 01
010 19207591 BELT KIT, R/SEAT #2 CTR (RETR SI) (INCLS 8) (TITANIUM) CK1, 2 (06) (AS3, 83I) 2008-2013 01
010 19207589 BELT KIT, R/SEAT #2 CTR (RETR SI) (INCLS 8) (EBONY) CK1, 2 (06) (AS3, 19I) 2010-2013 01
011 11562382 BOLT, HFH, M10X1.5X130, 26 THD, 22.3 OD, 10.9, 7114M, MACH, MAT-PT (3RD ROW SEAT BK) 2007-2013 AR
012 11562383 BOLT, 3RD ROW SEAT BELT ANC (M12X1.75X30.5) (8.900) CK1, 2 (06) 2010-2013 02
013 BOLT, R/SEAT BK FRM 2007-2013
014 15898362 FRAME, 3RD ROW SEAT BK CK1, 2 (06) (AS3) 2008-2013 01
014 25960399 FRAME, 3RD ROW SEAT BK K1 (06) (AQY, AS3, ULT, Z75) 2009-2013 01
014 15898399 FRAME, 3RD ROW SEAT BK CK1 (06) (AS3, AX4) (EXPORT) 2011-2013 01
015 20963262 KNOB, 3RD ROW SEAT BK LAT REL (EBONY) (OUTER) CK1, 2 (06) (AS3, 19I, 33I, 39I, 83I) 2010-2013 01
015 20963265 KNOB, 3RD ROW SEAT BK LAT REL (EBONY) (INNER) CK1, 2 (06) (AS3, 19I, 33I, 39I, 83I) 2011-2013 02
016 19180590 BELT KIT, R/SEAT #2 (BKL SI) (COCOA) CK1 (06) (AS3, ULT, Z75, 415) 2008-2013 01
016 19152523 BELT KIT, R/SEAT #2 (BKL SI) (CASHMERE) (SINGLE BKL) CK1, 2 (06) (AS3, 33I, 39I) 2008-2013 01
016 19152524 BELT KIT, R/SEAT #2 (BKL SI) (TITANIUM) (SINGLE BKL) CK1, 2 (06) (AS3, 83I) 2008-2013 01
016 19152522 BELT KIT, R/SEAT #2 (BKL SI) (EBONY) (SINGLE BKL) CK1, 2 (06) (AS3, 19I) 2010-2013 01
017 15832214 LEVER, R/SEAT RSR LAT REL CK1, 2 (06) (AS3) 2007-2013 02
020 19127809 BOLT, 3RD ROW SEAT BK LAT (M12X1.75X63.9) (16.679) CK1, 2 (06) 2007-2013 02
021 15822384 COVER, 3RD ROW SEAT BK HGE FIN (EBONY) CK1, 2 (06) (AS3, 19I) 2007-2013 01
021 15822385 COVER, 3RD ROW SEAT BK HGE FIN (CASHMERE) CK1, 2 (06) (AS3, 33I, 39I) 2007-2013 01
021 15822386 COVER, 3RD ROW SEAT BK HGE FIN (TITANIUM) CK1, 2 (06) (AS3, 83I) 2007-2013 01
021 25858775 COVER, 3RD ROW SEAT BK HGE FIN (COCOA) CK1 (06) (AS3, 41I) 2008-2013 01
023 20963256 HANDLE, R/SEAT LAT REL (PART OF 28) (CASHMERE) CK1, 2 (06) (AS3, 33I, 39I) 2011-2013 01
023 20963255 HANDLE, R/SEAT LAT REL (PART OF 28) (EBONY) CK1, 2 (06) (AS3, 19I) 2011-2013 01
023 20963257 HANDLE, R/SEAT LAT REL (PART OF 28) (TITANIUM) CK1, 2 (06) (AS3, 83I) 2011-2013 01
023 22906161 HANDLE, R/SEAT LAT REL (PART OF 28) CK1 (06) (AS3, ULT, Z75, 415) 2010-2013 01
027 NUT, R/SEAT LAT 2007-2013
030 15898402 LATCH, 3RD ROW SEAT LOAD FLR (INCLS 45, 46) (INCLS INBOARD AND OUTBOARD) CK1, 2 (06) (AS3) 2007-2013 01
032 15926524 FRAME, 3RD ROW SEAT CUSH CK1, 2 (06) (AS3) 2008-2013 01
033 15898407 COVER, 3RD ROW SEAT BK LAT (EBONY) (OUTBOARD, OUTER) CK1, 2 (06) (AS3, 19I) 2007-2013 01
033 15898408 COVER, 3RD ROW SEAT BK LAT (CASHMERE) (OUTBOARD, OUTER) CK1, 2 (06) (AS3, 33I, 39I) 2007-2013 01
033 15898409 COVER, 3RD ROW SEAT BK LAT (TITANIUM) (OUTBOARD, OUTER) (16.716) CK1, 2 (06) (AS3, 83I) 2007-2013 01
033 25858772 COVER, 3RD ROW SEAT BK LAT (COCOA) (OUTBOARD, OUTER) CK1 (06) (AS3, 41I) 2008-2013 01
034 25928521 LATCH, 3RD ROW SEAT BK CK1, 2 (06) (AS3) 2007-2013 01
036 19207603 BELT KIT, R/SEAT #2 (RETR SI) (INCLS 8) (COCOA) K1 (06) (AS3, ULT, Z75, 415) 2009-2013 01
036 19207600 BELT KIT, R/SEAT #2 (RETR SI) (INCLS 8) (CASHMERE) CK1, 2 (06) (AS3, 33I, 39I) 2008-2013 01
036 19207601 BELT KIT, R/SEAT #2 (RETR SI) (INCLS 8) (TITANIUM) CK1, 2 (06) (AS3, 83I) 2008-2013 01
036 19207599 BELT KIT, R/SEAT #2 (RETR SI) (INCLS 8) (EBONY) CK1, 2 (06) (AS3, 19I) 2010-2013 01
036 25906825 BELT, R/SEAT #2 (RETR SI) (INCLS 8) (CASHMERE) CK107 (06) (AS3, AX4, Z75, 394) (EXPORT) 2009-2013 01
036 25940415 BELT, R/SEAT #2 (RETR SI) (INCLS 8) (COCOA) K1 (06) (AS3, AX4, ULT, Z75, 415) (EXPORT) 2009-2013 01
036 25869320 BELT, R/SEAT #2 (RETR SI) (INCLS 8) (EBONY) CK107 (06) (AS3, AX4, Z75, 194) (EXPORT) 2008-2013 01
036 25869320 BELT, R/SEAT #2 (RETR SI) (INCLS 8) (EBONY) CK1, 2 (06) (AS3, AX4, Z75, ULT, 194, 195) (EXPORT) 2011-2013 01
037 15827657 COVER, R/SEAT HGE FIN (OUTBOARD) CK1, 2 (06) (AS3) 2007-2013 01
039 15804533 PAD, 3RD ROW SEAT CUSH CK1, 2 (06) (AS3) 2007-2013 01
040 25858737 COVER, 3RD ROW SEAT CUSH (COCOA) CK1 (06) (AS3, ULT, Z75, 415) 2008-2013 01
040 25937625 COVER, 3RD ROW SEAT CUSH (EBONY) CK1, 2 (06) (AS3, KB6, 196) 2009-2013 01
040 25937626 COVER, 3RD ROW SEAT CUSH (CASHMERE) CK1, 2 (06) (AS3, KB6, 336) 2009-2013 01
040 25937627 COVER, 3RD ROW SEAT CUSH (TITANIUM) CK1, 2 (06) (AS3, KB6, 836) 2009-2013 01
040 20904822 COVER, 3RD ROW SEAT CUSH (EBONY) CK1, 2 (06) (AS3, 19C) (EXC 5T5) 2010-2013 01
040 20904824 COVER, 3RD ROW SEAT CUSH (CASHMERE) CK1, 2 (06) (AQY, AS3, 33C) (EXC 5T5) 2010-2013 01
040 25928483 COVER, 3RD ROW SEAT CUSH (EBONY) CK1, 2 (06) (AS3, 19V) 2007-2013 01
040 25928483 COVER, 3RD ROW SEAT CUSH (EBONY) CK1, 2 (06) (AS3, 193) 2007-2013 01
040 25928483 COVER, 3RD ROW SEAT CUSH (EBONY) CK1, 2 (06) (AS3, 19C, 5T5) 2009-2013 01
040 22751179 COVER, 3RD ROW SEAT CUSH (CASHMERE) CK1 (06) (AS3, Z75, 394) (EXC AX4) 2011-2013 01
040 22751178 COVER, 3RD ROW SEAT CUSH (EBONY) CK1 (06) (AS3, Z75, 194) (EXC AX4) 2007-2013 01
040 25928485 COVER, 3RD ROW SEAT CUSH (TITANIUM) CK1, 2 (06) (AS3, 833) 2007-2013 01
040 22784412 COVER, 3RD ROW SEAT CUSH (EBONY) CK1 (06) (AS3, ULT, Z75, 195) 2012-2013 01
040 25928484 COVER, 3RD ROW SEAT CUSH (CASHMERE) CK1, 2 (06) (AS3, 333) 2009-2013 01
040 22784412 COVER, 3RD ROW SEAT CUSH (EBONY) K1 (06) (AS3, AX4, ULT, Z75, 195) (EXPORT) 2012-2013 01
041 22760759 COVER, 3RD ROW SEAT BK (EBONY) CK1, 2 (06) (AS3, 19C, 5T5) 2012-2013 01
041 22760759 COVER, 3RD ROW SEAT BK (EBONY) CK1, 2 (06) (AS3, 19V) 2012-2013 01
041 22760763 COVER, 3RD ROW SEAT BK (EBONY) CK1 (06) (AS3, Z75, 194) 2012-2013 01
041 22760764 COVER, 3RD ROW SEAT BK (CASHMERE) CK1 (06) (AS3, Z75, 394) 2012-2013 01
041 22760766 COVER, 3RD ROW SEAT BK (EBONY) CK1, 2 (06) (AS3, 19C) (EXC 5T5) 2012-2013 01
041 22760767 COVER, 3RD ROW SEAT BK (CASHMERE) CK1, 2 (06) (AS3, 33C) (EXC 5T5) 2012-2013 01
041 22760788 COVER, 3RD ROW SEAT BK (COCOA) CK1 (06) (AS3, Z75, 415) 2012-2013 01
041 22784410 COVER, 3RD ROW SEAT BK (EBONY) CK1 (06) (AS3, ULT, Z75, 195) 2012-2013 01
041 22784410 COVER, 3RD ROW SEAT BK (EBONY) K1 (06) (AS3, AX4, ULT, Z75, 195) (EXPORT) 2012-2013 01
042 15924920 PANEL, R/SEAT BK FIL CK1, 2 (06) (AS3) 2007-2013 01
044 15924917 WIRE, R/SEAT CUSH BRDR CK1, 2 (06) (AS3) 2007-2013 01
045 BOLT, R/SEAT BK LAT REL HDL (PART OF 30) 2008-2013
046 25895133 BAR, R/SEAT HGE LINK TIE (PART OF 30) CK1, 2 (06) (AS3) 2007-2013 01
