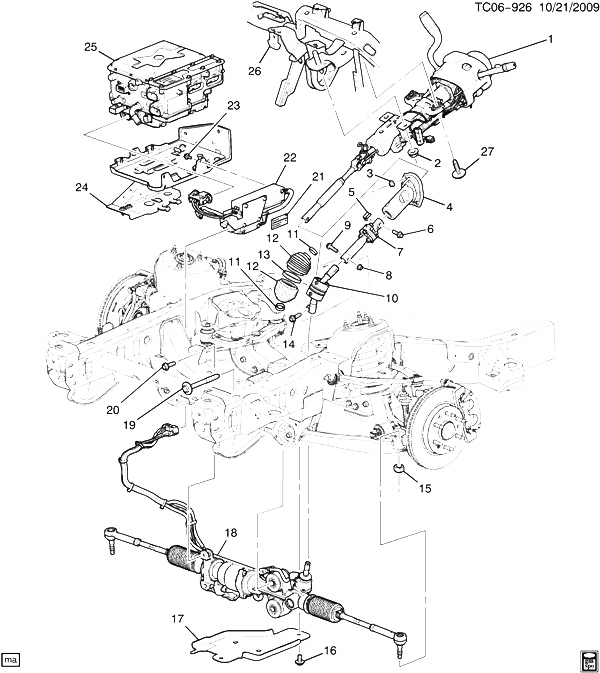

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
COLUMN, STRG (SEE GROUP 06.000 STEERING COLUMN FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 002 |
11517996 |
NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (STRG COL) (ACDelco #11517996) |
|
2008-2013 |
04 |
| 003 |
21011332 |
NUT, HEX STAMPED TY DF FLG 14 (STRG COL SEAL) (8.921) |
|
2008-2013 |
03 |
| 004 |
25815601 |
SEAL, STRG COL (145.2MM LONG) |
CK1 |
2009-2013 |
01 |
| 005 |
15017238 |
NUT, S/GR CPLG (M10X1.5 6H, 21.5 OD) (W/PREVAILING TORQ FLANGE) |
CK1, 2, 3 |
2008-2013 |
01 |
| 006 |
11515768 |
BOLT, S/GR CPLG (PART OF 7) (M10X1.5X40, 30THD) (8.900) |
CK1, 2, 3 |
2008-2013 |
01 |
| 007 |
25979050 |
SHAFT, S/GR CPLG (INCLS 6, 8-13) |
CK1 (HP2) |
2009-2013 |
01 |
| 007 |
25979050 |
SHAFT, S/GR CPLG (INCLS 6, 8-13) (6.524) |
CK1 (HP2) |
2009-2013 |
01 |
| 008 |
15017238 |
NUT, S/GR CPLG (PART OF 7) (M10X1.5 6H, 21.5 OD) (W/PREVAILING TORQ FLANGE) |
CK1, 2, 3 |
2008-2013 |
01 |
| 009 |
11515768 |
BOLT, S/GR CPLG (PART OF 7) (M10X1.5X40, 30THD) (8.900) |
CK1, 2, 3 |
2008-2013 |
01 |
| 010 |
|
YOKE, INTER STRG SHF (PART OF 7) |
|
2009-2013 |
|
| 011 |
11561800 |
CLAMP, CRIMP, 33.5 DIA, 304 STAINLESS STEEL (PART OF 7, 12) |
|
2008-2013 |
02 |
| 012 |
19177403 |
BOOT KIT, INTER STRG SHF (PART OF 7) (INCLS 11, 13) |
CK1 |
2008-2013 |
01 |
| 013 |
11561799 |
CLAMP, DIA 69.7, 304 STAINLESS STEEL (PART OF 7, 12) |
|
2008-2013 |
01 |
| 014 |
11610555 |
BOLT, S/GR CPLG (M10X1.5X31) (11MM SOC HEADER PT) |
CK1, 2, 3 |
2012-2013 |
01 |
| 015 |
11516074 |
NUT, HEX M14X2X13 (STRG LNKG OTR TIE ROD) |
|
2008-2013 |
02 |
| 016 |
11518341 |
BOLT, HEX, M10X1.5X25, 14 THD, 28 OD, 6202M, 7114M, TAP, TR-PT (STRG LNKG SHLD) |
|
2008-2013 |
02 |
| 017 |
15847584 |
SHIELD, STRG LNKG |
CK1 (HP2) |
2008-2013 |
01 |
| 018 |
|
GEAR, STRG (SEE GROUP 06.000 STEERING GEAR ASM FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 019 |
11609229 |
BOLT, S/GR (M16X2X172, 57THD) (W/ADHESIVE) |
CK1 |
2008-2013 |
02 |
| 020 |
11569939 |
BOLT, S/GR (M12X1.75X50, 33THD) |
CK1 |
2008-2013 |
02 |
| 021 |
25813638 |
LABEL, P/S FLUID VOLTAGE CAUTION (PART OF 22) (TWO-MODE HYBRID) |
CK107 (06) (HP2) |
2008-2013 |
01 |
| 022 |
25962338 |
MODULE, ELEK P/S MOT CONT (INCLS 21) |
CK1 (HP2) |
2008-2013 |
01 |
| 023 |
11900241 |
BOLT, P/S CONT MDL (M6X1.0X12) (3.602) |
CK1 (HP2) |
2008-2013 |
03 |
| 024 |
|
TRAY, ACSRY DC PWR CONT MDL (SEE GROUP 02.000 CONTROL MODULE ASM/DRIVE MOTOR/MOUNTING (HYBRID HPS) FOR DETAILED ILLUSTRATED VEIW) |
|
2008-2013 |
|
| 025 |
12636016 |
MODULE, DRV MOT GEN PWR INV (SEE GROUP 02.000 CONTROL MODULE ASM/DRIVE MOTOR FOR DETAILED ILLUSTRATED VIEW) |
CK1 (HP2) |
2010-2013 |
01 |
| 026 |
|
SUPPORT, I/P CARR (SEE GROUP 16.000 INSTURMENT PANEL RELATED PARTS PART 3 FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 027 |
11569993 |
BOLT, STRG COL |
CK1, 2 (M99) |
2008-2013 |
02 |
