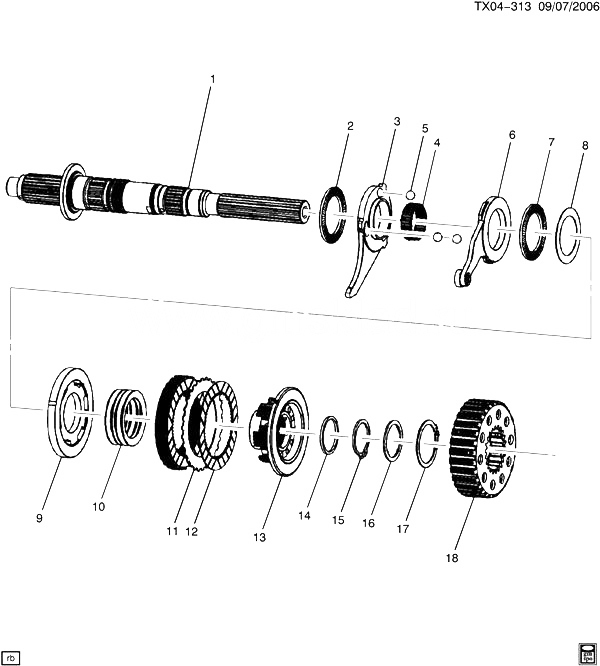

(TX04-313) 2008-2013 K1,2 РАЗДАТОЧНАЯ КОРОБКА (NQH) PART 3 CLUTCH COMPONENTS (MP 3023/3024) CADILLAC - ESCALADE HYBRID (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19178898 SHAFT, TRFER CASE RR OUTPUT K1 (M99, NQH) 2008-2013 01
002 19133063 BEARING, TRFER CASE CONT ACTR THR K1, 2 2008-2013 02
003 19257394 LEVER, TRFER CASE CONT (REPL T/W (1) 19168255 (3) 19168257 FOR M30/M70/M99/MYC) K1 (MYC, MYD, M30, M99, NQH) 2011-2013 01
004 19133064 BEARING, TRFER CASE CONT LVR K1, 2 2008-2013 01
006 19257393 LEVER, TRFER CASE CONT ACTR (REPL T/W (1)19168254 (3) 19168257 M30/M70/M99/MYC) K1 (NQH) 2007-2013 01
007 19133063 BEARING, TRFER CASE CONT ACTR THR K1, 2 2008-2013 02
008 19133072 WASHER, TRFER CASE CONT ACTR LVR K1 (M99, NQH) 2008-2013 01
009 19133073 PLATE, TRFER CASE FOUR WHL DRV CLU PRESS K1 (NQH) 2012-2013 01
010 19133074 SPRING, TRFER CASE FOUR WHL DRV CLU PRESS PLT K1 (NQH) 2007-2013 04
011 19133077 PLATE, TRFER CASE FOUR WHL DRV CLU PRESS (STEEL) K1, 2 (NQH) 2010-2013 07
012 19133076 PLATE, TRFER CASE FOUR WHL DRV CLU PRESS (FRICTION) K1 (NQH) 2007-2013 08
013 19133075 HUB, TRFER CASE FOUR WHL DRV CLU K1 (NQH) 2012-2013 01
014 19133078 SHIM, TRFER CASE FOUR WHL DRV CLU (57X49.75X2.2) K1 (NQH) 2007-2013 01
014 19133079 SHIM, TRFER CASE FOUR WHL DRV CLU (57X49.75X2.4) K1 (NQH) 2007-2013 01
014 19133080 SHIM, TRFER CASE FOUR WHL DRV CLU (57X49.75X2.6) K1 (NQH) 2007-2013 01
014 19133081 SHIM, TRFER CASE FOUR WHL DRV CLU (57X49.75X2.8) K1 (NQH) 2007-2013 01
014 19133082 SHIM, TRFER CASE FOUR WHL DRV CLU (57X49.75X3.0) K1 (NQH) 2007-2013 01
014 19133083 SHIM, TRFER CASE FOUR WHL DRV CLU (57X49.75X3.2) K1 (NQH) 2007-2013 01
014 19133084 SHIM, TRFER CASE FOUR WHL DRV CLU (57X49.75X3.4) K1 (NQH) 2007-2013 01
014 19133085 SHIM, TRFER CASE FOUR WHL DRV CLU (57X49.75X3.6) K1 (NQH) 2007-2013 01
014 19133086 SHIM, TRFER CASE FOUR WHL DRV CLU (57X49.75X3.8) K1 (NQH) 2007-2013 01
014 19133087 SHIM, TRFER CASE FOUR WHL DRV CLU (57X49.75X4.0) K1 (NQH) 2007-2013 01
014 19133088 SHIM, TRFER CASE FOUR WHL DRV CLU (57X49.75X4.2) K1 (NQH) 2007-2013 01
014 19133089 SHIM, TRFER CASE FOUR WHL DRV CLU (57X49.75X4.4) K1 (NQH) 2007-2013 01
014 19133090 SHIM, TRFER CASE FOUR WHL DRV CLU (57X49.75X4.6) K1 (NQH) 2007-2013 01
014 19133091 SHIM, TRFER CASE FOUR WHL DRV CLU (57X49.75X4.8) K1 (NQH) 2007-2013 01
015 19133092 RING, TRFER CASE TWO/FOUR WHL DRV CLU RET (ACDelco #19133092) K1 (NQH) 2007-2013 01
016 19133101 SPACER, TRFER CASE FRT OUTPUT SHF DRV SPKT (FRONT) K1 (NQH) 2007-2013 01
017 19133110 RING, TRFER CASE FOUR WHL DRV CLU HSG RET K1 (NQH) 2007-2013 01
018 19133109 HOUSING, TRFER CASE FOUR WHL DRV CLU K1, 2 (NQH) 2007-2013 01
