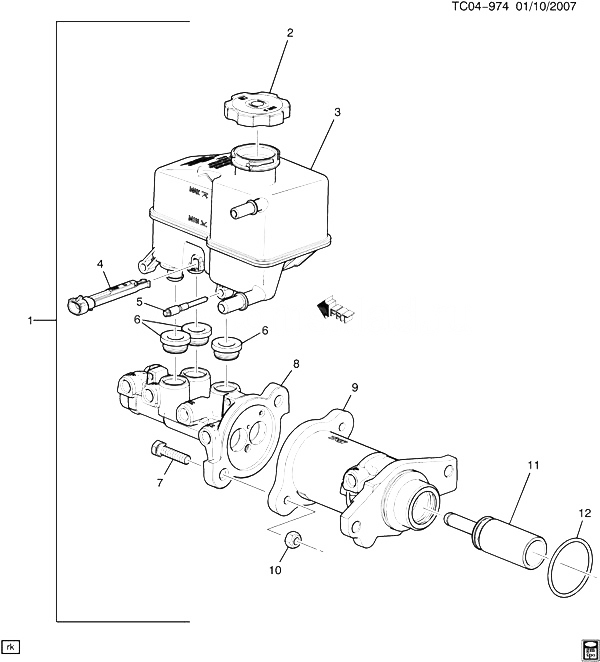

(TC04-974) 2008-2013 CK107(06) ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР (J92) CADILLAC - ESCALADE HYBRID (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20759706 CYLINDER, BRK MAS (INCLS 2-12) CK107 (06) (J92) 2008-2013 01
002 20760280 CAP, BRK M/CYL RSVR (PART OF 1) CK107 (06) (J92) 2008-2013 01
003 20759708 RESERVOIR KIT, BRK M/CYL (INCLS 4-6) (PART OF 1) CK107 (06) (J92) 2009-2013 01
004 25818508 SWITCH, BRK FLUID LVL IND (PART OF 1, 3) CK107 (06) (J92) 2008-2013 01
005 PIN, BRK M/CYL RSVR (PART OF 1, 3) 2008-2013
005 PIN, BRK M/CYL RSVR (PART OF 1, 3) 2009-2013
006 SEAL, BRK M/CYL RSVR (PART OF 1, 3) 2008-2013
006 SEAL, BRK M/CYL RSVR (PART OF 1, 3) 2009-2013
007 BOLT, BRK M/CYL (PART OF 1) 2008-2013
007 BOLT, BRK M/CYL (PART OF 1) 2009-2013
008 CYLINDER, BRK MAS (PART OF 1) 2008-2013
008 CYLINDER, BRK MAS (PART OF 1) 2009-2013
009 CYLINDER, BRK MAS (PART OF 1) 2008-2013
009 CYLINDER, BRK MAS (PART OF 1) 2009-2013
010 NUT, BRK M/CYL (PART OF 1) 2008-2013
010 NUT, BRK M/CYL (PART OF 1) 2009-2013
011 PISTON, BRK M/CYL PRIM (PART OF 1) 2008-2013
011 PISTON, BRK M/CYL PRIM (PART OF 1) 2009-2013
012 15879133 SEAL, BRK M/CYL (PART OF 1) (M/CYL TO ADAPTER SEAL) CK107 (06) (J92) 2008-2013 01
