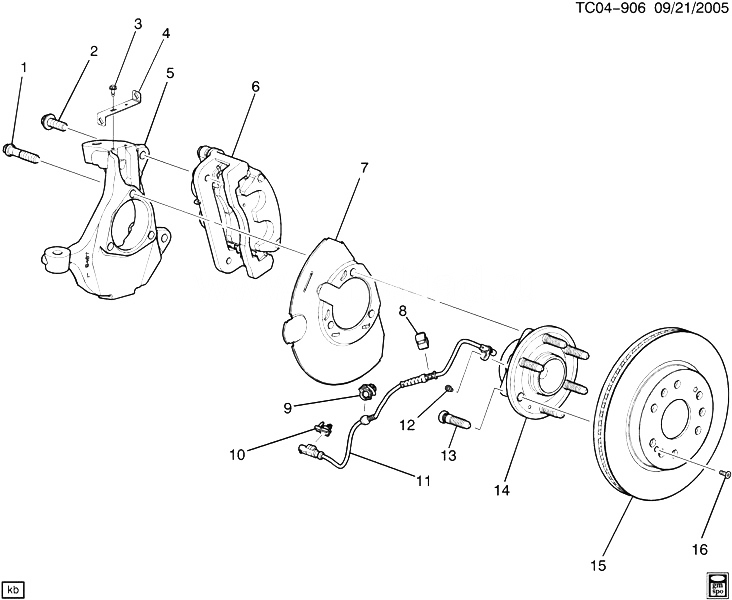

(TC04-906) 2009-2013 CK1(06) КРЕПЛЕНИЕ ТОРМОЗНОГО СУППОРТА И ПОВОРОТНЫЙ КУЛАК (EXC POLICE PACKAGE PPV) CADILLAC - ESCALADE HYBRID (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15719028 BOLT, FRT WHL BRG (M14X1.5X70) (6.104) CK1 2007-2013 06
002 11612265 BOLT, FRT BRK CLPR (-HFH, M14X2X45, 40 THD, 28 OD, 10.9 W/ADHESIVE) CK1 2012-2013 04
003 11561674 BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT WHL SPD SEN) 2007-2013 01
004 15133409 BRACKET, FRT WHL SPD SEN CK1 (JD9, JF3, JF7, JG4, J92) 2008-2013 02
005 15942237 KNUCKLE, STRG (MCHG) CK1 2007-2013 01
005 15942236 KNUCKLE, STRG (MCHG) CK1 2007-2013 01
006 CALIPER, FRT BRK (SEE GROUP 04.000 BRAKE CALIPER/FRONT FOR DETAILED ILLUSTRATED VIEW) 2009-2013
007 25918337 SHIELD, FRT BRK (ACDelco #25918337) K1 (JD9, JF3, JF7, J92, JL4) (EXC 1LR) 2010-2013 01
007 25918338 SHIELD, FRT BRK (ACDelco #25918338) K1 (JD9, JF3, JF7, J92, JL4) (EXC 1LR) 2010-2013 01
008 15715956 CLIP, WHL SPD SEN WIRE (PART OF 11, 14) (GRAY) (10.00MM) (HOLDS (1)10.5/9.5 GROMMET) (PRONG FITS 13.25/12.75X7.5 SLOT) CK1 2007-2013 02
009 15267361 CLIP, WHL SPD SEN WIRE (PART OF 11, 14) (CLAM SHELL WITHOUT ALIGNMENT PIN) CK1 2007-2013 02
010 15229013 CLIP, WHL SPD SEN WIRE (PART OF 11, 14) (SLIDE LOCK WITH ALIGNMENT PIN) CK1 2007-2013 02
011 22740468 SENSOR KIT, FRT WHL SPD (INCLS 8-10) (PART OF 14) (MATING CONN W/LEADS USE 19149296) (ACDelco #22740468) CK1 2012-2013 02
012 15960191 BOLT, WHL SPD SEN (PART OF 14) (M6X1X12) CK1, 2, 3 2007-2013 02
013 11588810 STUD, FRT WHL (PART OF 14) (M14X1.5X29) CK1 2007-2013 12
014 25918329 HUB, FRT WHL (W/WHL SPD SEN) (INCLS 8-13) (ACDelco #25918329) K1 (JD9, JF3, JF7, J92, JL4) (EXC 1LR) 2010-2013 02
014 25918329 HUB, FRT WHL (W/WHL SPD SEN) (INCLS 8-13) (ACDelco #25918329) K1 (JF3, JF7, J92, JL4, 1LR) (EXPORT) 2010-2013 02
015 25819670 ROTOR, FRT BRK (13IN) (ACDelco #177-1014) K1 (JD9, JF3, JF7, J92, JL4) (EXC 1LR) 2010-2013 02
015 25819670 ROTOR, FRT BRK (13IN) (ACDelco #177-1014) K1 (JF3, JF7, J92, JL4, 1LR) (EXPORT) 2010-2013 02
016 11609271 BOLT, FRT BRK ROT (M8 X 1.25 X 20) CK1 2007-2013 02
