| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

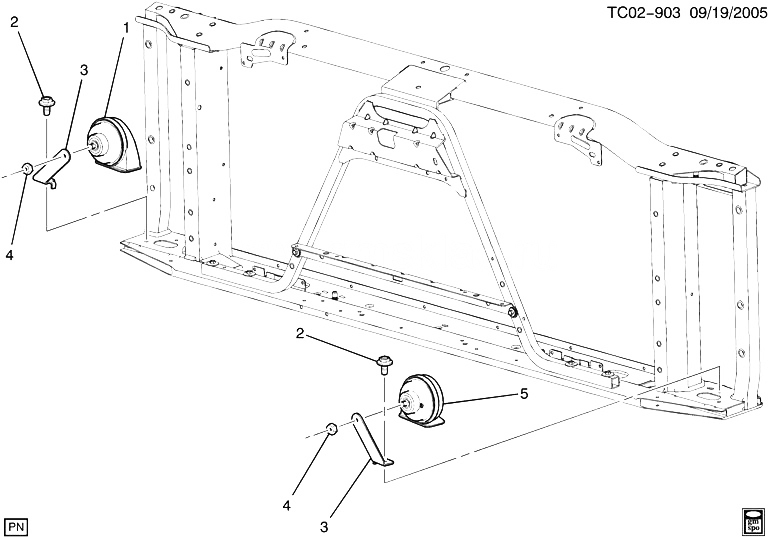

| 001 |
89046919 |
HORN KIT, GENERIC (HIGH NOTE) (INCLS 4) (MAY REQUIRE 19116451 WIRE ASM) (INCLUDES 485 HZ HORN, BRKT) (ACDelco #D1933E) |
CK1, 2, 3 (EXC CV2) |
2007-2013 |
01 |
| 001 |
19301083 |
HORN KIT, GENERIC (HIGH NOTE) (INCLS 4) (MAY REQUIRE 19116451 WIRE ASM) (INCLUDES 485 HZ HORN, BRKT) |
CK1, 2, 3 (CV2) (EXPORT) |
2007-2013 |
01 |
| 002 |
11589076 |
BOLT, HEX HD, W/CON WA, M6X1X15, 7.5 THD, 17 O.D., 6202M, GMW3044 (HORN) |
|
2007-2013 |
02 |
| 003 |
|
BRACKET, HORN |
|
2007-2013 |
|
| 004 |
|
NUT, HORN (PART OF 1, 5) |
|
2007-2013 |
|
| 005 |
89046918 |
HORN, 400 HZ (INCLS 4) (MAY REQUIRE 19116451 WIRE ASM) (INCLS 405 HZ HORN BRKT) (ACDelco #D1932E) |
CK1, 2 (06-36) (EXC CV2) |
2011-2013 |
01 |
| 005 |
19301082 |
HORN, 400 HZ (INCLS 4) (MAY REQUIRE 19116451 WIRE ASM) (INCLS 405 HZ HORN BRKT) |
CK1, 2 (06-36) (CV2) (EXPORT) |
2011-2013 |
01 |
