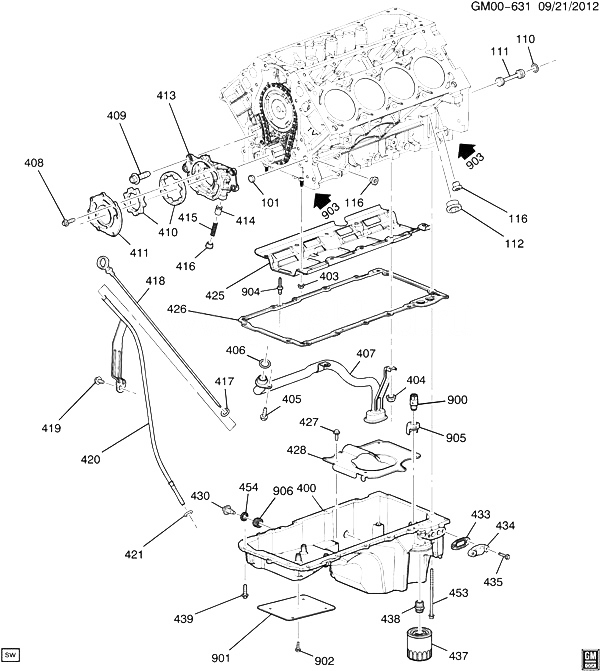

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 101 |
09427693 |
PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) |
|
2011-2013 |
01 |
| 110 |
|
SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) |
|
2011-2013 |
|
| 111 |
12573460 |
PLUG, ENG BLK OIL GAL (INCLS 110) (15.68MM DIA) (INCLS O-RING SEAL (N.S.S.) |
CK1 (L20, LZ1, L94) |
2011-2013 |
01 |
| 112 |
11609289 |
PLUG, HEX, M28X1.25X13, 10.9, GMW3044, INT DRIVER W/THD SEAL 9985 (ENG BLK OIL GAL) (8.971) |
|
2011-2013 |
01 |
| 116 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK OIL GAL) |
|
2011-2013 |
02 |
| 400 |
12640747 |
PAN, OIL (INCLS 426-428, 430, 433-435, 438, 439, 453, 454, 900-902, 905) (W/PRESSURE RELIEF VALVE DEFLECTOR) |
CK1 (LZ1, M99) |
2011-2013 |
01 |
| 403 |
11609746 |
NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (CR/SHF OIL DFL) |
|
2011-2013 |
08 |
| 404 |
11609746 |
NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (O/PMP SUC PIPE) |
|
2011-2013 |
02 |
| 405 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (O/PMP SUC PIPE) |
|
2011-2013 |
01 |
| 406 |
12584922 |
SEAL, O/PMP SUC PIPE (O RING) (PART OF 407) (ORANGE) (19.63MM I.D., 4.32MM THICKNESS) (TEFLON COATED) (1.724) |
CK1 (LZ1, L20, L94) |
2011-2013 |
01 |
| 407 |
12608579 |
SCREEN, O/PMP (W/SUC PIPE) (INCLS 406) |
CK1 (L20, LZ1, L94) |
2011-2013 |
01 |
| 408 |
11519133 |
BOLT, SELF TAP, M6X1X20, 13.2 O.D. (PART OF 413) |
|
2011-2013 |
07 |
| 409 |
11515758 |
BOLT, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (O/PMP) |
|
2011-2013 |
04 |
| 410 |
|
GEAR SET, O/PMP (PART OF 413) |
|
2011-2013 |
|
| 411 |
|
COVER, O/PMP (PART OF 413) |
|
2011-2013 |
|
| 413 |
12623423 |
PUMP, OIL (INCLS 408, 410, 411, 414-416) |
CK1 (LZ1, M99) |
2011-2013 |
01 |
| 414 |
|
VALVE, OIL PRESS RLF (PART OF 413) |
|
2011-2013 |
|
| 415 |
|
SPRING, OIL PRESS RLF VLV (PART OF 413) |
|
2011-2013 |
|
| 416 |
|
PLUG, OIL PRESS RLF VLV BORE (PART OF 413) |
|
2011-2013 |
|
| 417 |
24504031 |
SEAL, OIL LVL IND (O RING) (PART OF 418) (RED) |
CK1 (L20, LC9, LZ1, L94, L9H) |
2011-2013 |
01 |
| 418 |
12622055 |
INDICATOR, OIL LVL (INCLS 417) |
CK1 (L20, LZ1, L94) |
2011-2013 |
01 |
| 419 |
11588736 |
BOLT, HFH, M10X1.5X20, 10 THD, 22.3 O.D., 10.9, GMW3359 (OIL LVL IND TUBE) |
|
2011-2013 |
01 |
| 420 |
12609269 |
TUBE, OIL LVL IND (INCL SEAL) (INCLS 421) |
CK1 (L20, LZ1, L94) |
2011-2013 |
01 |
| 421 |
24504031 |
SEAL, OIL LVL IND TUBE (O RING) (PART OF 420) (RED) |
CK1 (LZ1, M99) |
2011-2013 |
01 |
| 425 |
12611129 |
DEFLECTOR, CR/SHF OIL |
CK1 (LZ1, L20, L94) |
2011-2013 |
01 |
| 426 |
12612350 |
GASKET, OIL PAN (PART OF 400) |
CK1 (LZ1, L20, L94) |
2011-2013 |
01 |
| 427 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PART OF 400) |
|
2011-2013 |
04 |
| 428 |
|
BAFFLE, OIL PAN (PART OF 400) |
|
2011-2013 |
|
| 430 |
11562588 |
PLUG, OIL PAN DRN (PART OF 400) (INCLS 454) (M12X1.75X25) (W/SEAL) (EXC MAGNET) |
CK1 (L20, LZ1, L94) |
2011-2013 |
01 |
| 433 |
12611384 |
GASKET, OIL PAN CVR (USE T/W 11588714 BOLT-QTY 2) (PART OF 400) |
CK1, 2 (LZ1, L94, L20) |
2011-2013 |
01 |
| 434 |
12577903 |
COVER, OIL PAN (PART OF 400) |
CK1 (L20, LZ1, L94) |
2011-2013 |
01 |
| 435 |
11588714 |
BOLT, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (PART OF 400) |
|
2011-2013 |
02 |
| 437 |
89017524 |
FILTER, OIL (W/O TOP MOUNTED FILTER BYPASS VALVE) (ACDelco #PF48) (DURAGUARD) |
CK1 (L20, LZ1, L94) |
2011-2013 |
01 |
| 438 |
12600225 |
FITTING, OIL FLTR (PART OF 400) |
CK1 (L20, LZ1, L94) |
2011-2013 |
01 |
| 439 |
11515758 |
BOLT, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (PART OF 400) |
|
2011-2013 |
13 |
| 453 |
12554990 |
BOLT, OIL PAN (PART OF 400) (M6X1.0X136) |
CK1 (L94, LZ1, L20) |
2011-2013 |
02 |
| 454 |
12616850 |
SEAL, OIL PAN DRN PLUG (O RING) (PART OF 400, 430) |
CK1 (L94, LZ1, L20) |
2011-2013 |
01 |
| 900 |
12608835 |
VALVE, OIL PRESS RLF (PART OF 400) |
CK1 (L20, LZ1, L94) |
2011-2013 |
01 |
| 901 |
12633653 |
DEADENER, OIL PAN (PART OF 400) |
CK1 (LZ1, M99) |
2011-2013 |
01 |
| 902 |
11589241 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PART OF 400) |
|
2011-2013 |
04 |
| 903 |
12346004 |
SEALANT, LOCTITE PIPE-W/TEFLON 50CC TUBE (OIL PAN) (ACDelco #10-2008) |
|
2011-2013 |
AR |
| 904 |
12558759 |
RIVET, OIL PAN GSKT |
CK1 (L20, LZ1, L94) |
2011-2013 |
02 |
| 905 |
12639759 |
DEFLECTOR, OIL PRESS RLF VLV (PART OF 400) |
CK1 (LMG, LC9, LZ1, L20) |
2011-2013 |
01 |
| 906 |
11503302 |
INSERT, OIL PAN DRN PLUG THD |
CK1 (LZ1, M99) |
2011-2013 |
01 |
