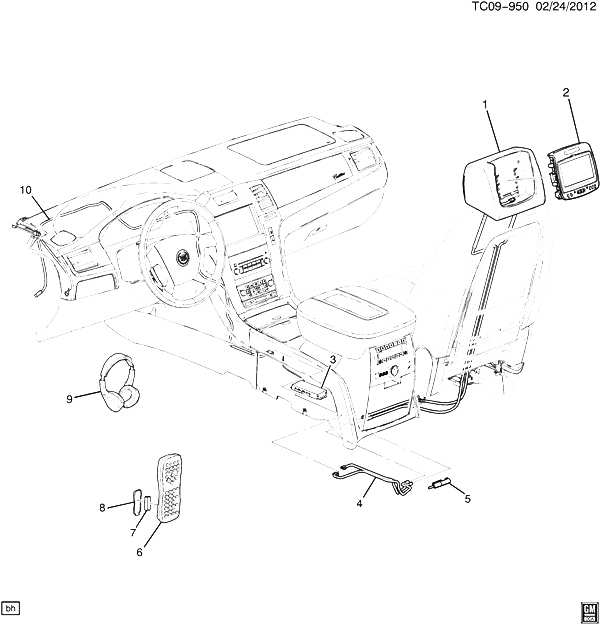

(TC09-950) 2008-2013 CK1(06) ENTERTAINMENT SYSTEM (CADILLAC Z75, PLATINUM EDITION ULT, HEADREST PLAYER AYE) CADILLAC - ESCALADE HYBRID (AWD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20807057 RESTRAINT, D/SEAT HD (COCOA) CK1 (06) (AYE, ULT, VFF, VFJ, VFM, Z75, 41I) 2010-2013 01
001 20807059 RESTRAINT, P/SEAT HD (COCOA) (INCLS CONNCTION CABLES) CK1 (06) (AYE, ULT, VFF, VFJ, VFM, Z75, 41I) 2010-2013 01
001 22785190 RESTRAINT, D/SEAT HD (EBONY) CK1 (06) (AYE, ULT, VFF, VFJ, VFM, Z75, 19I) 2012-2013 01
001 22785191 RESTRAINT, P/SEAT HD (EBONY) CK1 (06) (AYE, ULT, VFF, VFJ, VFM, Z75, 19I) 2012-2013 01
001 20998437 RESTRAINT, D/SEAT HD (NO OPENING FOR DVD PLAYER) (EBONY) CK1 (06) (AN3, AYE, HNE, ULT, Z75, 195) 2012-2013 01
001 20807057 RESTRAINT, P/SEAT HD (COCOA) CK1 (06) (AYE, ULT, VFF, Z75, 41I) 2012-2013 01
001 20807059 RESTRAINT, D/SEAT HD (COCOA) (INCLS CONNCTION CABLES) CK1 (06) (AYE, ULT, VFF, VFJ, Z75, 41I) 2011-2013 01
002 22840149 PLAYER PKG, VIDEO DISC (W/VIDEO DISPLAY) (ACDelco #22840149) CK1 (06) (AYE, ULT, VFF, Z75, 19I, 41I) 2012-2013 01
002 22840150 PLAYER PKG, VIDEO DISC (W/VIDEO DISPLAY) (ACDelco #22840150) CK1 (06) (AYE, ULT, VFF, Z75, 19I, 41I) 2012-2013 01
002 22840151 PLAYER PKG, VIDEO DISC (W/VIDEO DISPLAY) (ACDelco #22840151) CK1 (06) (AYE, ULT, VFJ, Z75, 19I, 41I) 2012-2013 01
002 22840152 PLAYER PKG, VIDEO DISC (W/VIDEO DISPLAY) (ACDelco #22840152) CK1 (06) (AYE, ULT, VFJ, Z75, 19I, 41I) 2012-2013 01
002 22840153 PLAYER PKG, VIDEO DISC (W/VIDEO DISPLAY) (ACDelco #22840153) CK1 (06) (AYE, ULT, VFM, Z75, 19I, 41I) 2012-2013 01
002 22840154 PLAYER PKG, VIDEO DISC (W/VIDEO DISPLAY) (ACDelco #22840154) CK1 (06) (AYE, ULT, VFM, Z75, 19I, 41I) 2012-2013 01
003 25865992 MODULE, AUDIO/VIDEO INTERFACE (ACDelco #25865992) CK1 (06) (AYE, ULT, Z75, 19I, 41I) 2012-2013 01
004 19159658 CABLE KIT, AUDIO VIDEO MDL (0.32 KGS) (INCLS CABLES 3A 3B USED TO CONN HD RESTS TO CTRL BOX) (0.029) CK1 (06) (AYE, ULT, Z75) 2008-2013 01
005 19245159 RETAINER, ACSRY WRG HARN (DVD H/RST CABLE) (9.680) CK1 (06) (AYE, ULT, Z75) 2011-2013 04
006 22863877 CONTROL, VIDEO REM (INCLS 8) CK1 (06) (AYE, ULT, Z75, 19I, 41I) 2012-2013 01
007 BATTERY PKG, (AAA BATTERIES) 2008-2013
008 COVER, VIDEO REM CTRL BAT (PART OF 6) 2008-2013
009 22754231 HEADPHONE, (3-4 CHANNEL) CK1 (06) (AYE, ULT, VFF, Z75, 19I, 41I) 2012-2013 02
009 22754231 HEADPHONE, (3-4 CHANNEL) CK1 (06) (AYE, ULT, VFM, Z75, 19I, 41I) 2012-2013 02
009 22754231 HEADPHONE, (3-4 CHANNEL) CK1 (06) (AYE, ULT, VFJ, Z75, 19I, 41I) 2012-2013 02
010 25865993 HARNESS, AUDIO PLYR WRG (ACDelco #25865993) CK1 (06) (AYE, ULT, Z75) 2008-2013 01
