| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|

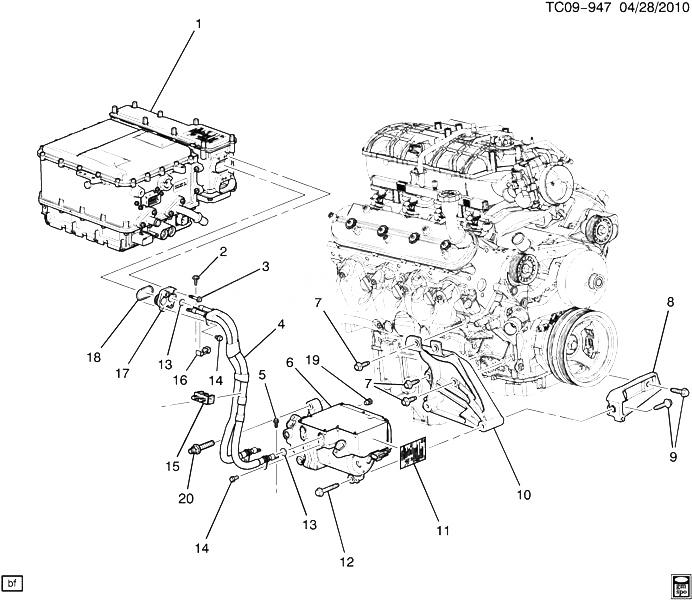

MODULE, DRV MOT GEN PWR INV (SEE GROUP 02.000 CONTROL MODULE ASM/DRIVE MOTOR FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 002 |
11588711 |
BOLT, HFH, M6X1X16, 10 THD, 14.2 OD, 8.8 STL, GMW3359 (PART OF 6) |
|
2008-2013 |
02 |
| 003 |
|
BOLT, A/C CMPR (300 V) CBL (PART OF 6) |
|
2010-2013 |
|
| 004 |
25932364 |
CABLE KIT, A/C CMPR (300 V) (PART OF 6) (INCLS 18) |
CK1 (LZ1, CJ2) |
2010-2013 |
01 |
| 005 |
11588711 |
BOLT, HFH, M6X1X16, 10 THD, 14.2 OD, 8.8 STL, GMW3359 (PART OF 6) |
|
2008-2013 |
01 |
| 006 |
25880380 |
COMPRESSOR KIT, A/C (INCLS 2-5, 11, 13, 14, 16-19) |
CK1 (LZ1, CJ2) |
2010-2013 |
01 |
| 007 |
11515767 |
BOLT, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (A/C CMPR BRKT) (T/W 12345493) |
|
2008-2013 |
03 |
| 008 |
12612834 |
BRACE, A/C CMPR BRKT |
CK1 (LZ1, CJ2, HP2) |
2010-2013 |
01 |
| 009 |
11518631 |
BOLT, HFH, M10X1.5X65, 26 THD, 22.3 OD, 10.9 STL, GMW3359 (A/C CMPR) |
|
2008-2013 |
03 |
| 010 |
12609916 |
BRACKET, A/C CMPR |
CK1 (LZ1, CJ2, HP2) |
2010-2013 |
01 |
| 011 |
|
LABEL, HIGH VOLTAGE WRNG (PART OF 6) |
|
2010-2013 |
|
| 012 |
11571051 |
BOLT, HFH, M10X1.5X45, 26 THD, 19 OD, 10.9, GMW3359 M-PT. (A/C CMPR BRKT BR) |
|
2008-2013 |
03 |
| 013 |
|
SEAL, A/C CMPR CBL BLOCK (O-RING) (PART OF 6) |
|
2010-2013 |
|
| 014 |
|
BOLT, A/C CMPR (300 V) CBL (PART OF 6) |
|
2010-2013 |
|
| 015 |
15753766 |
CLIP, A/C CMPR WRG HARN (1.540) |
CK1 (HP2) |
2008-2013 |
01 |
| 016 |
|
CLIP, A/C CMPR WRG HARN (PART OF 6) |
|
2010-2013 |
|
| 017 |
|
BRACKET, A/C CMPR CBL (PART OF 6) |
|
2010-2013 |
|
| 018 |
25880383 |
SEAL, A/C CMPR CBL BLOCK (O-RING) (PART OF 4, 6) |
CK1 (LZ1, CJ2) |
2010-2013 |
01 |
| 019 |
15208784 |
VALVE, A/C CMPR PRESS RLF (PART OF 6) (ACDelco #15-50421) |
CK1 (LZ1, CJ2) |
2010-2013 |
01 |
| 020 |
11609226 |
STUD, A/C CMPR (M10X1.5X14) (0.029) |
CK1 (LZ1) |
2010-2013 |
01 |
