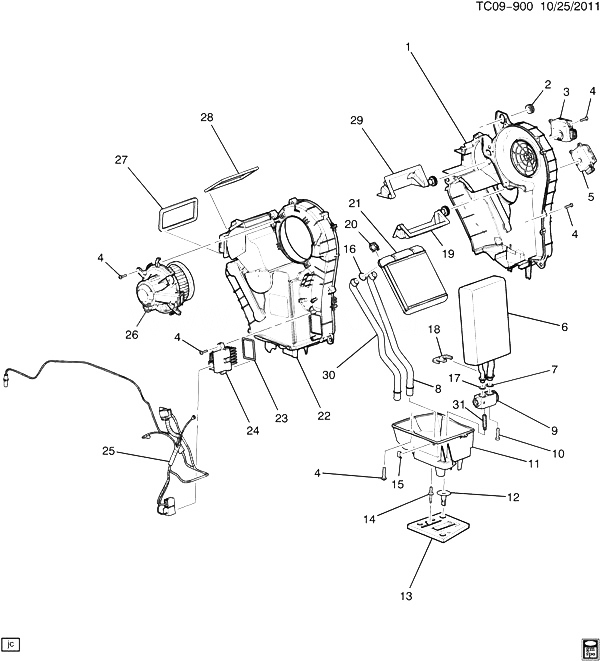

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15920869 |
CASE, AUX A/C EVPR BLO (OUTER) |
CK107 (06) (CJ2, CJ3, C69) |
2008-2013 |
01 |
| 002 |
15232221 |
BUSHING, A/C EVPR CASE |
CK107 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 003 |
15887322 |
ACTUATOR, MODE VLV (ACDelco #15-73644) |
CK107 (06) (CJ2, CJ3, C69) |
2009-2013 |
01 |
| 004 |
11562121 |
BOLT, AUX A/C EVPR BLO CASE |
CK107 (06) (CJ2, CJ3, C69) |
2007-2013 |
24 |
| 005 |
15887322 |
ACTUATOR, TEMP VLV (AUX) (ACDelco #15-73644) |
CK107 (06) (CJ2, CJ3, C69) |
2009-2013 |
01 |
| 006 |
20859526 |
EVAPORATOR, AUX A/C (ACDelco #15-63347) |
CK107 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 007 |
02724952 |
SEAL, AUX A/C EVPR OTLT TUBE (5/8) (CONTAINS 2 SEALS) (9.222) (ACDelco #15-30917) |
CK107 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 008 |
15892073 |
TUBE, HTR CORE (AUX) (INLET) (ACDelco #15892073) |
CK107 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 009 |
25994366 |
VALVE, AUX A/C EVPR THERMAL EXPN (ACDelco #15-51146) |
CK107 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 010 |
11562123 |
BOLT, A/C EVPR TXV (PAN HEAD, M5X35, 8.8 STL) |
CK107 (06) (CJ2, CJ3, C69) |
2007-2013 |
02 |
| 011 |
15232211 |
CASE, AUX A/C EVPR BLO LWR |
CK107 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 012 |
15189481 |
VALVE, AUX A/C EVPR BLO MDL DRN (ACDelco #15-5420) |
CK1, 2 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 013 |
15921035 |
SEAL, AUX HTR CASE (ACDelco #15-33736) |
CK107 (06) (CJ2, CJ3, C69) |
2008-2013 |
01 |
| 014 |
11562120 |
STUD, HTR A/C EVPR BLO MDL (STUD-FLANGE, M6X1X25) |
CK107 (06) (CJ2, CJ3, C69) |
2007-2013 |
02 |
| 015 |
11562122 |
CLIP, A/C EVPR CASE (11X6.35) (9.215) |
CK107 (06) (CJ2, CJ3, C69) |
2007-2013 |
09 |
| 016 |
15798231 |
SEAL, HTR INL OTLT PIPE (O-RING) |
CK107 (06) (CJ2, CJ3, C69) |
2007-2013 |
02 |
| 017 |
52474373 |
SEAL, AUX A/C EVPR INL TUBE (BLACK) (SLIMLINE WASHER) (19MM OD X 11MM ID, 1/2IN DIA) (SMOOTH-SIDED) (9.222) (ACDelco #15-31055) |
CK107 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 018 |
15892072 |
PLATE, A/C EVPR INL TUBE BRKT BKG |
CK107 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 019 |
15920866 |
VALVE, TEMP (ACDelco #15-50766) |
CK107 (06) (CJ2, CJ3, C69) |
2008-2013 |
01 |
| 020 |
22782134 |
CLIP, HTR CORE |
CK1, 2, 3 |
2007-2013 |
02 |
| 021 |
15232212 |
CORE, AUX HTR (ACDelco #15-63346) |
CK107 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 022 |
15920868 |
CASE, AUX A/C EVPR BLO |
CK107 (06) (CJ2, CJ3, C69) |
2008-2013 |
01 |
| 023 |
|
SEAL, AUX BLO CONT (PART OF 24) |
|
2007-2013 |
|
| 024 |
13501703 |
MODULE, BLO MOT CONT (INCLS 23) (9.169) (ACDelco #15-81638) |
CK107 (06) (CJ2, CJ3, C69) |
2009-2013 |
01 |
| 025 |
25811506 |
HARNESS, AUX HTR A/C WRG |
CK107 (06) (CJ2, CJ3, C69) |
2007-2012 |
01 |
| 026 |
15920865 |
MOTOR, AUX BLO (ACDelco #15-81062) |
CK107 (06) (CJ2, CJ3, C69) |
2008-2012 |
01 |
| 026 |
15920865 |
MOTOR, AUX BLO (8.855) (ACDelco #15-81062) |
CK107 (06) (CJ2, CJ3, C69) |
2008-2012 |
01 |
| 027 |
15920871 |
SEAL, AUX HTR AIR OTLT (ACDelco #15920871) |
CK107 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 028 |
15814847 |
SEAL, AUX A/C EVPR BLO MDL OTLT DUCT (ACDelco #15814847) |
CK107 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 029 |
15920867 |
VALVE, MODE (AUX) (ACDelco #15-50767) |
CK107 (06) (CJ2, CJ3, C69) |
2008-2013 |
01 |
| 030 |
15892074 |
TUBE, HTR CORE (AUX) (OUTLET) (ACDelco #15892074) |
CK107 (06) (CJ2, CJ3, C69) |
2007-2013 |
01 |
| 031 |
11609953 |
STUD, A/C EVPR TXV (M8X1.25X11.5, M8X1.25X24, 46 TL, STAINLESS) (3.275) |
CK107 (06) (CJ2, CJ3, C69) |
2007-2013 |
02 |
