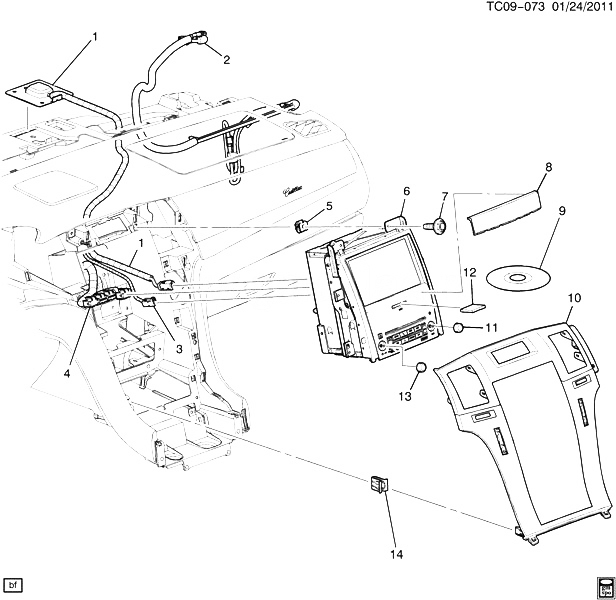

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15859569 |
ANTENNA, ELEK NAVIGATION (ACDelco #15859569) |
CK1 (GMQ) |
2011-2013 |
01 |
| 002 |
25865834 |
CABLE, TV, NAV, AMP, VEH LOC TRAF INFO INTERFACE (I/P) (ACDelco #25865834) |
K1 (UL2, VFJ) (EXPORT) |
2011-2013 |
01 |
| 003 |
22847989 |
CABLE, RDO ANT CBL EXTN RDO END (1021 MM) (ACDelco #22847989) |
CK1 (U84, Z75) |
2011-2013 |
01 |
| 004 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 005 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (I/P) (10.701) |
|
2011-2013 |
AR |
| 006 |
22873183 |
RADIO, AM/FM STEREO NAVN (INCLS 8, 11, 13) |
CK1 (CV3, GMQ) |
2012-2013 |
01 |
| 006 |
22873183 |
RADIO, AM/FM STEREO NAVN (INCLS 8, 11, 13) (9.650) |
CK1 (CV3, GMQ) |
2012-2013 |
01 |
| 006 |
22832457 |
RADIO, RECEIVER CONT NAV (INCLS 8, 11, 13) (ACDelco #22832457) |
CK1 (GMQ) (EXC FCN, UL2, UL8) |
2012-2013 |
01 |
| 006 |
20992771 |
RADIO, AM/FM STEREO NAVN (INCLS 8, 11, 13) (ACDelco #20992771) (LABELED 20992771) |
CK1 (GMQ, UL8) (EXPORT) |
2012-2012 |
01 |
| 006 |
20992771 |
RADIO, AM/FM STEREO NAVN (INCLS 8, 11, 13) (9.650) (ACDelco #20992771) (LABELED 20992771) |
CK1 (GMQ, UL8) (EXPORT) |
2012-2012 |
01 |
| 006 |
22873179 |
RADIO, AM/FM STEREO NAVN (INCLS 8, 11, 13) (ACDelco #22873179) (LABELED 22873179) |
CK1 (GMQ, UL8) (EXPORT) |
2012-2012 |
01 |
| 006 |
22873179 |
RADIO, AM/FM STEREO NAVN (INCLS 8, 11, 13) (9.650) (ACDelco #22873179) (LABELED 22873179) |
CK1 (GMQ, UL8) (EXPORT) |
2012-2012 |
01 |
| 006 |
22873181 |
RADIO, AM/FM STEREO NAVN (INCLS 8, 11, 13) (ACDelco #22873181) |
K1 (GMQ, UL2, VFJ, VFP) (EXPORT) |
2012-2012 |
01 |
| 006 |
22873181 |
RADIO, AM/FM STEREO NAVN (INCLS 8, 11, 13) (9.650) (ACDelco #22873181) |
K1 (GMQ, UL2, VFJ, VFP) (EXPORT) |
2012-2012 |
01 |
| 006 |
22832456 |
RADIO, AM/FM STEREO NAVN (INCLS 8, 11, 13) (ACDelco #22832456) |
K1 (FCN, GMQ) (EXPORT) |
2012-2013 |
01 |
| 006 |
22832456 |
RADIO, AM/FM STEREO NAVN (INCLS 8, 11, 13) (9.650) (ACDelco #22832456) |
K1 (FCN, GMQ) (EXPORT) |
2012-2013 |
01 |
| 006 |
22832457 |
RADIO, RECEIVER CONT NAV (INCLS 8, 11, 13) (ACDelco #22832457) |
CK1 (GMQ, UL2, VFK) (EXPORT) |
2012-2013 |
01 |
| 007 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO) (9.665) |
|
2011-2013 |
06 |
| 008 |
20955291 |
COVER, NAVN MAP INTERFACE MDL (EXTERNAL FLASH) RCPT OPG (PART OF 6) |
CK1 (GMQ) |
2011-2013 |
AR |
| 009 |
|
DISC, NAVN DATA (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR LATEST SERVICE INFORMATION) |
|
2011-2013 |
|
| 010 |
|
PLATE, I/P ACSRY CTR TR (INCLS 14) (SEE GROUP 16.000 INSTRUMENT PANEL/TRIM FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 011 |
|
KNOB, RDO TUNING CONT (PART OF 6) |
|
2011-2013 |
|
| 012 |
|
MODULE, NAVN MAP INTERFACE (EXTERNAL FLASH) (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR LATEST SERVICE INFORMATION) |
|
2011-2013 |
|
| 013 |
|
KNOB, RDO VOL CONT (PART OF 6) |
|
2011-2013 |
|
| 014 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 10) |
|
2011-2013 |
07 |
