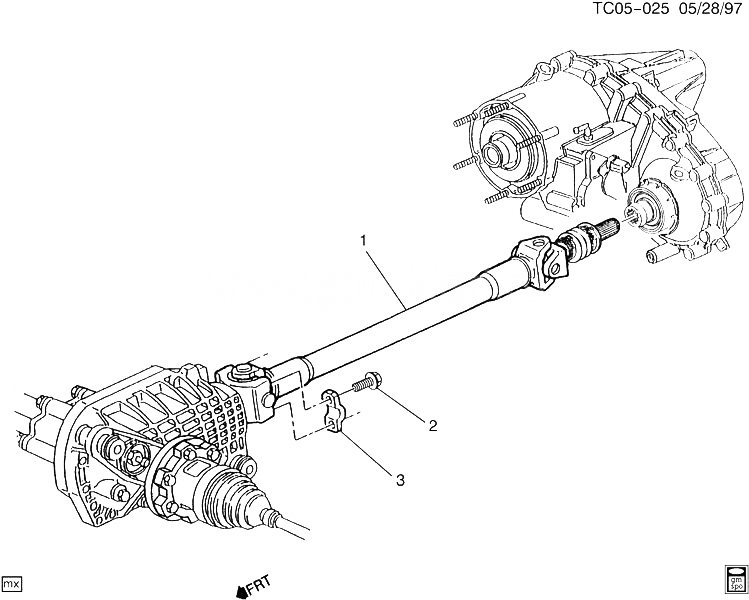

(TC05-025) 2007-2013 K1,2,3 КРЕПЛЕНИЕ КАРДАННОГО ВАЛА/ПЕРЕДНИЙ МОСТ CADILLAC - ESCALADE HYBRID (AWD) 2012
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | SHAFT, F/AXL PROP (SEE GROUP 05.000 PROP SHAFT/FRONT AXLE FOR DETAILED ILLUSTRATED VIEW) (FROM TRANSFER CASE) | 2007-2013 | |||
| 002 | 15734903 | BOLT, F/AXL PROP SHF (5/16-24X1.3) (HEX) | K1, 2, 3 | 2007-2013 | 04 |
| 003 | 07846740 | RETAINER, F/AXL PROP SHF (1 13/16 IN HOLE CTR) (USED W/1 1/8 IN BRG CAP, CUT-OFF CORNERS) | K1, 2, 3 | 2007-2013 | 02 |
