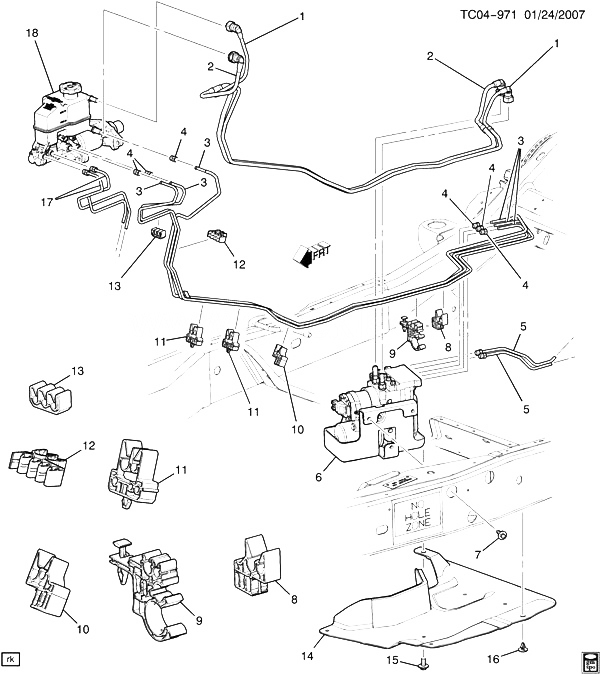

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15775166 |
HOSE, BRK M/CYL RSVR (RETURN TO RESERVOIR) |
CK107 (06) (J92) |
2008-2013 |
01 |
| 002 |
15775165 |
HOSE, BRK M/CYL RSVR (FEED FROM BPUgtPUMP) |
CK107 (06) (J92) |
2008-2013 |
01 |
| 003 |
88936298 |
PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (BRK) |
|
2008-2013 |
AR |
| 004 |
11562075 |
NUT, RR BRK FRT PIPE (M12X1.5X17) (INVERTED FLARE) |
CK1, 2, 3 |
2011-2013 |
01 |
| 005 |
|
PIPE, RR BRK FRT (SEE GEROUP 04.000 BRAKE LINES/INTERMEDIATE FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 006 |
|
MODULE, ELEK BRK CONT (W/BRKT HYD BOOS EMU ECU) (SEE GROUP 04.000 BRAKE CONTROL MODULE FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 007 |
11589407 |
BOLT, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (BRK PRESS MOD VLV BRKT) |
|
2008-2013 |
03 |
| 008 |
11570012 |
CLIP, FRT BRK PIPE (GRAY) (HOLDS (3)6.75, (1)9.53, (1)12.7 TUBES) (NYLON) |
CK107 (06) (J92) |
2008-2013 |
01 |
| 009 |
11570010 |
CLIP, FRT BRK PIPE (BLACK) (HOLDS (3)6.75, (1)5.0, (1)9.53, (1)12.7TUBES, (1)17 (1)33HARNESS) |
CK107 (06) (J92) |
2008-2013 |
01 |
| 010 |
11570013 |
CLIP, FRT BRK PIPE (BLACK) (HOLDS (3)6.75, (1)9.53, (1)12.7 TUBES) (NYLON) |
CK107 (06) (J92) |
2008-2013 |
01 |
| 011 |
11570009 |
CLIP, FRT BRK PIPE (BLACK) (HOLDS (1)12.7, (1)9.52, (3) 6.75 LINES) (CLIPS INTO 8 DIA HOLE) |
CK107 (06) (J92) |
2008-2013 |
02 |
| 012 |
11570011 |
CLIP, FRT BRK PIPE (BLACK) (HOLDS (4)6.75, (1)9.53, (1)12.7 TUBES) (NYLON) |
CK107 (06) (J92) |
2008-2013 |
01 |
| 013 |
15148643 |
CLIP, FRT BRK PIPE (BLACK) (20X39X15) (HOLDS (3)6.0 TO 6.35 DIA CABLES) (NYLON) |
CK107 (06) (J92) |
2010-2013 |
01 |
| 014 |
25984548 |
SHIELD, ELEK BRK CONT MDL SPH |
CK1 (06) (HP2) |
2009-2013 |
01 |
| 015 |
11518341 |
BOLT, HEX, M10X1.5X25, 14 THD, 28 OD, 6202M, 7114M, TAP, TR-PT (ELEK BRK CONT MDL SPH SHLD) |
|
2008-2013 |
03 |
| 016 |
11589295 |
RETAINER, PUSH-IN, FITS10.5 HOLE, 3-6.0 THK PNL, NYLON (ELEK BRK CONT RLY BRKT (PUSH ON)) |
|
2008-2013 |
03 |
| 017 |
|
PIPE, FRT BRK (SEE GROUP 04.000 BRAKE LINES/FRONT PART 2 FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 018 |
|
CYLINDER, BRK MAS (W/ BRK PED TRAV SEN PUSH ROD) (SEE GROUP 04.000 BRAKE MASTER CYLINDER FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
