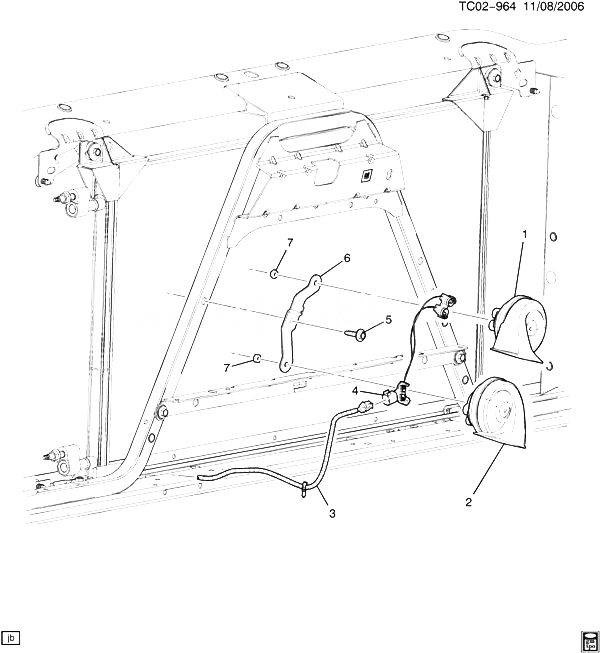

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HORN KIT, GENERIC (HIGH NOTE) (*KIT1) |
|
2008-2013 |
|
| 002 |
|
HORN KIT, GENERIC (LOW NOTE) (*KIT1) |
|
2008-2013 |
|
| 003 |
22908042 |
HARNESS, FWD LP WRG (LABELED 22908042) |
K1 (06) (LZ1, HP2, Z75) (EXC TR2, ULT) |
2012-2012 |
01 |
| 003 |
22908043 |
HARNESS, FWD LP WRG (LABELED 22908043) |
K1 (06) (LZ1, HP2, ULT, Z75) (EXC TR2) |
2012-2012 |
01 |
| 003 |
22908044 |
HARNESS, FWD LP WRG (LABELED 22908044) |
K1 (06) (LZ1, HP2, TR2, Z75) |
2012-2012 |
01 |
| 003 |
22808556 |
HARNESS, FWD LP WRG (LABELED 22808556 OR 22835113) |
K1 (06) (LZ1, HP2, Z75) (EXC TR2, ULT) |
2012-2012 |
01 |
| 003 |
22808557 |
HARNESS, FWD LP WRG (LABELED 22808557 OR 22835114) |
K1 (06) (LZ1, HP2, ULT, Z75) (EXC TR2) |
2012-2012 |
01 |
| 003 |
22835115 |
HARNESS, FWD LP WRG (LABELED 22835115) |
K1 (06) (LZ1, HP2, TR2, Z75) |
2012-2012 |
01 |
| 004 |
19116451 |
WIRE, HORN (PART OF 1, 2) (FOR CORRECT HORN PN USE VIN FILTER) (OR REMOVE CONNECTORS) (USE W/12368063-4 KITS 89046918-9 HORNS. MAY NEED TO SPLICE) |
K1, 2 (06) |
2011-2013 |
01 |
| 005 |
11610199 |
BOLT, HEX W/CON WA, M6X1X30, 21 THD, 17 OD, 8.8, GMW3359 (HORN) |
|
2007-2013 |
01 |
| 006 |
|
BRACKET, HORN (PART OF 1, 2) |
|
2007-2013 |
|
| 007 |
|
NUT, HORN BRKT (PART OF 1, 2) |
|
2007-2013 |
|
| K01 |
25866835 |
HORN, 400 500 HZ (INCLS 1, 2) (ACDelco #D1970F) |
K1 (UHT) |
2010-2013 |
01 |
| K01 |
25866835 |
HORN, 400 500 HZ (INCLS 1, 2) (ACDelco #D1970F) |
K1 (VD1) (EXC UHT) (EXPORT) |
2011-2013 |
01 |
