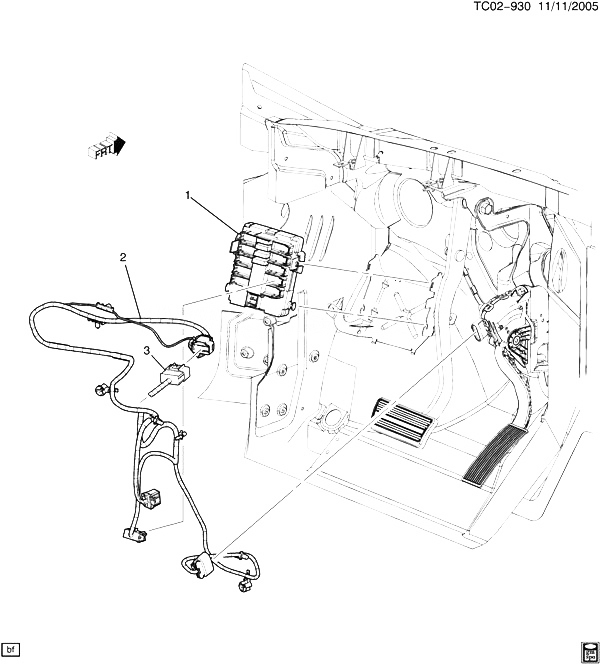

(TC02-930) 2007-2013 CK1,2(06-36) ЖГУТ ПРОВОДОВ/ПРИБОРНАЯ ПАНЕЛЬ FUSE BLOCK (EXC JF4,PPV,5W4,9L4) CADILLAC - ESCALADE HYBRID (AWD) 2012
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | BLOCK, BODY WRG HARN JUNC (SEE GROUP 02.000 BLOCK/I/P MID JUNCTION FOR DETAILED ILLUSTRATED VIEW) | 2007-2013 | |||
| 002 | 22822537 | HARNESS, FUSE BLK WRG | CK1, 2, 3 (MW7, MYC, MYD, M30, M99) (EXC PPV, 5W4, 9L4) | 2012-2012 | 01 |
| 003 | HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) | 2007-2013 |
