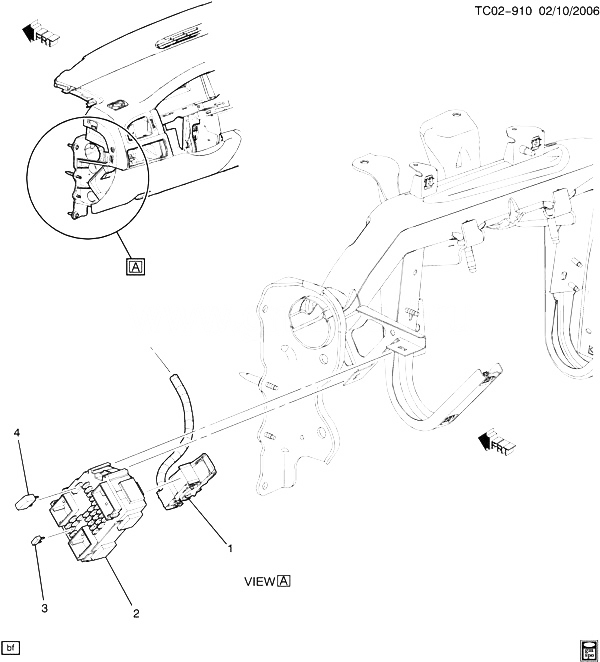

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 002 |
22925212 |
BLOCK, FUSE (INCLS 3, 4) |
CK1, 2 (06) |
2012-2013 |
01 |
| 003 |
12191645 |
FUSE, 2A, MINI, GRAY (PART OF 2) |
|
2007-2013 |
01 |
| 003 |
88909754 |
FUSE, 15A, MINI, BLUE (PART OF 2) (ACDelco #ATM15-25) |
|
2007-2013 |
10 |
| 003 |
88909756 |
FUSE, MINI (25 AMP) (CLEAR) (QTY 25 (PART OF 2) (ACDelco #ATM25-25) |
|
2007-2013 |
01 |
| 003 |
12092075 |
FUSE, 30A, MINI, GREEN (PART OF 2) (ACDelco #12092075) |
|
2007-2013 |
02 |
| 003 |
12092079 |
FUSE, 10A, MINI, RED (PART OF 2) |
|
2007-2013 |
05 |
| 003 |
88861352 |
FUSE, 20A, MINI, YELLOW (PART OF 2) (ACDelco #ATM20) |
|
2007-2013 |
03 |
| 004 |
19116527 |
BREAKER, CIRC (PART OF 2) (25 AMP MANUAL RESET) |
CK1, 2, 3 |
2007-2013 |
01 |
| 004 |
15319848 |
BREAKER, CIRC (PART OF 2) (50 AMP MAXI TYPE I) |
CK107 (06) (PPV, 5W4) |
2007-2013 |
03 |
