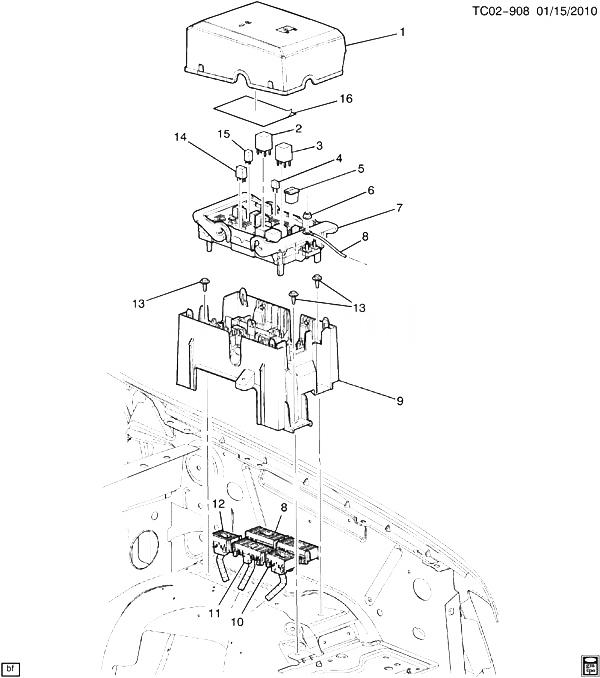

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25941374 |
COVER, ENG WRG HARN J/BLK (INCLS 16) (INCLS LABEL) |
CK1, 2, 3 |
2010-2013 |
01 |
| 002 |
15328865 |
RELAY, FAN CONT (PART OF 7) (BLACK) (5-TERM, SPDT 280 MINI, 35AMP) (DAESUNG) (ACDelco #D1724A) |
CK1, 2, 3 |
2007-2013 |
01 |
| 003 |
13502674 |
RELAY, FAN CONT (HYBRID) (PART OF 7) (5 TERMINAL) (BLACK) (5-TERM, 6.3 TERM, MINI ISO) (2.510) (ACDelco #13502674) |
CK1 (06-43) (LZ1, HP2) |
2010-2013 |
03 |
| 004 |
12191645 |
FUSE, 2A, MINI, GRAY (PART OF 7) |
|
2007-2013 |
01 |
| 004 |
88909753 |
FUSE, MINI, 10 AMP, RED (PART OF 7) |
|
2007-2013 |
19 |
| 004 |
88909754 |
FUSE, 15A, MINI, BLUE (PART OF 7) (ACDelco #ATM15-25) |
|
2007-2013 |
21 |
| 004 |
88909756 |
FUSE, MINI (25 AMP) (CLEAR) (QTY 25 (PART OF 7) (ACDelco #ATM25-25) |
|
2007-2013 |
02 |
| 004 |
12092075 |
FUSE, 30A, MINI, GREEN (PART OF 7) (ACDelco #12092075) |
|
2007-2013 |
06 |
| 004 |
88861352 |
FUSE, 20A, MINI, YELLOW (PART OF 7) (ACDelco #ATM20) |
|
2007-2013 |
07 |
| 005 |
15209748 |
FUSE, 40AMP, LOW PROFILE J CASE, GREEN (PART OF 7) |
|
2007-2013 |
06 |
| 005 |
15822417 |
FUSE, 30AMP, LOW PROFILE J CASE, PINK (PART OF 7) |
|
2007-2013 |
03 |
| 005 |
19115640 |
FUSE, 60AMP, LOW PROFILE J CASE, YELLOW (PART OF 7) |
|
2007-2013 |
04 |
| 006 |
11509226 |
NUT, HEX W/CON WA, M8X1.25, 7.5THK, 19 O.D., 9, ZN (CHAS RR WRG HARN J/BLK LEAD) |
|
2007-2013 |
01 |
| 007 |
22798217 |
BLOCK, ENG WRG HARN JUNC (INCLS 2-5, 14, 15) |
CK1 (06-36) (LC9, LMG, LZ1, L20, L94) |
2011-2013 |
01 |
| 008 |
|
HARNESS, CHAS WRG (SEE GROUP 02.000 WIRING HARNESS/CHASSIS FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 009 |
22817835 |
BRACKET, ENG WRG HARN FUSE BLK |
CK1, 2, 3 |
2007-2013 |
01 |
| 010 |
|
HARNESS, FWD LP WRG (SEE GROUP 02.000 WIRING HARNESS/FRONT LAMPS FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 011 |
|
HARNESS, ENG WRG (SEE GROUP 02.000 WIRING HARNESS/ENGINE FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 012 |
|
HARNESS, CHAS WRG (SEE GROUP 02.000 WIRING HARNESS/CHASIS FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 013 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (ENG WRG HARN FUSE BLK BRKT) |
|
2007-2013 |
03 |
| 014 |
12193606 |
RELAY, HDLP HIGH BEAM (PART OF 7) (BLUE) (4-TERMINAL) (SPST 280 MINI) (4.720) (ACDelco #12193606) |
CK1, 2, 3 |
2011-2012 |
01 |
| 014 |
12193606 |
RELAY, PARK LP (PART OF 7) (BLUE) (4-TERMINAL) (SPST 280 MINI) (4.720) (ACDelco #12193606) |
CK1, 2, 3 |
2010-2012 |
01 |
| 014 |
19116057 |
RELAY, HDLP HIGH BEAM (PART OF 7) (GRAY) (35AMP) (4-TERMINAL) (HIGH CURRENT MICRO RELAY) (2.483) (ACDelco #D1786C) |
CK1, 2, 3 |
2011-2012 |
01 |
| 014 |
19116057 |
RELAY, PARK LP (PART OF 7) (GRAY) (35AMP) (4-TERMINAL) (HIGH CURRENT MICRO RELAY) (2.483) (ACDelco #D1786C) |
CK1, 2, 3 |
2010-2012 |
01 |
| 015 |
12177236 |
RELAY, A/C CMPR (PART OF 7) (GRAY) (SPST 280 MINI) (4-WAY) (SQUARE CASE) (W/RESISTOR) (9.778) (ACDelco #D7065C) |
CK1, 2, 3 |
2010-2013 |
02 |
| 015 |
12193601 |
RELAY, A/C CMPR (PART OF 7) (BLACK) (USED W/CONNECTOR 15306045 W/O BRKTS 5-WAY MALE) (ACDelco #15-8719) |
CK1, 2, 3 |
2010-2013 |
01 |
| 016 |
25941375 |
LABEL, ENG WRG HARN ACSRY RLY FUSE IDENT (PART OF 1) |
CK1, 2, 3 |
2010-2013 |
01 |
