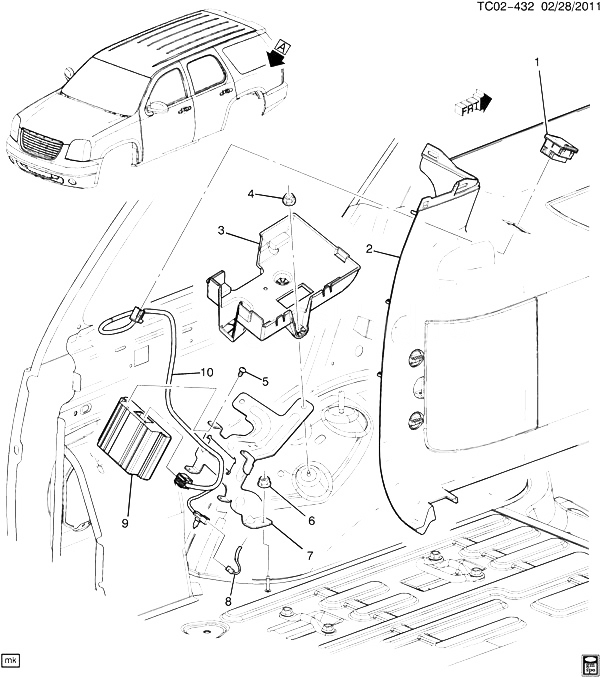

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 007 |
20938477 |
BRACKET, ACSRY AC DC PWR CONT MDL |
CK1 (KV1) |
2012-2013 |
01 |
| 008 |
|
HARNESS, BODY WRG (SEE GROUP 02.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) (INCLS 10) |
|
2012-2013 |
|
| 009 |
13577894 |
MODULE, ACSRY AC DC PWR CONT (SUB-COMPONENT OF 22758459. MODULE ONLY) (ACDelco #13577894) (LABELED 13577894) |
CK1 (KV1) |
2012-2012 |
01 |
| 010 |
|
HARNESS, ACSRY AC DC PWR CONT MDL WRG (PART OF 8) |
|
2012-2013 |
|
| 001 |
20919910 |
RECEPTACLE, ACSRY PWR (BLACK) (110V HIGH VOLTAGE PWR OTLT (HVPO)) |
CK107 (06) (HP2, X88, Z75, Z88) |
2012-2013 |
01 |
| 001 |
25774623 |
RECEPTACLE, ACSRY PWR (EBONY) (W/O COVER) (ACSRY PWR RECEPTACLE ASSEM LABELED 25774623) (12V) |
CK1 (06-36) (Z75) |
2012-2013 |
01 |
| 002 |
|
PANEL, BODY SI TR (SEE GROUP 16.000 TRIM/INTERIOR-BODY SIDE QUARTER DETAIL FOR DETAILED ILLUSTRATED VIEW) (EBONY) (INCLS LOW VOLTAGE PWR OUTLET 13332854) |
|
2012-2013 |
|
| 003 |
|
BRACKET, TIRE INFLR (SEE GROUP 05.000 ROAD WHEEL/INFLATOR KIT FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 004 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (TIRE INFLR STRP) |
|
2012-2013 |
03 |
| 005 |
|
BOLT, ACSRY AC DC PWR CONT MDL |
|
2012-2013 |
|
| 006 |
03530297 |
NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (ACSRY AC DC PWR CONT MDL) |
|
2012-2013 |
01 |
