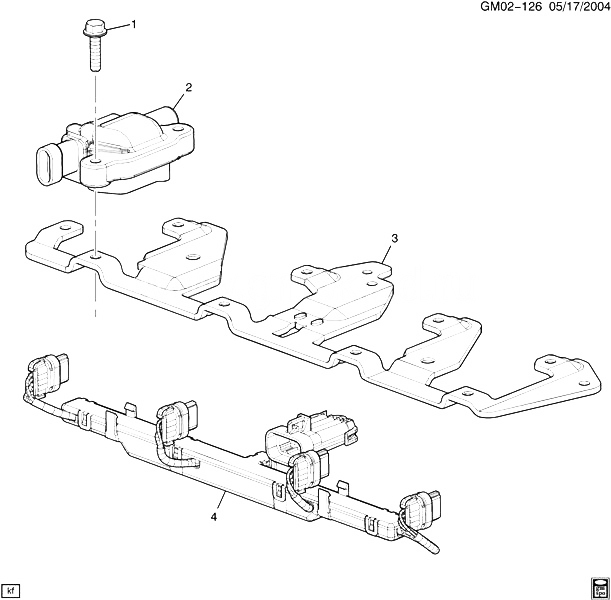

(GM02-126) 2012-2013 CK1 КАТУШКА И МОДУЛЬ ЗАЖИГАНИЯ (MELCO)(L20/4.8A,LMG/5.3-0,LC9/5.3-7,LZ1/6.0J,L94/6.2F) CADILLAC - ESCALADE HYBRID (AWD) 2012
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 11516424 | BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (IGN COIL) | 2007-2013 | 16 | |
| 002 | 12611424 | COIL, IGN (MELCO-MITSUBISHI) (W/SQUARE-SHAPED COILS AND MARKED 12570616) (MATING CONN W/LEADS USE 88987184) (ACDelco #D510C) | CK1 (LZ1) | 2010-2013 | 08 |
| 003 | 12580353 | BRACKET, IGN COIL (ACDelco #12580353) | CK1 (L94, L20, LZ1) | 2010-2013 | 01 |
| 004 | 12579355 | WIRE, IGN COIL (INCLS CONNS) (ACDelco #357A) | CK1 (LZ1, L94, L20) | 2010-2013 | 02 |
