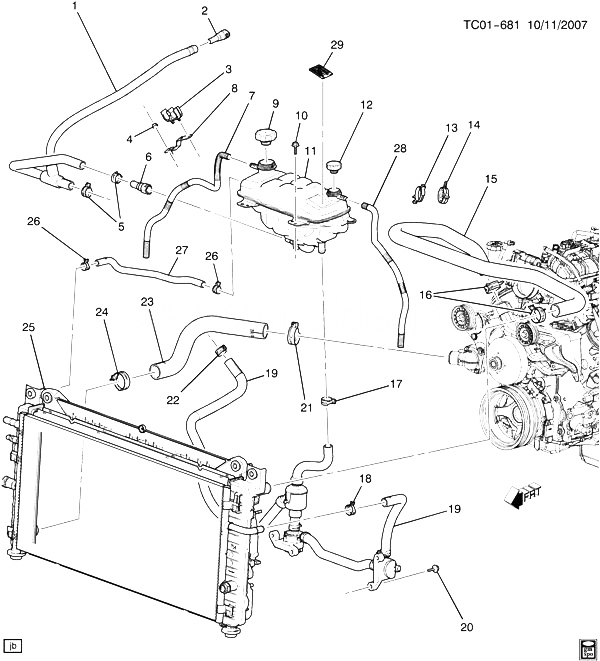

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25956572 |
HOSE, RAD SURGE TK OTLT (INCLS 2, 6) |
CK1 (LZ1) |
2010-2013 |
01 |
| 002 |
25956573 |
CONNECTOR, RAD SURGE TK OTLT HOSE (PART OF 1) |
CK1 (LZ1) |
2010-2013 |
01 |
| 003 |
15050765 |
CLIP, HTR HOSE (PART OF 8) (73.0MM WIDE) |
CK1, 2, 3 |
2008-2013 |
01 |
| 004 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HTR HOSE CLIP BRKT) |
|
2008-2013 |
01 |
| 005 |
11570616 |
CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (PCV OIL SEP HOSE) |
|
2008-2013 |
02 |
| 006 |
25956573 |
CONNECTOR, RAD SURGE TK OTLT HOSE (PART OF 1) |
CK1 (LZ1) |
2010-2013 |
01 |
| 007 |
25880382 |
HOSE, RAD SURGE TK OVFL |
CK1 (LZ1) |
2010-2013 |
02 |
| 008 |
15826978 |
BRACKET, HTR HOSE CLIP (INCLS 3) |
CK1 (LZ1) |
2010-2013 |
01 |
| 009 |
13502353 |
CAP, RAD SURGE TK |
CK1, 2, 3 |
2008-2013 |
01 |
| 010 |
22728347 |
BOLT, ENG COOL FAN SHRD |
CK1 |
2010-2013 |
AR |
| 011 |
22797287 |
TANK, RAD SURGE (ACDelco #22797287) |
CK1 (LZ1) |
2010-2013 |
01 |
| 012 |
15076936 |
CAP, GEN CONT MDL COOL TK (W/LABEL) |
CK1 (HP2) |
2008-2013 |
01 |
| 013 |
11570618 |
CLAMP, SPRINGBAND, 42 NOMINAL DIA, 20 THK, STL, ROBO (RAD INL HOSE) |
|
2008-2013 |
02 |
| 014 |
15041307 |
CLIP, RAD INL HOSE (3RD ONE FROM THERM HSG AT ENG RH SI) (BLACK) (FOR 37.1-44 DIA HOSE 12.8-15 DIA HOSEPRONG FOR 8.0 HOLE) (1.240) |
CK1 (LZ1) |
2012-2013 |
01 |
| 015 |
25880389 |
HOSE, RAD INL |
CK1 (LZ1) |
2010-2013 |
01 |
| 016 |
11570618 |
CLAMP, SPRINGBAND, 42 NOMINAL DIA, 20 THK, STL, ROBO (RAD INL HOSE) |
|
2008-2013 |
02 |
| 017 |
15012561 |
CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (PART OF 19) (8.948) |
|
2008-2013 |
01 |
| 018 |
15012561 |
CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (GEN CONT MDL COOL PMP HOSE) (8.948) |
|
2008-2013 |
02 |
| 019 |
|
PUMP, GEN CONT MDL COOL (INCLS 17) (SEE GROUP 01.000 RADIATOR HOSES, PART 2 FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 020 |
22728347 |
BOLT, ENG COOL FAN SHRD |
CK1 |
2010-2013 |
AR |
| 021 |
11562099 |
CLAMP, SPRINGBAND, NOMINAL DIA 49MM, 20 WIDTH, MATL 6298M, ROBO FINISH (PART OF 23) |
|
2008-2013 |
01 |
| 022 |
11570616 |
CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (GEN CONT MDL COOL TK HOSE) |
|
2008-2013 |
02 |
| 023 |
22827735 |
HOSE, RAD OTLT (INCLS 21, 24) |
CK1, 2, 3 (LC9, LMG, L20, L9H, LZ1, L94, LFT) |
2011-2013 |
01 |
| 024 |
11562099 |
CLAMP, SPRINGBAND, NOMINAL DIA 49MM, 20 WIDTH, MATL 6298M, ROBO FINISH (PART OF 23) |
|
2008-2013 |
01 |
| 025 |
|
RADIATOR, (SEE GROUP 01.000 RADIATOR ASM FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 026 |
15734741 |
CLAMP, SPRINGBAND, 20 NOMINAL DIA, 15 THK, GM6298M, GM6164M (RAD SURGE TK INL HOSE) |
|
2008-2013 |
02 |
| 027 |
22827732 |
HOSE, RAD SURGE TK INL |
CK1 (LZ1) |
2012-2013 |
01 |
| 028 |
25880382 |
HOSE, RAD SURGE TK OVFL |
CK1 (LZ1) |
2010-2013 |
01 |
| 029 |
25802205 |
LABEL, RAD SURGE TK CAUTION (DOMESTIC) |
CK1 (LZ1) |
2010-2013 |
01 |
| 029 |
20995992 |
LABEL, RAD SURGE TK CAUTION (EXPORT) |
CK1 (LZ1, CZ3) (EXPORT) |
2010-2013 |
01 |
