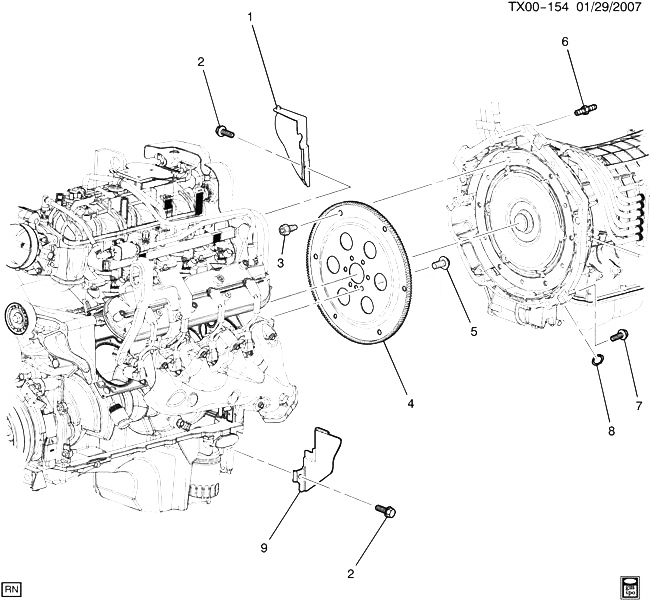

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
29545079 |
COVER, TRANS (ACDelco #29545079) |
CK1 (M99) |
2008-2013 |
01 |
| 002 |
12560226 |
BOLT, HEX W/FLAT WASH, M6.0X1.0X14.5, 13.5, 17 OD, 9.8, 7114M, MACH (TRANS CVR) |
|
2008-2013 |
02 |
| 003 |
11589040 |
BOLT, TRANS T/CV (M10X1.5X22) |
CK1, 2, 3 (MW7, M99) |
2008-2013 |
06 |
| 004 |
12597524 |
PLATE, A/TRNS FLEX |
CK1 (LZ1, M99) |
2010-2013 |
01 |
| 005 |
11569956 |
BOLT, A/TRNS FLEX PLT (M11X1.5X23.5 W/SEALER) |
CK1 (L20, LZ1, LMG, L94) |
2010-2013 |
06 |
| 006 |
11519797 |
STUD, TRANS (DOUBLE END, HFH, M8X1.25X20, M10X1.5X40, 18 OD, 69.5 TL9.8, GMW3359) |
CK1, 2, 3 (MYC, MYD, M30, M99) |
2009-2013 |
06 |
| 007 |
11515769 |
BOLT, HFH, M10X1.5X45, 25THD, 22.3OD, 10.9, 7114M, MACH RAISED SHOULDER (TRANS) |
|
2008-2013 |
02 |
| 008 |
24205899 |
PLUG, T/CV HSG ACC HOLE (28MM W/3 TANGS) (SMALL CVR) (ACDelco #24205899) |
CK1, 2, 3 (MW7, MYC, MYD, M30, M99) |
2009-2013 |
01 |
| 009 |
24261713 |
COVER, TRANS (ACDelco #24261713) |
CK1, 2, 3 |
2012-2013 |
01 |
