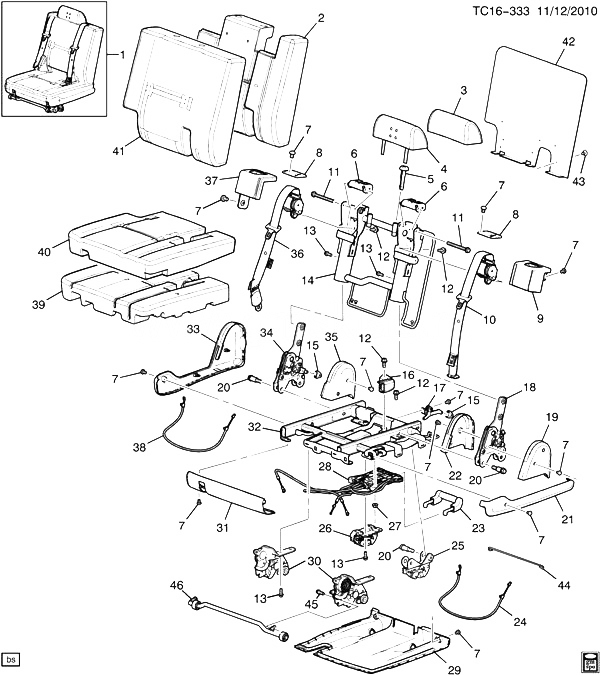

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22760806 |
SEAT, 3RD ROW (INCLS 2-46) (EBONY) |
CK1 (06) (AQY, AS3, Z75, 194) (EXC AX4) |
2007-2013 |
01 |
| 001 |
22760807 |
SEAT, 3RD ROW (INCLS 2-46) (CASHMERE) |
CK1 (06) (AQY, AS3, Z75, 394) (EXC AX4) |
2009-2013 |
01 |
| 001 |
22760812 |
SEAT, 3RD ROW (INCLS 2-46) (EBONY) |
CK1 (06) (AS3, Z75, 194) (EXC AQY, AX4) |
2007-2013 |
01 |
| 001 |
22760813 |
SEAT, 3RD ROW (INCLS 2-46) (CASHMERE) |
CK1 (06) (AS3, Z75, 394) (EXC AQY, AX4) |
2009-2013 |
01 |
| 001 |
22760815 |
SEAT, 3RD ROW (INCLS 2-46) (EBONY) |
CK1, 2 (06) (AQY, AS3, 19C) (EXC 5T5) |
2010-2013 |
01 |
| 001 |
22760816 |
SEAT, 3RD ROW (INCLS 2-46) (CASHMERE) |
CK1, 2 (06) (AQY, AS3, 33C) (EXC 5T5) |
2010-2013 |
01 |
| 001 |
22760821 |
SEAT, 3RD ROW (INCLS 2-46) (EBONY) |
CK1, 2 (06) (AS3, 19C) (EXC AQY, 5T5) |
2010-2013 |
01 |
| 001 |
22760822 |
SEAT, 3RD ROW (INCLS 2-46) (CASHMERE) |
CK1, 2 (06) (AS3, 33C) (EXC AQY) |
2010-2013 |
01 |
| 001 |
22760835 |
SEAT, 3RD ROW (INCLS 2-46) (EBONY) |
CK1, 2 (06) (AQY, AS3, 19V) |
2007-2013 |
01 |
| 001 |
22760835 |
SEAT, 3RD ROW (INCLS 2-46) (EBONY) |
CK1, 2 (06) (AQY, AS3, 19C, 5T5) |
2009-2013 |
01 |
| 001 |
22760843 |
SEAT, 3RD ROW (INCLS 2-46) (EBONY) |
CK1, 2 (06) (AS3, 19C, 5T5) (EXC AQY) |
2009-2013 |
01 |
| 001 |
22760843 |
SEAT, 3RD ROW (INCLS 2-46) (EBONY) |
CK1, 2 (06) (AS3, 19V) (EXC AQY) |
2007-2013 |
01 |
| 001 |
22760849 |
SEAT, 3RD ROW (INCLS 2-46) (COCOA) |
CK1 (06) (AS3, ULT, Z75, 415) (EXC AQY, AX4) |
2008-2013 |
01 |
| 001 |
22760853 |
SEAT, 3RD ROW (INCLS 2-46) (COCOA) |
CK1 (06) (AQY, AS3, ULT, Z75, 415) |
2009-2013 |
01 |
| 001 |
22760829 |
SEAT, 3RD ROW (INCLS 2-46) (COCOA) |
K1 (06) (AS3, AX4, ULT, Z75, 415) (EXPORT) |
2009-2013 |
01 |
| 001 |
22760886 |
SEAT, 3RD ROW (INCLS 2-46) (EBONY) |
CK107 (06) (AS3, AX4, Z75, 194) (EXPORT) |
2007-2013 |
01 |
| 001 |
22760887 |
SEAT, 3RD ROW (INCLS 2-46) (CASHMERE) |
CK107 (06) (AS3, AX4, Z75, 394) (EXPORT) |
2009-2013 |
01 |
| 002 |
15804529 |
PAD, 3RD ROW SEAT BK |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 003 |
|
COVER, R/SEAT H/RST (PART OF 4) |
|
2008-2013 |
|
| 004 |
15863451 |
RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) |
CK1, 2 (06) (AQY, AS3, 19D, 5T5) |
2007-2013 |
02 |
| 004 |
15863451 |
RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) |
CK1, 2 (06) (AQY, AS3, 5T5) |
2007-2013 |
02 |
| 004 |
15863451 |
RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) |
CK1, 2 (06) (AQY, AS3, 19V) |
2007-2013 |
02 |
| 004 |
15865842 |
RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) |
CK1, 2 (06) (AS3, 19V) (EXC AQY) |
2007-2013 |
02 |
| 004 |
15833506 |
RESTRAINT, R/SEAT HD (INCLS 3) (CASHMERE) |
CK1 (06) (AS3, Z75, 394) (EXC AQY) |
2009-2013 |
02 |
| 004 |
15833505 |
RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) |
CK1 (06) (AS3, Z75, 194) (EXC AQY) |
2007-2013 |
02 |
| 004 |
15863458 |
RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) |
CK1 (06) (AQY, AS3, Z75, 194) (EXC AX4) |
2007-2013 |
02 |
| 004 |
15863459 |
RESTRAINT, R/SEAT HD (INCLS 3) (CASHMERE) |
CK1 (06) (AQY, AS3, Z75, 394) |
2007-2013 |
02 |
| 004 |
20904837 |
RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) |
CK1, 2 (06) (AQY, AS3, 19C) (EXC 5T5) |
2010-2013 |
02 |
| 004 |
20904838 |
RESTRAINT, R/SEAT HD (INCLS 3) (CASHMERE) |
CK1, 2 (06) (AQY, AS3, 33C) (EXC 5T5) |
2010-2013 |
02 |
| 004 |
20904931 |
RESTRAINT, R/SEAT HD (INCLS 3) (CASHMERE) |
CK1, 2 (06) (AS3, 33C) (EXC AQY) |
2010-2013 |
02 |
| 004 |
15863452 |
RESTRAINT, R/SEAT HD (INCLS 3) (CASHMERE) |
CK1, 2 (06) (AQY, AS3, 333) |
2011-2013 |
02 |
| 004 |
15863452 |
RESTRAINT, R/SEAT HD (INCLS 3) (CASHMERE) |
CK1, 2 (06) (AQY, AS3, 336) |
2011-2013 |
02 |
| 004 |
15913991 |
RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) |
CK1, 2 (06) (AS3, 19C) (EXC AQY, 5T5) |
2010-2013 |
02 |
| 004 |
15827642 |
RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) |
CK107 (06) (AS3, AX4, Z75, 194) (EXPORT) |
2007-2013 |
02 |
| 005 |
15279353 |
GUIDE, 3RD ROW SEAT H/RST (TITANIUM) (W/O BUTTON) |
CK1, 2 (83I) |
2007-2013 |
02 |
| 005 |
25851751 |
GUIDE, 3RD ROW SEAT H/RST (COCOA) (W/O BUTTON) |
CK1 (41I) |
2008-2013 |
02 |
| 005 |
20912677 |
GUIDE, 3RD ROW SEAT H/RST (COCOA) (W/BUTTON) |
CK1 (06) (41I) |
2008-2013 |
02 |
| 005 |
20912675 |
GUIDE, 3RD ROW SEAT H/RST (CASHMERE) (W/BUTTON) |
CK1, 2 (33I, 39I) |
2007-2013 |
02 |
| 005 |
20912675 |
GUIDE, 3RD ROW SEAT H/RST (CASHMERE) (W/BUTTON) |
CK1, 2 (31I) |
2007-2011 |
02 |
| 005 |
20912676 |
GUIDE, 3RD ROW SEAT H/RST (TITANIUM) (W/BUTTON) |
CK1, 2, 3 (83I) |
2007-2013 |
02 |
| 005 |
20912676 |
GUIDE, 3RD ROW SEAT H/RST (TITANIUM) (W/BUTTON) |
CK1, 2 (06) (84I) |
2009-2011 |
02 |
| 005 |
15804525 |
GUIDE, 3RD ROW SEAT H/RST (EBONY) |
CK107 (06) (AS3, AX4, Z75, 194) (EXPORT) |
2007-2013 |
04 |
| 005 |
25943771 |
GUIDE, 3RD ROW SEAT H/RST (COCOA) |
K1 (06) (AS3, AX4, ULT, Z75, 415) (EXPORT) |
2009-2013 |
02 |
| 006 |
25869335 |
BRACKET, R/SEAT 3RD ROW BELT (RETR SI) |
CK1, 2 (06) (AS3) |
2007-2013 |
02 |
| 007 |
11570116 |
SCREW, PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT RSR FIN CVR) (8.913) |
|
2007-2013 |
AR |
| 008 |
|
BEZEL, R/SEAT BELT OPG (PART OF 10, 36) |
|
2008-2013 |
|
| 009 |
15827662 |
COVER, R/SEAT HGE FIN (OUTBOARD) |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 009 |
15827667 |
COVER, R/SEAT HGE FIN (INBOARD) |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 010 |
19207592 |
BELT KIT, R/SEAT #2 CTR (RETR SI) (INCLS 8) (CASHMERE) |
CK1 (06) (AS3, ULT, Z75, 415) (EXC AQY, AX4) |
2009-2012 |
01 |
| 010 |
19207593 |
BELT KIT, R/SEAT #2 CTR (RETR SI) (INCLS 8) (COCOA) |
CK1 (06) (AS3, ULT, Z75, 415) |
2008-2013 |
01 |
| 010 |
19207590 |
BELT KIT, R/SEAT #2 CTR (RETR SI) (INCLS 8) (CASHMERE) |
CK1, 2 (06) (AS3, 33I, 394, 397) |
2008-2013 |
01 |
| 010 |
19207591 |
BELT KIT, R/SEAT #2 CTR (RETR SI) (INCLS 8) (TITANIUM) |
CK1, 2 (06) (AS3, 83I) |
2008-2013 |
01 |
| 010 |
19207589 |
BELT KIT, R/SEAT #2 CTR (RETR SI) (INCLS 8) (EBONY) |
CK1, 2 (06) (AS3, 19I) |
2010-2013 |
01 |
| 010 |
19207590 |
BELT KIT, R/SEAT #2 CTR (RETR SI) (INCLS 8) (CASHMERE) |
CK1, 2 (06) (AS3, 31I) |
2008-2012 |
01 |
| 010 |
15898352 |
BELT, 3RD ROW CTR SEAT BELT (INCLS 8) (EBONY) |
CK107 (06) (AS3, AX4, Z75, 194) (RETR) (EXPORT) |
2008-2011 |
01 |
| 010 |
25906826 |
BELT, 3RD ROW CTR SEAT BELT (INCLS 8) (CASHMERE) |
CK107 (06) (AS3, AX4, Z75, 394) (EXPORT) |
2009-2011 |
01 |
| 010 |
25940416 |
BELT, 3RD ROW CTR SEAT BELT (INCLS 8) (COCOA) |
K1 (06) (AS3, AX4, ULT, Z75, 415) (EXPORT) |
2009-2011 |
01 |
| 010 |
15898352 |
BELT, 3RD ROW CTR SEAT BELT (INCLS 8) (EBONY) |
CK1, 2 (06) (AS3, AX4, KB6, ULT, 194, 195) (RETR) (EXPORT) |
2011-2011 |
01 |
| 011 |
11562382 |
BOLT, HFH, M10X1.5X130, 26 THD, 22.3 OD, 10.9, 7114M, MACH, MAT-PT (3RD ROW SEAT BK) |
|
2007-2013 |
AR |
| 012 |
11562383 |
BOLT, 3RD ROW SEAT BELT ANC (M12X1.75X30.5) (8.900) |
CK1, 2 (06) |
2010-2013 |
02 |
| 013 |
|
BOLT, R/SEAT BK FRM |
|
2007-2013 |
|
| 014 |
15898362 |
FRAME, 3RD ROW SEAT BK |
CK1, 2 (06) (AS3) |
2008-2013 |
01 |
| 014 |
25960399 |
FRAME, 3RD ROW SEAT BK |
K1 (06) (AQY, AS3, ULT, Z75) |
2009-2013 |
01 |
| 014 |
15898399 |
FRAME, 3RD ROW SEAT BK |
CK1 (06) (AS3, AX4) (EXPORT) |
2011-2013 |
01 |
| 015 |
20963262 |
KNOB, 3RD ROW SEAT BK LAT REL (EBONY) (OUTER) |
CK1, 2 (06) (AS3, 19I, 33I, 39I, 83I) |
2010-2013 |
01 |
| 015 |
20963265 |
KNOB, 3RD ROW SEAT BK LAT REL (EBONY) (INNER) |
CK1, 2 (06) (AS3, 19I, 33I, 39I, 83I) |
2011-2013 |
02 |
| 016 |
19180590 |
BELT KIT, R/SEAT #2 (BKL SI) (COCOA) |
CK1 (06) (AS3, ULT, Z75, 415) |
2008-2013 |
01 |
| 016 |
19152523 |
BELT KIT, R/SEAT #2 (BKL SI) (CASHMERE) (SINGLE BKL) |
CK1, 2 (06) (AS3, 33I, 39I) |
2008-2013 |
01 |
| 016 |
19152524 |
BELT KIT, R/SEAT #2 (BKL SI) (TITANIUM) (SINGLE BKL) |
CK1, 2 (06) (AS3, 83I) |
2008-2013 |
01 |
| 016 |
19152522 |
BELT KIT, R/SEAT #2 (BKL SI) (EBONY) (SINGLE BKL) |
CK1, 2 (06) (AS3, 19I) |
2010-2013 |
01 |
| 017 |
15832214 |
LEVER, R/SEAT RSR LAT REL |
CK1, 2 (06) (AS3) |
2007-2013 |
02 |
| 018 |
25913455 |
LATCH, 3RD ROW SEAT BK (CENTER) |
CK1, 2 (06) (AS3) |
2007-2012 |
01 |
| 019 |
15944449 |
COVER, 3RD ROW SEAT BK LAT (EBONY) (INBOARD, OUTER) |
CK1, 2 (06) (AS3, 19I) (EXC AQY) |
2007-2012 |
01 |
| 019 |
15944449 |
COVER, 3RD ROW SEAT BK LAT (EBONY) (INBOARD, OUTER) |
CK1, 2 (06) (AS3, 19I) (EXC AQY) |
2009-2012 |
01 |
| 019 |
15944450 |
COVER, 3RD ROW SEAT BK LAT (CASHMERE) (INBOARD, OUTER) |
CK1, 2 (06) (AS3, 33I, 39I) (EXC AQY) |
2007-2012 |
01 |
| 019 |
15804522 |
COVER, 3RD ROW SEAT BK LAT (TITANIUM) (INBOARD, OUTER) (16.716) |
CK1, 2 (06) (AS3, 83I) (EXC AQY) |
2007-2011 |
01 |
| 019 |
25858774 |
COVER, 3RD ROW SEAT BK LAT (COCOA) (INBOARD, OUTER) |
CK1 (06) (AS3, 41I) |
2008-2012 |
01 |
| 020 |
19127809 |
BOLT, 3RD ROW SEAT BK LAT (M12X1.75X63.9) (16.679) |
CK1, 2 (06) |
2007-2013 |
02 |
| 021 |
15822384 |
COVER, 3RD ROW SEAT BK HGE FIN (EBONY) |
CK1, 2 (06) (AS3, 19I) |
2007-2013 |
01 |
| 021 |
15822385 |
COVER, 3RD ROW SEAT BK HGE FIN (CASHMERE) |
CK1, 2 (06) (AS3, 33I, 39I) |
2007-2013 |
01 |
| 021 |
15822386 |
COVER, 3RD ROW SEAT BK HGE FIN (TITANIUM) |
CK1, 2 (06) (AS3, 83I) |
2007-2013 |
01 |
| 021 |
25858775 |
COVER, 3RD ROW SEAT BK HGE FIN (COCOA) |
CK1 (06) (AS3, 41I) |
2008-2013 |
01 |
| 022 |
15804515 |
COVER, 3RD ROW SEAT BK LAT (EBONY) (INBOARD, INNER) |
CK1, 2 (06) (AS3, 19I) |
2007-2012 |
01 |
| 022 |
15804516 |
COVER, 3RD ROW SEAT BK LAT (CASHMERE) (INBOARD, INNER) |
CK1, 2 (06) (AS3, 33I, 39I) |
2007-2012 |
01 |
| 022 |
15804517 |
COVER, 3RD ROW SEAT BK LAT (TITANIUM) (INBOARD, INNER) |
CK1, 2 (06) (AS3, 83I) |
2007-2012 |
01 |
| 022 |
25858773 |
COVER, 3RD ROW SEAT BK LAT (COCOA) (INBOARD, INNER) |
CK1 (06) (AS3, 41I) |
2008-2012 |
01 |
| 023 |
20963256 |
HANDLE, R/SEAT LAT REL (PART OF 28) (CASHMERE) |
CK1, 2 (06) (AS3, 33I, 39I) |
2011-2013 |
01 |
| 023 |
20963255 |
HANDLE, R/SEAT LAT REL (PART OF 28) (EBONY) |
CK1, 2 (06) (AS3, 19I) |
2011-2013 |
01 |
| 023 |
20963257 |
HANDLE, R/SEAT LAT REL (PART OF 28) (TITANIUM) |
CK1, 2 (06) (AS3, 83I) |
2011-2013 |
01 |
| 023 |
22906161 |
HANDLE, R/SEAT LAT REL (PART OF 28) |
CK1 (06) (AS3, ULT, Z75, 415) |
2010-2013 |
01 |
| 024 |
25913454 |
CABLE, 3RD ROW SEAT BK LAT |
CK1, 2 (06) (AS3) |
2009-2012 |
01 |
| 025 |
15924954 |
LATCH, 3RD ROW SEAT LOAD FLR (INBOARD REAR) |
CK1, 2 (06) (AS3) |
2008-2012 |
01 |
| 026 |
15804397 |
LATCH, 3RD ROW SEAT LOAD FLR (OUTBOARD REAR) |
CK1, 2 (06) (AS3) |
2007-2012 |
01 |
| 027 |
|
NUT, R/SEAT LAT |
|
2007-2013 |
|
| 028 |
20963267 |
CABLE, 3RD ROW SEAT BK LAT (INCLS 23) (EBONY) (50% MAIN CONTROL BOX) |
CK1, 2 (06) (AS3, 19I) |
2011-2012 |
02 |
| 028 |
20963268 |
CABLE, 3RD ROW SEAT BK LAT (CASHMERE) (50% MAIN CONTROL BOX) |
CK1, 2 (06) (AS3, 33I, 39I) |
2011-2012 |
02 |
| 028 |
20963269 |
CABLE, 3RD ROW SEAT BK LAT (INCLS 23) (TITANIUM) (50% MAIN CONTROL BOX) |
CK1, 2 (06) (AS3, 83I) |
2011-2012 |
02 |
| 028 |
20963270 |
CABLE, 3RD ROW SEAT BK LAT (INCLS 23) (COCOA) (50% MAIN CONTROL BOX) |
CK1 (06) (AS3, Z75, 415) |
2011-2012 |
02 |
| 029 |
15804474 |
COVER, 3RD ROW SEAT BK LAT (CASHMERE) (REAR CLOSEOUT) (16.716) |
CK1, 2 (06) (AS3, 33I, 39I) |
2009-2011 |
01 |
| 029 |
15804475 |
COVER, 3RD ROW SEAT BK LAT (TITANIUM) (REAR CLOSEOUT) (16.716) |
CK1, 2 (06) (AS3, 83I) |
2007-2011 |
01 |
| 029 |
22740564 |
COVER, 3RD ROW SEAT BK LAT (EBONY) |
CK1, 2 (06) (AS3, 19I) |
2011-2012 |
01 |
| 029 |
25858769 |
COVER, 3RD ROW SEAT BK LAT (COCOA) (REAR CLOSEOUT) |
CK1 (06) (AS3, 41I) |
2008-2011 |
01 |
| 030 |
15898402 |
LATCH, 3RD ROW SEAT LOAD FLR (INCLS 45, 46) (INCLS INBOARD AND OUTBOARD) |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 031 |
15804478 |
COVER, 3RD ROW SEAT BK LAT (EBONY) (FRONT CLOSEOUT) (16.716) |
CK1, 2 (06) (AS3, 19I) |
2007-2012 |
01 |
| 031 |
15804479 |
COVER, 3RD ROW SEAT BK LAT (CASHMERE) (FRONT CLOSEOUT) (16.716) |
CK1, 2 (06) (AS3, 33I, 39I) |
2007-2012 |
01 |
| 031 |
15804480 |
COVER, 3RD ROW SEAT BK LAT (TITANIUM) (FRONT CLOSEOUT) (16.716) |
CK1, 2 (06) (AS3, 83I) |
2007-2012 |
01 |
| 031 |
25858770 |
COVER, 3RD ROW SEAT BK LAT (COCOA) (FRONT CLOSEOUT) |
CK1 (06) (AS3, 41I) |
2008-2012 |
01 |
| 032 |
15926524 |
FRAME, 3RD ROW SEAT CUSH |
CK1, 2 (06) (AS3) |
2008-2013 |
01 |
| 033 |
15898407 |
COVER, 3RD ROW SEAT BK LAT (EBONY) (OUTBOARD, OUTER) |
CK1, 2 (06) (AS3, 19I) |
2007-2013 |
01 |
| 033 |
15898408 |
COVER, 3RD ROW SEAT BK LAT (CASHMERE) (OUTBOARD, OUTER) |
CK1, 2 (06) (AS3, 33I, 39I) |
2007-2013 |
01 |
| 033 |
15898409 |
COVER, 3RD ROW SEAT BK LAT (TITANIUM) (OUTBOARD, OUTER) (16.716) |
CK1, 2 (06) (AS3, 83I) |
2007-2013 |
01 |
| 033 |
25858772 |
COVER, 3RD ROW SEAT BK LAT (COCOA) (OUTBOARD, OUTER) |
CK1 (06) (AS3, 41I) |
2008-2013 |
01 |
| 034 |
25928521 |
LATCH, 3RD ROW SEAT BK |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 035 |
15804493 |
COVER, 3RD ROW SEAT BK LAT (EBONY) (OUTBOARD, INNER) (16.716) |
CK1, 2 (06) (AS3, 19I, 84I) |
2007-2012 |
01 |
| 035 |
15804494 |
COVER, 3RD ROW SEAT BK LAT (CASHMERE) (OUTBOARD, INNER) (16.716) |
CK1, 2 (06) (AS3, 33I, 39I) |
2007-2012 |
01 |
| 035 |
15804495 |
COVER, 3RD ROW SEAT BK LAT (TITANIUM) (OUTBOARD, INNER) (16.716) |
CK1, 2 (06) (AS3, 83I) |
2007-2012 |
01 |
| 035 |
25858771 |
COVER, 3RD ROW SEAT BK LAT (COCOA) (OUTBOARD, INNER) |
CK1 (06) (AS3, 41I) |
2008-2012 |
01 |
| 036 |
19207603 |
BELT KIT, R/SEAT #2 (RETR SI) (INCLS 8) (COCOA) |
K1 (06) (AS3, ULT, Z75, 415) |
2009-2013 |
01 |
| 036 |
19207600 |
BELT KIT, R/SEAT #2 (RETR SI) (INCLS 8) (CASHMERE) |
CK1, 2 (06) (AS3, 33I, 39I) |
2008-2013 |
01 |
| 036 |
19207601 |
BELT KIT, R/SEAT #2 (RETR SI) (INCLS 8) (TITANIUM) |
CK1, 2 (06) (AS3, 83I) |
2008-2013 |
01 |
| 036 |
19207599 |
BELT KIT, R/SEAT #2 (RETR SI) (INCLS 8) (EBONY) |
CK1, 2 (06) (AS3, 19I) |
2010-2013 |
01 |
| 036 |
25906825 |
BELT, R/SEAT #2 (RETR SI) (INCLS 8) (CASHMERE) |
CK107 (06) (AS3, AX4, Z75, 394) (EXPORT) |
2009-2013 |
01 |
| 036 |
25940415 |
BELT, R/SEAT #2 (RETR SI) (INCLS 8) (COCOA) |
K1 (06) (AS3, AX4, ULT, Z75, 415) (EXPORT) |
2009-2013 |
01 |
| 036 |
25869320 |
BELT, R/SEAT #2 (RETR SI) (INCLS 8) (EBONY) |
CK107 (06) (AS3, AX4, Z75, 194) (EXPORT) |
2008-2013 |
01 |
| 036 |
25869320 |
BELT, R/SEAT #2 (RETR SI) (INCLS 8) (EBONY) |
CK1, 2 (06) (AS3, AX4, Z75, ULT, 194, 195) (EXPORT) |
2011-2013 |
01 |
| 037 |
15827657 |
COVER, R/SEAT HGE FIN (OUTBOARD) |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 038 |
15804404 |
CABLE, 3RD ROW SEAT BK LAT (LOCK OUT) |
CK1, 2 (06) (AS3) |
2007-2012 |
01 |
| 039 |
15804533 |
PAD, 3RD ROW SEAT CUSH |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 040 |
25858737 |
COVER, 3RD ROW SEAT CUSH (COCOA) |
CK1 (06) (AS3, ULT, Z75, 415) |
2008-2013 |
01 |
| 040 |
25937625 |
COVER, 3RD ROW SEAT CUSH (EBONY) |
CK1, 2 (06) (AS3, KB6, 196) |
2009-2013 |
01 |
| 040 |
25937626 |
COVER, 3RD ROW SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AS3, KB6, 336) |
2009-2013 |
01 |
| 040 |
25937627 |
COVER, 3RD ROW SEAT CUSH (TITANIUM) |
CK1, 2 (06) (AS3, KB6, 836) |
2009-2013 |
01 |
| 040 |
20904822 |
COVER, 3RD ROW SEAT CUSH (EBONY) |
CK1, 2 (06) (AS3, 19C) (EXC 5T5) |
2010-2013 |
01 |
| 040 |
20904824 |
COVER, 3RD ROW SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AQY, AS3, 33C) (EXC 5T5) |
2010-2013 |
01 |
| 040 |
25928483 |
COVER, 3RD ROW SEAT CUSH (EBONY) |
CK1, 2 (06) (AS3, 19V) |
2007-2013 |
01 |
| 040 |
25928483 |
COVER, 3RD ROW SEAT CUSH (EBONY) |
CK1, 2 (06) (AS3, 193) |
2007-2013 |
01 |
| 040 |
25928483 |
COVER, 3RD ROW SEAT CUSH (EBONY) |
CK1, 2 (06) (AS3, 19C, 5T5) |
2009-2013 |
01 |
| 040 |
22751179 |
COVER, 3RD ROW SEAT CUSH (CASHMERE) |
CK1 (06) (AS3, Z75, 394) (EXC AX4) |
2011-2013 |
01 |
| 040 |
22751178 |
COVER, 3RD ROW SEAT CUSH (EBONY) |
CK1 (06) (AS3, Z75, 194) (EXC AX4) |
2007-2013 |
01 |
| 040 |
25928485 |
COVER, 3RD ROW SEAT CUSH (TITANIUM) |
CK1, 2 (06) (AS3, 833) |
2007-2013 |
01 |
| 040 |
25928484 |
COVER, 3RD ROW SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AS3, 333) |
2009-2013 |
01 |
| 041 |
15865797 |
COVER, 3RD ROW SEAT BK (EBONY) (W/CHILD SEAT BELT COMFORT GUIDE) (FOR 2ND DES SEE 22760759) |
CK1, 2 (06) (AS3, 19V) (1ST DES) |
2011-2011 |
01 |
| 041 |
15865797 |
COVER, 3RD ROW SEAT BK (EBONY) (W/CHILD SEAT BELT COMFORT GUIDE) (FOR 2ND DES SEE 22760759) |
CK1, 2 (06) (AS3, 19C, 5T5) (1ST DES) |
2011-2011 |
01 |
| 041 |
20859432 |
COVER, 3RD ROW SEAT BK (CASHMERE) (W/CHILD SEAT BELT COMFORT GUIDE) (FOR 2ND DES SEE 22760764) |
CK1 (06) (AS3, Z75, 394) (1ST DES) |
2011-2011 |
01 |
| 041 |
20904828 |
COVER, 3RD ROW SEAT BK (EBONY) (W/CHILD SEAT BELT COMFORT GUIDE) (FOR 2ND DES SEE 22760766) |
CK1, 2 (06) (AS3, 19C) (EXC 5T5) (1ST DES) |
2011-2011 |
01 |
| 041 |
20904830 |
COVER, 3RD ROW SEAT BK (CASHMERE) (W/CHILD SEAT BELT COMFORT GUIDE) (FOR 2ND DES SEE 22760767) |
CK1, 2 (06) (AS3, 33C) (EXC 5T5) (1ST DES) |
2011-2011 |
01 |
| 041 |
22760759 |
COVER, 3RD ROW SEAT BK (EBONY) (W/O CHILD SEAT BELT COMFORT GUIDE) (FOR 1ST DES SEE 15865797) |
CK1, 2 (06) (AS3, 19V) (2ND DES) |
2011-2011 |
01 |
| 041 |
22760759 |
COVER, 3RD ROW SEAT BK (EBONY) (W/O CHILD SEAT BELT COMFORT GUIDE) (FOR 1ST DES SEE 15865797) |
CK1, 2 (06) (AS3, 19C, 5T5) (2ND DES) |
2011-2011 |
01 |
| 041 |
22760763 |
COVER, 3RD ROW SEAT BK (EBONY) (W/O CHILD SEAT BELT COMFORT GUIDE) (FOR 1ST DES SEE 25928509) |
CK1 (06) (AS3, Z75, 194) (2ND DES) |
2011-2011 |
01 |
| 041 |
22760764 |
COVER, 3RD ROW SEAT BK (CASHMERE) (W/O CHILD SEAT BELT COMFORT GUIDE) (FOR 1ST DES SEE 20859432) |
CK1 (06) (AS3, Z75, 394) (2ND DES) |
2011-2011 |
01 |
| 041 |
22760766 |
COVER, 3RD ROW SEAT BK (EBONY) (W/O CHILD SEAT BELT COMFORT GUIDE) (FOR 1ST DES SEE 20904828) |
CK1, 2 (06) (AS3, 19C) (EXC 5T5) (2ND DES) |
2011-2011 |
01 |
| 041 |
22760767 |
COVER, 3RD ROW SEAT BK (CASHMERE) (W/O CHILD SEAT BELT COMFORT GUIDE) (FOR 1ST DES SEE 20904830) |
CK1, 2 (06) (AS3, 33C) (EXC 5T5) (2ND DES) |
2011-2011 |
01 |
| 041 |
22760788 |
COVER, 3RD ROW SEAT BK (COCOA) (W/O CHILD SEAT BELT COMFORT GUIDE) (FOR 1ST DES SEE 25858735) |
CK1 (06) (AS3, Z75, 415) (2ND DES) |
2011-2011 |
01 |
| 041 |
25858735 |
COVER, 3RD ROW SEAT BK (COCOA) (W/CHILD SEAT BELT COMFORT GUIDE) (FOR 2ND DES SEE 22760788) |
CK1 (06) (AS3, Z75, 415) (2ND DES) |
2011-2011 |
01 |
| 041 |
20859431 |
COVER, 3RD ROW SEAT BK (EBONY) (W/CHILD SEAT BELT COMFORT GUIDE) (FOR 2ND DES SEE 22760763) |
CK1 (06) (AS3, Z75, 194) (1ST DES) |
2011-2011 |
01 |
| 042 |
15924920 |
PANEL, R/SEAT BK FIL |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 043 |
25784336 |
RETAINER, R/SEAT BK OPG FIN CVR (PUSH IN) (16.720) |
CK1, 2 (06) (AS3) |
2007-2012 |
06 |
| 044 |
15924917 |
WIRE, R/SEAT CUSH BRDR |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 045 |
|
BOLT, R/SEAT BK LAT REL HDL (PART OF 30) |
|
2008-2013 |
|
| 046 |
25895133 |
BAR, R/SEAT HGE LINK TIE (PART OF 30) |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
