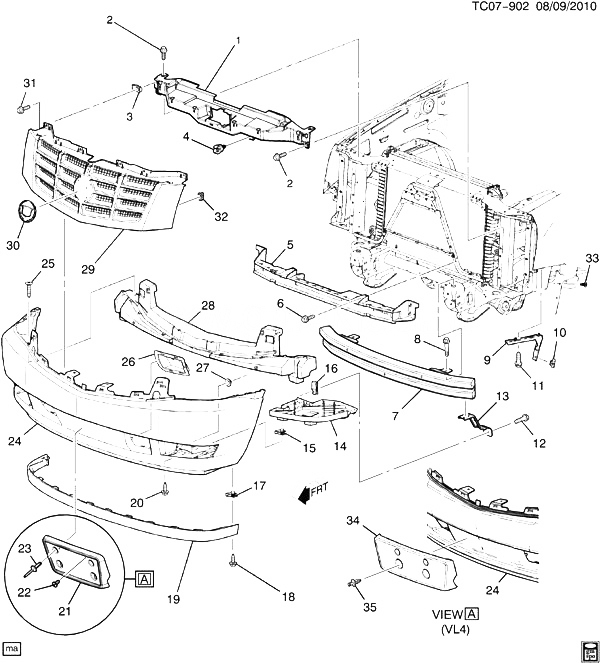

(TC07-902) 2009-2013 CK1(06) БАМПЕР ПЕРЕДНИЙ (CADILLAC Z75, PLATINUM EDITION ULT, HEADLAMP T84) CADILLAC - ESCALADE HYBRID (AWD) 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15904442 BRACKET, FRT GRL UPR (INCLS 3, 4) CK1 (Z75) 2009-2013 01
002 11610055 BOLT, HWASH, M6X1X23 (FRT GRL SUPT REINF) 2009-2013 08
003 11518121 NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 1) 2009-2013 08
004 22581725 CLIP, HOOD PRIM LAT REL CBL (PART OF 1) (7.0 MM DIA) (HOLDS (1) PIPE 4.76 TO 6.35) (3.145) CK1 (Z75) 2009-2013 01
005 22742861 BRACKET, FRT BPR FASCIA CK1, 2 (06-36) (X88, Z75) 2009-2011 01
006 11610055 BOLT, HWASH, M6X1X23 (FRT BPR FASCIA) 2009-2013 06
007 25947497 BAR, FRT BPR IMP (INCLS 13) (W/ AIR DAM BRACES) CK1 (06-36) (Z75) 2009-2011 01
008 11519154 BOLT, FRT BPR IMP BAR (M14X2X140) CK1, 2, 3 2009-2013 02
009 25948814 BRACKET, FRT BPR FASCIA SI (INCLS 10) CK1 (06-36) (Z75) 2009-2013 01
009 25948815 BRACKET, FRT BPR FASCIA SI (INCLS 10) CK1 (06-36) (Z75) 2009-2013 01
010 11518531 NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (PART OF 9) (10.512) 2009-2013 02
011 11589039 BOLT, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (FRT BPR FASCIA SI BRKT) 2009-2013 04
012 11589039 BOLT, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (FRT BPR LWR FASCIA) 2009-2013 02
013 25857237 BRACKET, FRT BPR LWR IMP BAR (PART OF 7) CK1 (06-36) 2009-2013 01
013 25857238 BRACKET, FRT BPR LWR IMP BAR (PART OF 7) CK1 (06-36) 2009-2013 01
014 10376177 FILLER, FRT BPR OTR FRT CK1 (06) (T84, Z75) (EXPORT) 2009-2013 01
014 10376178 FILLER, FRT BPR OTR FRT CK1 (06) (T84, Z75) (EXPORT) 2009-2013 01
015 11515638 NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (FRT BPR OTR FRT FIL) 2009-2013 08
016 11609385 NUT, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (FRT BPR LWR FASCIA) 2009-2013 02
017 11515638 NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (FRT OTR A/DFL) 2009-2013 02
018 11589015 BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (FRT OTR A/DFL) 2009-2013 02
019 15138234 DEFLECTOR, FRT AIR CK1 (06) (T84, Z75) (EXPORT) 2009-2013 01
020 11589015 BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (FRT BPR OTR FRT FIL) 2009-2013 08
021 25782363 BRACKET, FRT LIC PLT (PAINT TO MATCH) CK1 (06) (ULT, VK3, Z75) 2009-2011 01
022 09423101 SCREW, TAP, M6.3X1.81X16, 14.55 O.D., 7114M, PZ0R (FRT LIC PLT) 2009-2013 04
023 22579423 RIVET, FRT LIC PLT BRKT (5 X 25) (10.710) CK1 (06-36) (VK3, Z75) 2009-2013 04
024 25975452 FASCIA, FRT BPR (PAINT TO MATCH) CK1 (06) (ULT, VGD, Z75) 2009-2013 01
025 25705182 BOLT, FRT BPR FASCIA CTR SUPT (M9.5X6.0 HI-LO, TL 47MM, 22 OD) (12.249) CK1 (06-36) 2009-2013 AR
026 15893972 COVER, FRT TOW HOOK OPG CK1 (06-36) (Z75) 2009-2013 01
026 15893973 COVER, FRT TOW HOOK OPG CK1 (06-36) (Z75) 2009-2013 01
027 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (FRT FOG LP) 2009-2013 06
028 22920677 SUPPORT, FRT BPR FASCIA CK1 (06) (T84, Z75) (EXPORT) 2009-2011 01
029 GRILLE, FRT (SEE GROUP 01.000 GRILLE/RADIATOR FOR DETAILED ILLUSTRATED VIEW) 2009-2013
030 22860587 EMBLEM, FRT GRL (WREATH/CREAST) CK1 (06) (T84, Z75) (EXPORT) 2009-2013 01
031 11589039 BOLT, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (FRT BPR UPR FASCIA) 2009-2013 06
032 15078238 RETAINER, FRT GRL (BLACK) (25X15.5) (ALSO REPLACES SILVER) CK1 (06-36) 2009-2013 02
033 01605396 RETAINER, PUSH-IN, FITS .250 HOLE, .92 LG.700-OD NYLON BLACK (FRT BPR FASCIA OTR BRKT) 2009-2013 04
034 15140153 ATTACHMENT KIT, FRT LIC PLT (INCLS 35) CK1, 2 (06) (VL4, Z75) (EXPORT) 2009-2013 01
035 15993201 RETAINER, FRT LIC PLT BRKT (PART OF 34) (FOR 9.3MM DIA HOLE) (NYLON) (17.505) CK1, 2 (06) (VL4, Z75) (EXPORT) 2009-2013 04
