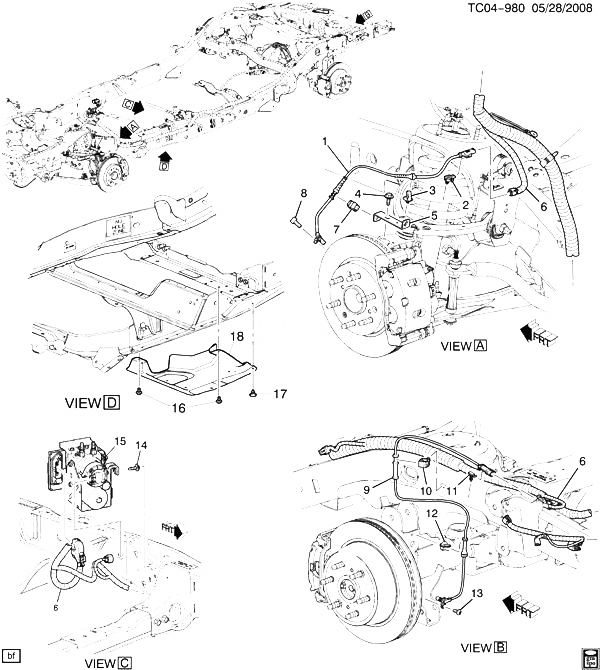

(TC04-980) 2008-2013 CK107(06) ЭЛЕКТРИЧЕСКАЯ СИСТЕМА ТОРМОЗОВ (J92) CADILLAC - ESCALADE HYBRID (AWD) 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22740468 SENSOR KIT, FRT WHL SPD (INCLS 2, 3, 7) (MATING CONN W/LEADS USE 19149296) (ACDelco #22740468) (FOR VEHICLES WITH RPO PPV-USE T/W THERMAL WRAP PN 19207924, BETWEEN WHEEL SPEED SENSOR HEAD AND FIRST CLIP.) CK1 2008-2011 02
002 15229013 CLIP, WHL SPD SEN WIRE (PART OF 1) (SLIDE LOCK WITH ALIGNMENT PIN) CK1 2008-2013 02
003 15267361 CLIP, WHL SPD SEN WIRE (PART OF 1) (CLAM SHELL WITHOUT ALIGNMENT PIN) CK1 2008-2013 02
004 11561674 BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT BRK HOSE) 2008-2013 02
005 15133409 BRACKET, FRT WHL SPD SEN CK1 (JD9, JF3, JF7, JG4, J92) 2008-2013 02
006 HARNESS, CHAS WRG (SEE GROUP 02.000 WIRING HARNESS/CHASSIS FOR DETAILED ILLUSTRATED VIEW) 2008-2013
007 15715956 CLIP, WHL SPD SEN WIRE (PART OF 1) (GRAY) (10.00MM) (HOLDS (1)10.5/9.5 GROMMET) (PRONG FITS 13.25/12.75X7.5 SLOT) CK1 2008-2013 02
008 15960191 BOLT, WHL SPD SEN (M6X1X12) CK1, 2, 3 2008-2013 02
009 20938122 SENSOR, RR WHL SPD (INCLS 10-12) (ACDelco #20938122) CK1 (06-36) 2008-2013 02
010 CLIP, RR WHL SPD SEN WIRE (PART OF 9) 2008-2013
011 CLIP, RR WHL SPD SEN WIRE (PART OF 9) 2008-2013
012 CLIP, RR WHL SPD SEN WIRE (PART OF 9) 2008-2013
013 11570519 SCREW, PAN HD, M6X1X13, 10 THD 12 OD, 9.8, PHOS OIL.W/ADH (RR WHL SPD SEN) 2008-2013 02
014 11589407 BOLT, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (BRK PRESS MOD VLV BRKT) 2008-2013 03
015 MODULE, ELEK BRK CONT (W/BRKT HYD BOOS EMU ECU) (SEE GROUP 04.000 BRAKE CONTROL MODULE FOR DETAILED ILLUSTRATED VIEW) 2008-2013
016 11518341 BOLT, HEX, M10X1.5X25, 14 THD, 28 OD, 6202M, 7114M, TAP, TR-PT (ELEK BRK CONT MDL SPH SHLD) 2008-2013 02
017 11589295 RETAINER, PUSH-IN, FITS10.5 HOLE, 3-6.0 THK PNL, NYLON (ELEK BRK CONT RLY BRKT (PUSH ON)) 2008-2013 03
018 25984548 SHIELD, ELEK BRK CONT MDL SPH CK1 (06) (HP2) 2009-2013 01
