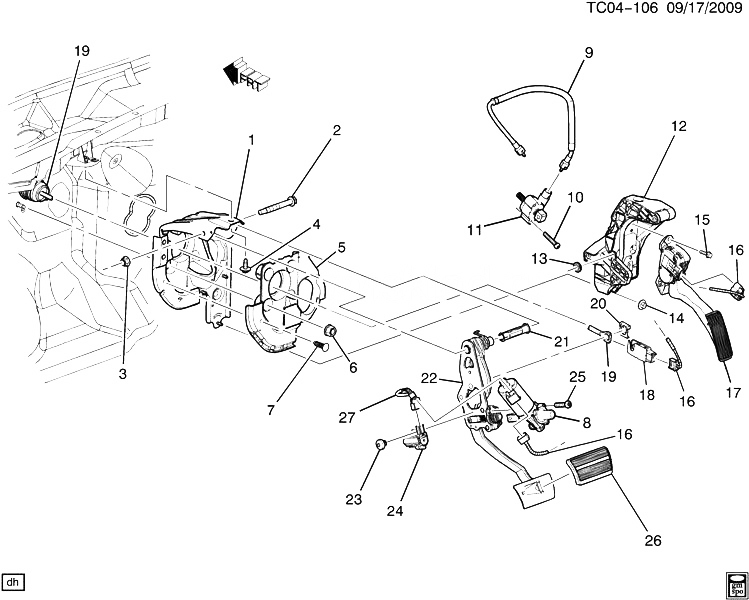

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25863989 |
BRACKET, BRK ACCEL PED (INCLS 5, 7) (LWR PLNM PNL) |
CK1 (AN3, JD9, JF3, JF7, JF4) |
2008-2011 |
01 |
| 002 |
15000145 |
BOLT, BRK PED PIV (12X1.75X120, 25) |
CK1, 2, 3 |
2008-2011 |
01 |
| 003 |
11514598 |
NUT, BRK PED PIV (M12X1.75X12, 26 OD) (8.915) |
CK1, 2, 3 |
2008-2011 |
01 |
| 004 |
11517182 |
BOLT, BRK PED BRKT (M10X1.5X30, 15 THD) (8.900) |
CK1, 2, 3 |
2008-2011 |
01 |
| 005 |
|
INSULATOR, DA PNL (PART OF 1) |
|
2010-2011 |
|
| 006 |
11517996 |
NUT, P/B BOOS (M10X1.5, 11.2THK) (21.5 OD) (8.917) (ACDelco #11517996) |
CK1, 2, 3 |
2008-2011 |
04 |
| 007 |
|
RETAINER, BRK ACCEL CLU PED BRKT INSL (PUSH IN) (PART OF 1) |
|
2010-2011 |
|
| 008 |
|
MOTOR, BRK ACCEL PED ADJR ACTR (PART OF 22) |
|
2010-2011 |
|
| 009 |
|
CABLE, BRK PED ADJR ACTR (PART OF 12) |
|
2010-2011 |
|
| 010 |
11562023 |
BOLT, ELEK THROT ACTR (PAN HEAD, M6X1X40, 15 THD, 12 OD, 10.9 STL, GM4277, HDR PT) (PART OF 12) |
CK1, 2, 3 |
2008-2011 |
02 |
| 011 |
15123616 |
ACTUATOR PKG, THROT (PART OF 12) |
CK1, 2, 3 (JF4) |
2008-2011 |
01 |
| 013 |
11505213 |
NUT, PUSH ON, M8, 1.96THK, 16.03 O.D., STL, PC (PART OF 12) |
|
2008-2011 |
02 |
| 014 |
15685170 |
NUT, HEX HD W/FL WA, M6X1, 5.5 THK, 9, 7111M, 2MM THK 19 OD WA, NYLOC (ACCEL PED LVR) (8.917) |
|
2008-2011 |
03 |
| 015 |
11516424 |
BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (ACCEL PED LVR) |
|
2008-2011 |
02 |
| 016 |
|
HARNESS, FUSE BLK WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2011 |
|
| 017 |
20972082 |
PEDAL, ACCEL (USE ON VEHICLES BUILT WITH 20972082 WHICH HAS GOLD CONNECTOR) (FOR 1ST DES SEE 25832864) |
CK1, 2, 3 (2ND DES) |
2011-2011 |
01 |
| 017 |
25832864 |
PEDAL, ACCEL (INCLS POSITION SENSOR) (MATING CONN W/LEADS USE 13584094) (USE ON VEHICLES BUILT WITH 25832864 WHICH HAS TIN CONNECTOR) (FOR 2ND DES SEE 20972082) |
CK1, 2, 3 (1ST DES) |
2011-2011 |
01 |
| 018 |
25981009 |
SWITCH, S/LP (ACDelco #D1539J) |
CK1 |
2010-2011 |
01 |
| 019 |
|
BOOSTER, P/B (SEE GROUP 04.000 BRAKE BOOSTER FOR DETAILED ILLUSTRATED VIEW) (MATING CONN W/LEADS USE 19149287.) (4.901) |
|
2008-2011 |
|
| 020 |
11569844 |
RETAINER, BRK PED PUSH ROD (WITH BOLT) |
CK1, 2, 3 |
2008-2011 |
01 |
| 023 |
11516424 |
BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (PART OF 22) |
|
2008-2011 |
02 |
| 024 |
25799118 |
SENSOR KIT, BRK PED POSN (PART OF 22) (ACDelco #25799118) |
CK1, 2, 3 |
2008-2011 |
01 |
| 025 |
|
BOLT, MOTOR (PART OF 22) |
|
2010-2011 |
|
| 026 |
88982976 |
PAD, BRK PED (PART OF 22) |
CK1 (JD9, JF3, JF4, JF7, J92) |
2008-2011 |
01 |
| 027 |
|
HARNESS, BRK PED POSN SEN (PART OF 22) |
|
2010-2011 |
|
