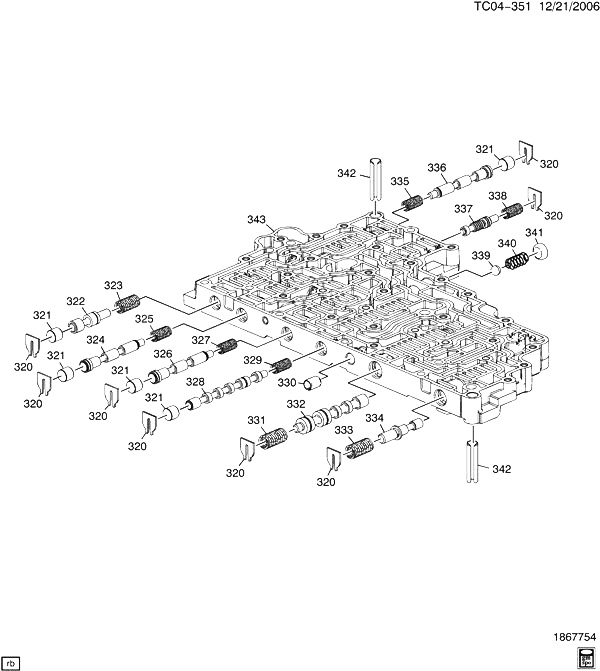

(TC04-351) 2008-2013 CK1 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (M99) PART 5 (TWO-MODE HYBRID) CONTROL VALVE UPPER BODY ASSEMBLY CADILLAC - ESCALADE HYBRID (AWD) 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
320 24224755 RETAINER, A/TRNS HYBRID LOW, 1-2 CLU BOOST VLV SPR (PART OF 343) CK1 (M99) 2008-2013 01
320 24224755 RETAINER, 1-3 CLU REG VLV BORE PLUG (PART OF 343) CK1 (M99) 2008-2013 01
320 24224755 RETAINER, HYBRID DIR, 2-3-4 CLU REG VLV BORE PLUG (PART OF 343) CK1 (M99) 2008-2013 01
320 24224755 RETAINER, HYBRID A/TRNS SHF SOL SPR (PART OF 343) CK1 (M99) 2008-2013 01
320 24224755 RETAINER, ACTR FEED LIM VLV SPR (PART OF 343) CK1 (M99) 2008-2013 01
320 24224755 RETAINER, A/TRNS TORQ DPNR CLU REG VLV BORE PLUG (PART OF 343) (4.265) CK1 (M99) 2008-2013 01
320 24224755 RETAINER, HYBRID LOW, 1-2 CLU REG VLV BORE PLUG (PART OF 343) K1 (M99) 2009-2013 01
321 24242814 PLUG, HYBRID LOW, 1-2 CLU REG VLV BORE (PART OF 343) (9.5 THK, 11.5 DIA) (ACDelco #24242814) CK1 (M99) 2008-2013 01
321 24242814 PLUG, 1-3 CLU REG VLV BORE (PART OF 343) (9.5 THK, 11.5 DIA) (ACDelco #24242814) CK1 (M99) 2008-2013 01
321 24242814 PLUG, HYBRID DIR, 2-3-4 CLU REG VLV BORE (PART OF 343) (9.5 THK, 11.5 DIA) (ACDelco #24242814) CK1 (M99) 2008-2013 01
321 24242814 PLUG, HYBRID A/TRNS SHF SOL VLV BORE (PART OF 343) (9.5 THK, 11.5 DIA) (ACDelco #24242814) CK1 (M99) 2008-2013 01
321 24242814 PLUG, A/TRNS TORQ DPNR CLU REG VLV BORE (PART OF 343) (9.5 THK, 11.5 DIA) (4.265) (ACDelco #24242814) CK1 (M99) 2008-2013 01
322 VALVE, A/TRNS TORQ DPNR CLU REG (PART OF 343) 2008-2013
323 SPRING, A/TRNS TORQ DPNR CLU REG VLV (PART OF 343) 2008-2013
324 VALVE, HYBRID LOW, 1-2 CLU REG (PART OF 343) 2008-2013
325 SPRING, HYBRID LOW, 1-2 CLU REG VLV (PART OF 343) 2008-2013
326 VALVE, HYBRID DIR-2-3-4 CLU REG (PART OF 343) 2008-2013
327 SPRING, HYBRID DIR, 2-3-4 CLU REG VLV (PART OF 343) 2008-2013
328 VALVE, SHFT SOL (MODE A) (PART OF 343) 2008-2013
329 SPRING, HYBRID A/TRNS SHF SOL (PART OF 343) 2008-2013
330 24224766 PIN, C/VLV BODY LOC (PART OF 343) (DIA.=10MM L=12.7) (ACDelco #24224766) CK1 (M99) 2008-2013 03
331 SPRING, HYBRID A/TRNS SHF SOL (PART OF 343) 2008-2013
332 VALVE, SHFT SOL (MODE B) (PART OF 343) 2008-2013
333 SPRING, ACTR FEED LIM VLV (PART OF 343) 2008-2013
334 VALVE, ACTR FEED LIM (PART OF 343) 2008-2013
335 SPRING, 1-3 CLU REG VLV (PART OF 343) 2008-2013
336 VALVE, 1-3 CLU REG (PART OF 343) 2008-2013
337 VALVE, A/TRNS HYBRID LOW, 1-2 CLU BOOST (PART OF 343) 2008-2013
338 SPRING, HYBRID LOW, 1-2 CLU BOOST VLV (PART OF 343) 2008-2013
339 00147500 VALVE, CLU PSTN EXH BLOWOFF BALL (PART OF 343) (ACDelco #00147500) CK1 (M99) 2008-2013 01
340 SPRING, CLU PSTN EXH BLOWOFF BALL VLV (PART OF 343) 2008-2013
341 09427692 PLUG, CLU PSTN EXH BLOWOFF BALL VLV (PART OF 343) (.573 O.D.) (ACDelco #9427692) CK1 (M99) 2008-2013 01
342 29543759 PIN, C/VLV BODY LOC (PART OF 343) CK1 (M99) 2008-2013 02
343 29544409 BODY, C/VLV UPR (INCLS 320-342) CK1 (M99) 2008-2013 01
