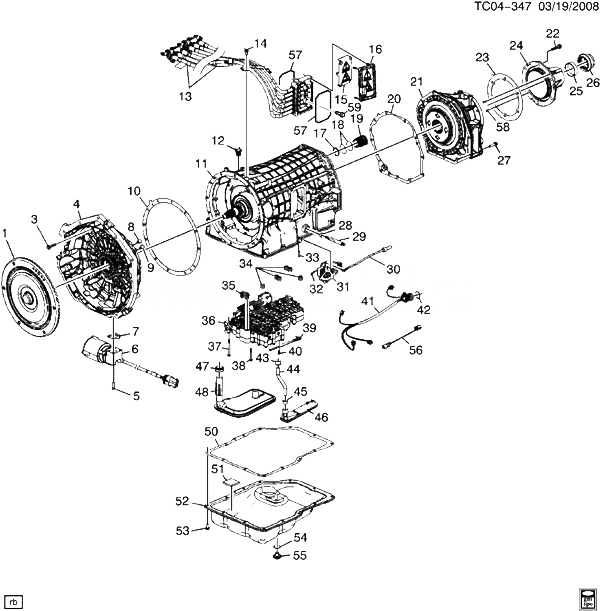

(TC04-347) 2008-2013 CK1 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (M99) PART 1 (TWO-MODE HYBRID) CASE AND ASSOCIATED PARTS CADILLAC - ESCALADE HYBRID (AWD) 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 24255786 DAMPENER, A/TRNS TORQ CK1 (M99) 2008-2013 01
003 29544332 BOLT, A/TRNS TORQ DPNR HSG CK1 (M99) 2008-2013 12
004 HOUSING, A/TRNS TORQ DPNR (W/FLUID PMP) (SEE GROUP 04.000 INPUT HOUSING MODULE AND PUMP ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) 2008-2013
005 29545091 BOLT, A/TRNS AUX FLUID PUMP CK1 (M99) 2008-2013 04
006 19207983 PUMP, A/TRNS AUX FLUID CK1 (M99) 2010-2013 01
007 29543727 GASKET, A/TRNS AUX FLUID PUMP (*KIT2) CK1 (M99) 2008-2013 01
008 PLUG, A/TRNS TORQ DPNR FLUID PASG 2008-2013
009 PLUG, A/TRNS FLUID PUMP VLV 2008-2013
010 29544401 GASKET, A/TRNS TORQ DPNR HSG (*KIT2) CK1 (M99) 2008-2013 01
011 CASE, A/TRNS (SEE GROUP 04.000 4TH CLUTCH ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) 2008-2013
012 01259475 SEAL, TRANS FLUID FIL TUBE (*KIT2) (ACDelco #1259475) CK1 (M30, M99) 2010-2013 01
013 24250325 CABLE, DRV MOT PWR INV MDL 3 PHASE (INCLS 15, 16, 59) (2.343) CK1 (M99) 2008-2013 01
014 29544413 BOLT, DRV MOT GEN PWR INV MDL CBL RET (DL CBL RET) CK1 (M99) 2008-2013 04
015 29544326 COVER, DRV MOT PWR INV MDL CBL TERM EXT BOLT PROTV (PART OF 13) CK1 (M99) 2008-2013 01
016 29544327 COVER, DRV MOT PWR INV MDL 3 PHASE CBL (PART OF 13) CK1 (M99) 2008-2013 01
017 SEAL, A/TRNS WRG CONN (PART OF 19) (*KIT2, KIT3) 2008-2013
018 SEAL, A/TRNS WRG CONN (O RING) (PART OF 19) (*KIT2, KIT3) 2008-2013
019 24239878 SLEEVE, A/TRNS ELEC CONN PASG (INCLS 17, 18) (ACDelco #24239878) CK1 (M99) 2008-2013 01
020 29544388 GASKET, A/TRNS RR CASE (*KIT2) CK1 (M99) 2008-2013 01
021 29547544 CASE, A/TRNS RR (INCLS 58) (SEE GROUP 04.000 REAR CASE ASSEMBLY COMPONENTS FOR DETAILED ILLUSTRATED VIEW) K1 (M99) 2008-2013 01
023 GASKET, A/TRNS CASE EXTN (*KIT2) K 2008-2013
024 EXTENSION, A/TRNS CASE (INCLS 25, 26) K 2008-2013
025 BUSHING, OUTPUT SHF (PART OF 24) 2008-2013
026 SEAL, OUTPUT SHF (PART OF 24) (*KIT2) K 2008-2013
027 29544331 BOLT, TRANS RR CASE (0.683) CK1 (M99) 2008-2013 12
028 24235861 SEAL, MAN SHFT SHF (*KIT2) (ACDelco #24235861) CK1 (M99) 2008-2013 01
029 29546640 SHAFT, MAN SHFT CK1 (M99) 2009-2013 01
030 29543655 ACTUATOR, PARK PAWL CK1 (M99) 2008-2013 01
031 19181161 SWITCH KIT, A/TRNS MAN SHFT SHF POSN (INCLS 32, 33) CK1 (M99) 2008-2013 01
032 BOLT, A/TRNS MAN SHFT SHF POSN SW (PART OF 31) 2008-2013
033 PIN, MAN SHFT SHF (PART OF 31) 2008-2013
034 SEAL, HYBRID LOW 1-2 CLU REG VLV (*KIT2, KIT3) 2008-2013
035 SEAL, A/TRNS FLUID PUMP (*KIT2, KIT3) 2008-2013
036 VALVE, CONT (W/BODY VLV) (SEE GROUP 04.000 HYDRAULIC CONTROL MODULE FOR DETAILED ILLUSTRATED VIEW) 2008-2013
037 29543806 BOLT, C/VLV UPR BODY K1 (M99) 2009-2013 02
038 29543501 BOLT, C/VLV UPR BODY K1 (M99) 2009-2013 04
039 29544320 DETENT, MAN SHFT CK1 (M99) 2008-2013 01
040 24211635 BOLT, MAN SHFT DTNT SPR (M6X1.0X16) (ACDelco #24211635) CK1 (M99) 2008-2013 01
041 29546932 HARNESS, A/TRNS WRG (INTERNAL TO TRNS-MAIN CONT HARNESS W/23 PIN CONN) (2.480) CK1 (M99) 2008-2013 01
041 29546932 HARNESS, A/TRNS WRG (INTERNAL TO TRNS-MAIN CONT HARNESS W/23 PIN CONN) CK1 (M99) 2008-2013 01
041 24259590 HARNESS, A/TRNS WRG (EXTERNAL TO TRNS-JMPR HARNESS AUX PMP CONT MODULE TO VEH HARN) CK1 (M99) 2008-2011 01
041 24259590 HARNESS, A/TRNS WRG (EXTERNAL TO TRNS-JMPR HARNESS AUX PMP CONT MODULE TO VEH HARN) (2.480) CK1 (M99) 2008-2011 01
042 SEAL, WRG CONN (*KIT2, KIT3) 2008-2013
043 SEAL, A/TRNS AUX FLUID FLTR (*KIT1) 2008-2013
044 29545042 PIPE, A/TRNS AUX FLUID PUMP OTLT CK1 (M99) 2008-2013 01
045 SEAL, A/TRNS AUX FLUID FLTR (*KIT1) 2008-2013
046 FILTER, A/TRNS AUX FLUID PUMP (*KIT1) 2008-2013
047 SEAL, A/TRNS FLUID FLTR (*KIT1) 2008-2013
048 FILTER, A/TRNS FLUID (*KIT1) 2008-2013
050 29544375 GASKET, A/TRNS FLUID PAN (ACDelco #29544375) CK1 (M99) 2008-2013 01
051 29532686 MAGNET, A/TRNS FLUID PAN (PART OF 52) (ACDelco #29532686) CK1 (M99) 2008-2013 01
052 29544374 PAN, A/TRNS FLUID (INCLS 51) CK1 (M99) 2008-2013 01
053 29544333 BOLT, A/TRNS FLUID PAN CK1 (M99) 2010-2013 13
054 SEAL, A/TRNS FLUID PAN DRN PLUG (O RING) (PART OF 55) 2008-2013
055 24233099 PLUG, A/TRNS FLUID PAN DRN (INCLS 54) (ACDelco #24233099) CK1 (M99) 2008-2013 01
056 29544334 HARNESS, A/TRNS CONT WRG HARN EXTN CK1 (M99) 2008-2013 01
057 19168300 SEAL, DRV MOT GEN PWR INV MDL CBL HSG CVR (HSG CVR) (*KIT2) CK1 (M99) 2008-2013 02
058 PIN, TRANS CASE LOC (PART OF 21) (2WD ONLY) 2008-2013
059 BOLT, DRV MOT GEN PWR INV MDL CBL TERM INSUL BLK (PART OF 13) 2008-2013
K01 19168277 FILTER KIT, A/TRNS FLUID (INCLS 43, 45-48) (ACDelco #19168277) CK1 (M99) 2008-2013 01
K02 19168275 SEAL KIT, A/TRNS SERV (INCLS 7, 10, 12, 17, 18, 20, 23, 26, 28, 34, 35, 42, 57) (FULL TRANS) CK1 (M99) 2008-2013 01
K03 19168276 SEAL KIT, A/TRNS SERV (INCLS 17, 18, 34, 35, 42) (CNTRL SOL VLV ASM) CK1 (M99) 2008-2013 01
