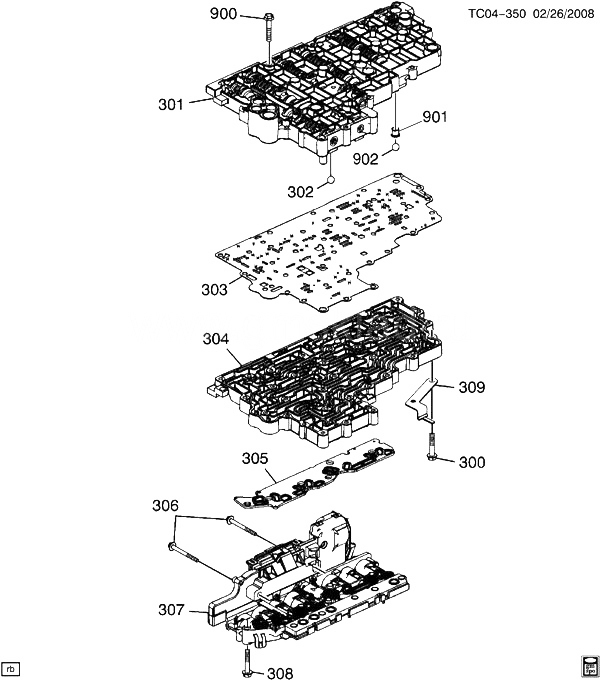

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 300 |
29543502 |
BOLT, C/VLV CHAN PLT (ACDelco #29543502) |
CK1 (M99) |
2008-2013 |
19 |
| 301 |
29544409 |
BODY, C/VLV UPR (INCLS 901, 902)SEE GROUP 04.000 CONTROL VALVE UPPER BODY ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) |
CK1 (M99) |
2008-2013 |
01 |
| 302 |
29543810 |
VALVE, A/TRNS FLUID PUMP BALL CHK |
CK1 (M99) |
2008-2013 |
01 |
| 303 |
29544355 |
PLATE, C/VLV BODY SPCR (W/GSKT) |
CK1 (M99) |
2008-2013 |
01 |
| 304 |
29544353 |
PLATE, C/VLV CHAN (ACDelco #29544353) |
CK1 (M99) |
2008-2013 |
01 |
| 305 |
19168278 |
PLATE KIT, CONT SOL VLV FLTR |
CK1 (M99) |
2008-2013 |
01 |
| 306 |
24240845 |
BOLT, CONT SOL VLV HEAT SINK (W/ BODY TCM) (M5X0.8X53.0) (ACDelco #24240845) |
CK1 (M99) |
2008-2013 |
02 |
| 307 |
24255209 |
VALVE, CONT SOL (W/ BODY TCM) |
CK1 (M99) |
2010-2013 |
01 |
| 308 |
29543500 |
BOLT, CONT SOL VLV HEAT SINK (W/ BODY TCM) |
CK1 (M99) |
2008-2013 |
09 |
| 309 |
29546427 |
BRACKET, A/TRANS MAN SHFT SHF POSN SW |
CK1 (M99) |
2008-2013 |
01 |
| 900 |
29543502 |
BOLT, C/VLV UPR BODY (ACDelco #29543502) |
K1 (M99) |
2009-2013 |
03 |
| 901 |
24201075 |
VALVE, A/TRNS FLUID/PUMP CVR BALL CHK (PART OF 301) (4.265) (ACDelco #24201075) |
CK1 (M99) |
2008-2013 |
01 |
| 902 |
08622757 |
VALVE, COAST CLU HSG BALL CHK (PART OF 301) (3/16 DIA) (STL BALL ONLY) (4.256) (ACDelco #8622757) |
CK1 (M99) |
2008-2013 |
01 |
