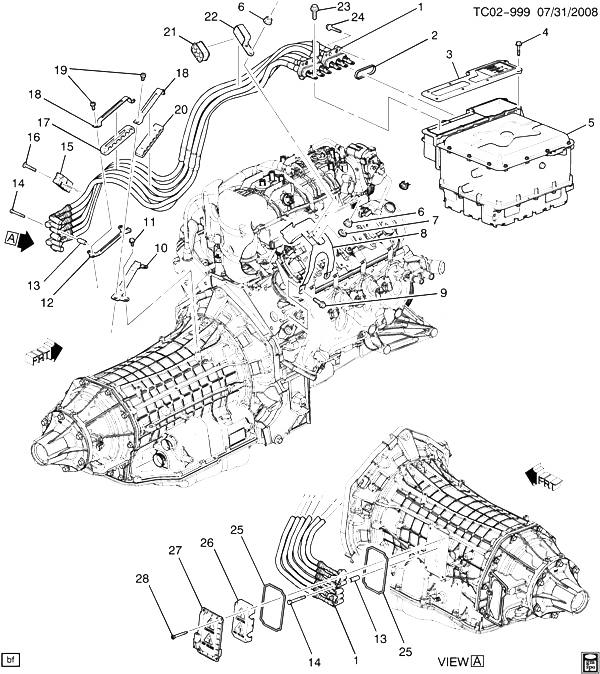

(TC02-999) 2009-2013 CK1 ПРОВОДА ГЕНЕРАТОРА-3 PHASE (HYBRID HP2) CADILLAC - ESCALADE HYBRID (AWD) 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 24250325 CABLE, DRV MOT PWR INV MDL 3 PHASE (INCLS 2, 10, 12-22, 24-28) (2.343) CK1 (M99) 2008-2013 01
002 19168301 SEAL, DRV MOT GEN PWR INV MDL CBL TERM EXT BOLT (PART OF 1) (TERM EXT BOLT) CK1 (M99) 2008-2013 02
003 24243399 COVER, DRV MOT PWR INV MDL 3 PHASE CBL (INCLS 4) CK1 (HP2) 2008-2013 01
004 24243398 BOLT, DRV MOT GEN PWR INV MDL CBL CVR (PART OF 3) CK1 (HP2) 2008-2013 13
005 12636016 MODULE, DRV MOT GEN PWR INV (SEE GROUP 02.000 DRIVE MOTOR CONTROL MODULE FOR DETAILED ILLUSTRATED VIEW) CK1 (HP2) 2010-2013 01
006 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (DRV MOT GEN POWR INV MDL CBL BRKT) 2008-2013 02
007 24246179 INSULATOR, DRV MOT PWR INV MDL CBL TERM EXT (PART OF 8) CK1 (HP2) 2008-2013 01
008 24246180 BRACKET, DRV MOT PWR INV MDL 3 PHASE CBL (INCLS 7) CK1 (HP2) 2008-2013 01
009 11516327 BOLT, HFH, M10X1.5X25, 22.30 O.D., HDR PT, 10.9, 7112M (DRV MOT GEN POWR INV MDL CBL BRKT) 2008-2013 02
010 19168304 BRACKET, DRV MOT PWR INV MDL 3 PHASE CBL (RH BOTTOM) (PART OF 1) (RH BOTTOM) CK1 (M99) 2008-2013 01
011 29544413 BOLT, DRV MOT GEN PWR INV MDL CBL RET (DL CBL RET) CK1 (M99) 2008-2013 04
012 19168303 BRACKET, DRV MOT PWR INV MDL 3 PHASE CBL (LH BOTTOM) (PART OF 1) CK1 (M99) 2008-2013 01
013 BOLT KIT, DRV MOT PWR INV MDL (3 PHASE) CBL (PART OF 1) 2009-2013
014 BOLT, DRV MOT GEN PWR INV MDL CBL TERM INSUL BLK (PART OF 1) 2009-2013
015 19181269 BRACKET, DRV MOT PWR INV MDL 3 PHASE CBL (PART OF 1) (INCLS 16) (NEAR TRANS) CK1 (M99) 2008-2013 01
016 BOLT, DRV MOT PWR INV MDL 3 PHASE CABLE (PART OF 1, 15) 2009-2013
017 19168307 RETAINER, DRV MOT PWR INV MDL CBL (LH BRKT) (PART OF 1) (2.343) CK1 (M99) 2008-2013 02
018 19168305 BRACKET, DRV MOT PWR INV MDL 3 PHASE CBL (PART OF 1) (RH/LH TOP) CK1 (M99) 2008-2013 01
019 19168302 BOLT, DRV MOT GEN POWR INV MDL CBL BRKT (PART OF 1) (L CBL BRKT) CK1 (M99) 2008-2013 02
020 19168306 RETAINER, DRV MOT PWR INV MDL CBL (RH BRKT) (PART OF 1) (2.343) CK1 (M99) 2008-2013 02
021 19168308 RETAINER, DRV MOT PWR INV MDL CBL (FLEX CBL BRKT) (PART OF 1) (2.343) CK1 (M99) 2008-2013 01
022 19168309 BRACKET, DRV MOT PWR INV MDL 3 PHASE CBL (PART OF 1) (NEAR BATTERY) CK1 (M99) 2008-2013 01
023 11588711 BOLT, HFH, M6X1X16, 10 THD, 14.2 OD, 8.8 STL, GMW3359 (DRV MOT PWR INV MDL 3 PHASE CABLE) 2008-2013 06
024 19168310 BOLT, DRV MOT GEN PWR INV MDL CBL TERM EXT (PART OF 1) CK1 (M99) 2008-2013 04
025 19168300 SEAL, DRV MOT GEN PWR INV MDL CBL HSG CVR (PART OF 1) (HSG CVR) CK1 (M99) 2008-2013 02
026 29544326 COVER, DRV MOT PWR INV MDL CBL TERM EXT BOLT PROTV (PART OF 1) CK1 (M99) 2008-2013 01
027 29544327 COVER, DRV MOT PWR INV MDL 3 PHASE CBL (PART OF 1) (INCLS 28) CK1 (M99) 2008-2013 01
028 19168311 BOLT, DRV MOT PWR INV MDL 3 PHASE CABLE (PART OF 1, 27) CK1 (M99) 2008-2013 04
