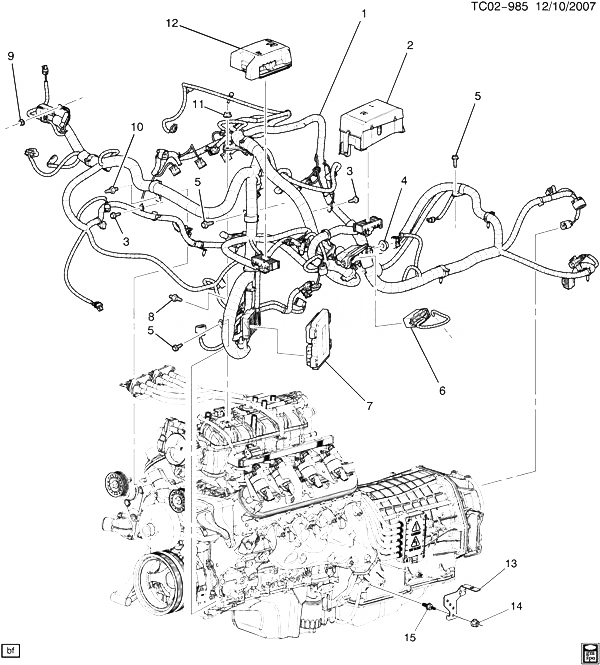

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20989055 |
HARNESS, ENG WRG |
K1 (06) (LZ1, HP2, NQH) |
2010-2013 |
01 |
| 002 |
|
BLOCK, ENG WRG HARN JUNC (SEE GROUP 02.000 RELAYS MODULES FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 003 |
11609619 |
BOLT, HEX W/ FL WA-M10X1.5X16, 20 OD, 10.9 STL, GMW3200 FINISH (ENG WRG HARN GND) |
|
2008-2013 |
02 |
| 004 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (ENG WRG HARN CDT) (8.915) (ACDelco #11514596) |
|
2008-2013 |
01 |
| 005 |
11609619 |
BOLT, HEX W/ FL WA-M10X1.5X16, 20 OD, 10.9 STL, GMW3200 FINISH (ENG WRG HARN CLIP) |
|
2008-2013 |
03 |
| 006 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 007 |
|
MODULE, ENG CONT (W/ 2ND MPU) (W/O CALN) (SEE GROUP 03.000 E.C.M MODULE WIRING HARNESS FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 008 |
11609832 |
STUD-HFH, M8X1.25X16, M8X1.25X16, 18 OD, 40.1 TL, 8.8 STL, GMW3200 (ENG WRG HARN CDT) |
|
2008-2013 |
01 |
| 009 |
11609716 |
NUT, HFH, M6X1X5.85, 14.2 OD, 9 STL, GMW3200 (ENG WRG HARN GND) |
|
2008-2013 |
01 |
| 010 |
11561111 |
STUD, ENG WRG HARN CLIP (M10 X1.5 X 20) (2.343) |
CK1 (HP2) |
2008-2013 |
01 |
| 011 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (ENG WRG HARN RET) |
|
2008-2013 |
01 |
| 012 |
|
BLOCK, ACSRY WRG JUNC (SEE GROUP 02.000 BLOCK/ACCESSORY WIRING JUNCTION FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 013 |
15034434 |
BRACKET, TRANS WRG HARN (3.163) |
CK1 (LZ1, HP2) |
2010-2013 |
01 |
| 014 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (TRANS WRG HARN BRKT) |
|
2008-2013 |
01 |
| 015 |
24574534 |
STUD, TRANS WRG HARN (M6X1X20) (1.166) |
CK1 (LZ1, HP2) |
2010-2013 |
01 |
