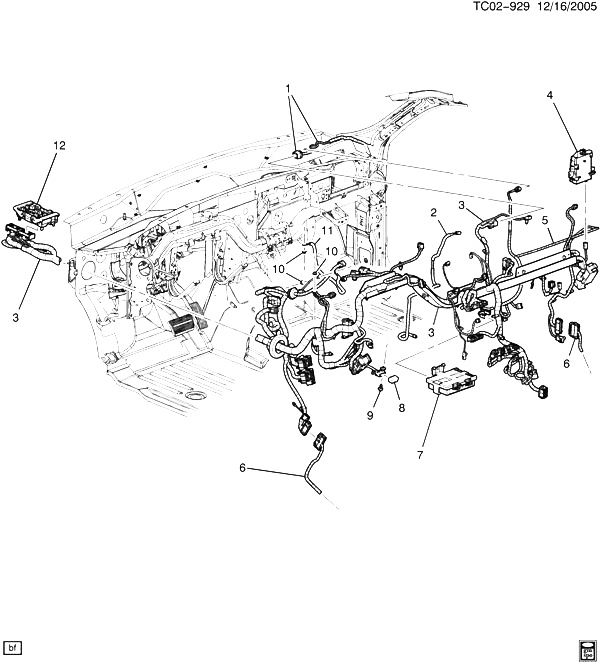

(TC02-929) 2007-2013 CK1(06-36) ЖГУТ ПРОВОДОВ/ПРИБОРНАЯ ПАНЕЛЬ (CADILLAC Z75) CADILLAC - ESCALADE HYBRID (AWD) 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 HARNESS, RF WRG (SEE GROUP 02.000 WIRING HARNESS/ROOF FOR DETAILED ILLUSTRATED VIEW) 2007-2013
002 22847989 CABLE, RDO ANT CBL EXTN RDO END (1021 MM) (ACDelco #22847989) CK1 (U84, Z75) 2007-2013 01
003 22757329 HARNESS, I/P WRG (INCLS 5) K107 (06) (FCN, HP2, T89, UE1, U42, Z75) (EXC BRS) 2011-2011 01
003 22757337 HARNESS, I/P WRG (INCLS 5) K107 (06) (UE1, UFT, U42, Z75) (EXC ULT) 2011-2011 01
003 22757338 HARNESS, I/P WRG (INCLS 5) K1 (06) (BRS, UE1, Z75) (EXC UFT, U42) 2011-2011 01
003 22757338 HARNESS, I/P WRG (INCLS 5) K1 (06) (UE1, UFT, Z75) (EXC U42) 2011-2011 01
003 22757339 HARNESS, I/P WRG (INCLS 5) CK1 (06) (BRS, DNU, UE1, U42, Z75) (EXC UFT, ULT) 2011-2011 01
003 22757339 HARNESS, I/P WRG (INCLS 5) CK1 (06) (DNU, UE1, UFT, U42, Z75) (EXC ULT) 2011-2011 01
003 22757341 HARNESS, I/P WRG (INCLS 5) K107 (06) (UE1, UFT, ULT, U42, Z75) 2011-2011 01
003 22757357 HARNESS, I/P WRG (INCLS 5) K107 (06) (UE1, U42, Z75) (EXC BRS, UFT, ULT) 2011-2011 01
003 22757358 HARNESS, I/P WRG (INCLS 5) K1 (06) (UE1, Z75) (EXC BRS, UFT, U42) 2011-2011 01
003 22757360 HARNESS, I/P WRG (INCLS 5) CK1 (06) (DNU, UE1, U42, Z75) (EXC BRS, UFT, ULT) 2011-2011 01
003 22757362 HARNESS, I/P WRG (INCLS 5) K1 (06) (BRS, HP2, UE1, Z75) (EXC U42) 2011-2011 01
003 22757362 HARNESS, I/P WRG (INCLS 5) K1 (06) (HP2, UE1, UFT, Z75) (EXC BRS, U42) 2011-2011 01
003 22757363 HARNESS, I/P WRG (INCLS 5) K1 (06) (BRS, HP2, UE1, U42, Z75) (EXC T89, UFT, ULT) 2011-2011 01
003 22757363 HARNESS, I/P WRG (INCLS 5) K1 (06) (HP2, UE1, UFT, U42, Z75) (EXC ULT) 2011-2011 01
003 22757366 HARNESS, I/P WRG (INCLS 5) K1 (06) (HP2, UE1, Z75) (EXC BRS, UFT, U42) 2011-2011 01
003 22757367 HARNESS, I/P WRG (INCLS 5) K1 (06) (HP2, UE1, U42, Z75) (EXC BRS, T89, UFT) 2011-2011 01
003 22757371 HARNESS, I/P WRG (INCLS 5) K1 (06) (BRS, HP2, UE1, UFT, ULT, U42, Z75) 2011-2011 01
003 22757376 HARNESS, I/P WRG (INCLS 5) CK107 (06) (BRS, ULT, U42, Z75) (EXC T89, UE1) 2011-2011 01
003 22757380 HARNESS, I/P WRG (INCLS 5) CK1 (06) (Y91, Z75) (EXC BRS, DNU, T89, UE1, UFT) 2011-2011 01
003 22757383 HARNESS, I/P WRG (INCLS 5) CK1 (06) (BRS, Z75) (EXC DNU, T89, UE1, UFT, ULT) 2011-2011 01
003 22757383 HARNESS, I/P WRG (INCLS 5) CK1 (06) (UFT, Y91, Z75) (EXC DNU, T89, UE1, ULT) 2011-2011 01
003 22757384 HARNESS, I/P WRG (INCLS 5) CK1 (06) (DNU, U42, Y91, Z75) (EXC BRS, UE1, UFT) 2011-2011 01
003 22757385 HARNESS, I/P WRG (INCLS 5) CK1 (06) (BRS, DNU, U42, Z75) (EXC UE1, UFT, ULT) 2011-2012 01
003 22757385 HARNESS, I/P WRG (INCLS 5) CK1 (06) (DNU, UFT, U42, Z75) (EXC UE1, ULT) 2011-2012 01
003 22757418 HARNESS, I/P WRG (INCLS 5) K107 (06) (BRS, T89, ULT, UL2, Z75) 2011-2011 01
003 22757394 HARNESS, I/P WRG (INCLS 5) K1 (06) (BRS, HP2, T89, UL2, Y91, Z75) (EXPORT) 2011-2011 01
003 22757395 HARNESS, I/P WRG (INCLS 5) K1 (06) (HP2, T89, UL2, Y91, Z75) (EXC BRS) (EXPORT) 2011-2011 01
003 20953922 HARNESS, I/P WRG (INCLS 5) K107 (06) (BRS, HP2, NQH, T89, UE1, U42, Y91, Z75) (EXC DNU, UFT, ULT, UL2) (EXPORT) 2011-2011 01
004 RECEIVER, DIGITAL RDO (SEE GROUP 09.000 ANTENNA/DIGITAL AUDIO FOR DETAILED ILLUSTRATED VIEW) 2007-2013
006 HARNESS, BODY WRG (SEE GROUP 02.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) 2007-2013
007 MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (SEE GROUP 09.000 COMMUNICATION SYSTEM FOR DETAILED ILLUSTRATED VIEW) (2.480) 2007-2013
008 12146933 COVER, I/P WRG HARN DATA LINK CONN K107 (06) (T89) (EXPORT) 2007-2012 01
009 11589012 BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P WRG HARN DATA LINK CONN) (9.665) 2007-2013 01
010 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (I/P WRG HARN GND) 2007-2013 03
012 BLOCK, ENG WRG HARN JUNC (SEE GROUP 02.000 BLOCK/ENGINE HARNESS JUNCTION FOR DETAILED ILLUSTRATED VIEW) 2007-2013
