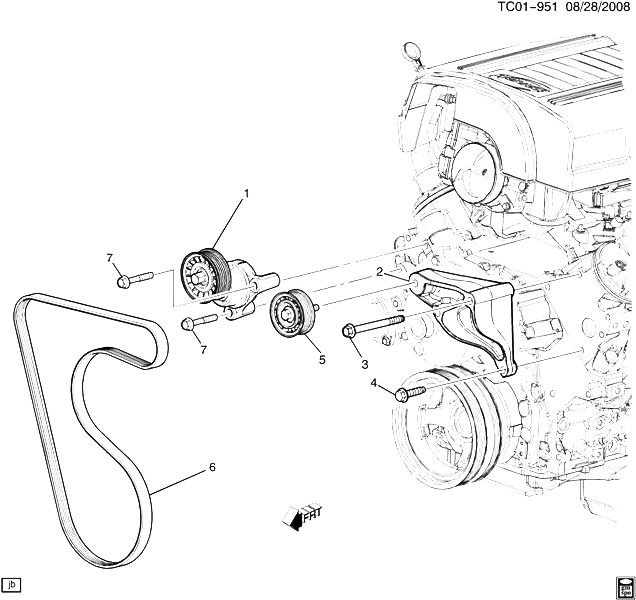

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12609719 |
TENSIONER, DRV BELT (2 BOLT DESIGN REPLACES 3 BOLT DESIGN, DISCARD UNUSED BOLT) (ACDelco #12609719) |
CK1 (L20, L94, LZ1) |
2010-2013 |
01 |
| 002 |
12599763 |
BRACKET, BELT IDLER PUL |
CK1 (LZ1) |
2010-2013 |
01 |
| 003 |
11519214 |
BOLT, HFH M10X1.5X115, 30 MM THD, 22.3 OD, 9.8, 7114M, MAT POINT (BELT IDLER PUL BRKT) |
|
2009-2013 |
02 |
| 004 |
11571051 |
BOLT, HFH, M10X1.5X45, 26 THD, 19 OD, 10.9, GMW3359 M-PT. (BELT IDLER PUL BRKT) |
|
2009-2013 |
01 |
| 005 |
12580774 |
PULLEY, BELT IDLER (6 GROOVE PULLEY CODE 6612, 0774) (ACDelco #12580774) |
CK1 (LZ1) |
2010-2013 |
01 |
| 006 |
12637200 |
BELT, FAN |
CK1 (LZ1) |
2010-2013 |
01 |
| 007 |
11518633 |
BOLT, HFH, M10X1.5X75, 26 THD, 22.3 OD, 10.9, GMW3359, MAT- POINT. (DRV BELT TENSR) |
|
2009-2013 |
02 |
