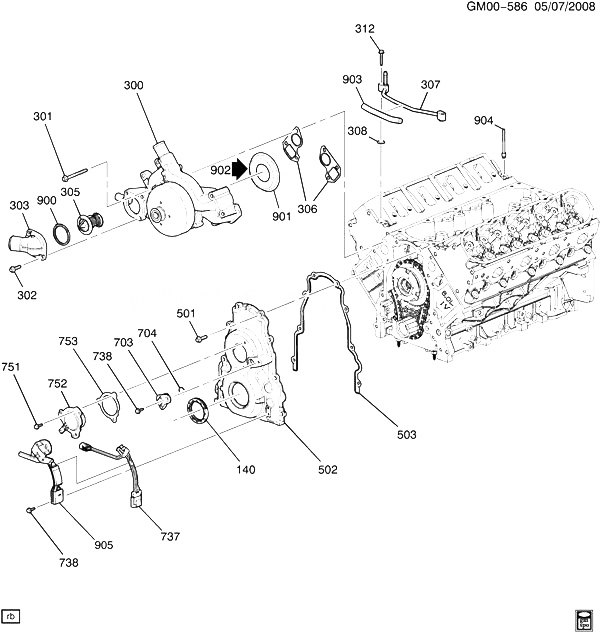

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 140 |
12585673 |
SEAL, ENG FRT CVR (*KIT1) (0.213) (ACDelco #296-02) |
CK1 (L94, LZ1, L20) |
2010-2013 |
01 |
| 300 |
19208815 |
PUMP KIT, WAT (INCLS 302, 303, 305, 900-902) (INCLS GASKETS) (ACDelco #251-713) |
CK1 (LZ1, L94, L20) |
2010-2013 |
01 |
| 301 |
12551926 |
BOLT, W/PMP (M8X1.25X83) |
CK1 (L20, LZ1, L94) |
2010-2013 |
06 |
| 302 |
11516480 |
BOLT, W/PMP INL (PART OF 300) (M6X1X25-10MM SOC) (ACDelco #15-75247) |
CK1 (LZ1, L94, L20) |
2010-2013 |
02 |
| 303 |
12587395 |
INLET, W/PMP (PART OF 300) (ACDelco #15-10595) |
CK1 (L20, LZ1, L94) |
2010-2013 |
01 |
| 305 |
89018168 |
THERMOSTAT KIT, ENG COOL (INCL SEAL) (PART OF 300) (INCLS 900) (ACDelco #131-160) |
CK1 (LZ1, L20, L94) |
2010-2013 |
01 |
| 306 |
12630223 |
GASKET, W/PMP (ACDelco #251-663) |
CK1 (LZ1, L20, L94) |
2010-2013 |
02 |
| 307 |
12605716 |
PIPE, ENG COOL AIR BL (INCLS 308, 903) |
CK1 (L94, LZ1, L20) |
2010-2013 |
01 |
| 308 |
12602541 |
SEAL, ENG COOL AIR BL PIPE (O RING) (SINGLE TYPE ONE HOLE O-RING) (PART OF 307) |
CK1 (L94, LZ1, L20) |
2010-2013 |
02 |
| 312 |
11588715 |
BOLT, HFH, M6X1X35, 18 THD, 14.2 OD, 8.8, GMW3359, 5MM M POINT (ENG COOL AIR BL PIPE) |
|
2009-2013 |
02 |
| 501 |
11515758 |
BOLT, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (ENG FRT CVR) (*KIT1) |
|
2009-2013 |
08 |
| 502 |
12636045 |
COVER, ENG FRT (MCHG) (W/O BOLT, SEAL, WIRE, GASKET, SENSOR, MAGNET) (*KIT1) |
CK1 (LZ1, M99) |
2010-2013 |
01 |
| 503 |
12633904 |
GASKET, ENG FRT CVR (*KIT1) |
CK1 (L94, LZ1, L20) |
2010-2013 |
01 |
| 703 |
12591720 |
SENSOR, CM/SHF POSN (INCLS 704) (*KIT1) (ACDelco #213-3826) |
CK1 (LZ1, L20, L94) |
2010-2013 |
01 |
| 704 |
|
SEAL, CM/SHF POSN SENSOR (PART OF 703) (*KIT1) |
|
2010-2013 |
|
| 737 |
12607409 |
WIRE, CM/SHF POSN SEN (INCLS 905) (*KIT1) |
CK1 (LZ1, M99) |
2010-2013 |
01 |
| 738 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (CM/SHF POSN ACTR HUB CVR) (*KIT1) |
|
2009-2013 |
02 |
| 751 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (CM/SHF POSN ACTR MAGNET) (*KIT1) |
|
2009-2013 |
03 |
| 752 |
12585995 |
MAGNET, CM/SHF POSN ACTR (*KIT1) |
CK1 (LZ1) |
2010-2013 |
01 |
| 753 |
12594339 |
SEAL, CM/SHF POSN ACTR CVR (*KIT1) |
CK1 (L20, LZ1, L94) |
2010-2013 |
01 |
| 900 |
12587397 |
SEAL, WAT INL (PART OF 300, 305) (ACDelco #12587397) |
CK1 (L20, LZ1, L94) |
2010-2013 |
01 |
| 901 |
|
PLUG, W/PMP (PART OF 300) |
|
2010-2013 |
|
| 902 |
89021297 |
ADHESIVE/SEALANT, THREADLOCKER HI STRENGTH 10ML ERI (PART OF 300) (ACDelco #10-1006) (89021297 SERVICED T/W BOLT 11517188) |
|
2009-2013 |
AR |
| 903 |
12600254 |
HOSE, ENG COOL AIR BL PIPE DPNG (PART OF 307) |
CK1 (L94, LZ1, L20) |
2010-2013 |
01 |
| 904 |
12602048 |
PLUG, ENG COOL AIR BL (50MM, ALUMINUM) |
CK1 (LZ1, L94, L20) |
2010-2013 |
02 |
| 905 |
|
BRACKET, CM/SHF POSN SEN LEAD CLIP (PART OF 737) (*KIT1) |
|
2010-2013 |
|
| K01 |
12636046 |
COVER, ENG FRT (INCLS 140, 501-503, 703, 704, 737, 738, 751-753, 905) (W/ BOLT, SEAL, WIRE, GASKET, SENSOR, MAGNET) |
CK1 (LZ1, M99) |
2010-2013 |
01 |
