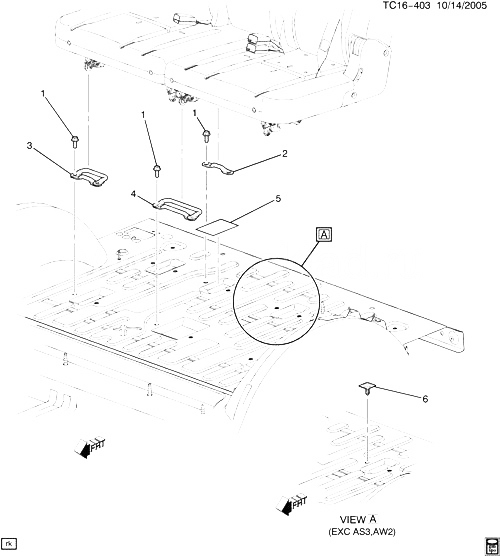

(TC16-403) - 2009 CK107(06) АРМАТУРА СИДЕНЬЯ/ЗАДНЕЕ СИДЕНЬЕ #2 STRIKERS(AS3) CADILLAC - ESCALADE HYBRID (AWD) 2009
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 11515775 | БОЛТ, HFH, M12X1.75X30, 10.9, 7114M (R/SEAT #2 RSR LAT STKR)|
| 2007-2009 |
14 |
|
| 002 | 15013755 | STRIKER, R/SEAT #2 RSR LAT (LOWER) | CK1, 2 (06) (AS3) | 2009-2009 | 04 |
| 003 | 15038813 | STRIKER, R/SEAT #2 RSR LAT (OUTER) (INCLS UPPER LOWER) | CK1, 2 (06) (AS3) | 2009-2009 | 02 |
| 004 | 15038814 | STRIKER, R/SEAT #2 RSR LAT (CENTER) | CK1, 2 (06) (AS3) | 2009-2009 | 01 |
| 005 | INSULATOR, R/SEAT #2 RSR LAT | 2007-2009 | |||
| 006 | PLUG, R/SEAT ANC PLT HOLE | 2009-2009 |
