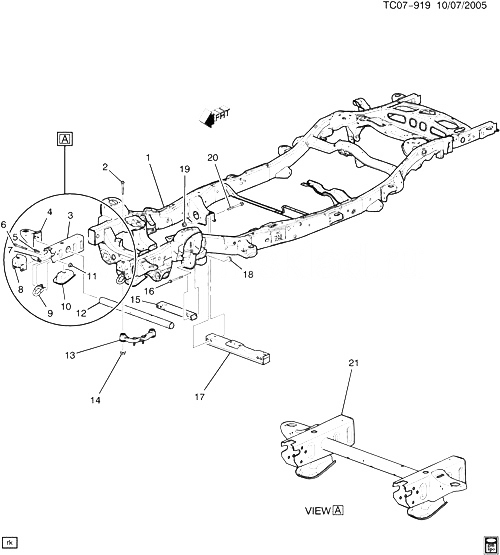

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15931160 |
FRAME, CHASSIS (INCLS 2, 4-20)
| K107 (06) |
2009-2009 |
01 |
|
| 002 |
11561577 |
БОЛТ, FRT DIFF CARR BRKT (PART OF 1) (8.900) |
K1 |
2007-2009 |
04 |
| 003 |
|
RAIL, U/B SI (PART OF 21) |
|
2007-2009 |
|
| 004 |
15854868 |
BRACKET, RAD SI MT (PART OF 1, 21) |
K1 |
2007-2009 |
01 |
| 004 |
15854869 |
BRACKET, RAD SI MT (PART OF 1, 21) |
K1 |
2007-2009 |
01 |
| 005 |
11589274 |
BOLT HFH, M12X1.75X45.8, 31.4 THD, 26.6 OD, 10.9, GMW3359, (PART OF 1)
|
2007-2009 |
02 |
|
| 006 |
11589283 |
БОЛТ, HFH, M12X1.75X125.9, 45 THD, 26.6 OD, 10.9, GMW3359, M-PT, REDUCED BO (PART OF 1) |
|
2007-2009 |
02 |
| 007 |
15774517 |
SPACER, FRT BPR IMP BAR BRKT (PART OF 1, 21) (*KIT1)
| K1 |
2007-2009 |
AR |
|
| 008 |
|
BRACKET, FRT BPR IMP BAR (PART OF 1) (*KIT1) |
|
2007-2009 |
|
| 009 |
15827191 |
HOOK, FRT TOW (PART OF 1)
| K1 (06-36) (V76) |
2007-2009 |
02 |
|
| 009 |
20859291 |
HOOK, FRT TOW (PART OF 1) |
K1 (06-36) |
2009-2009 |
02 |
| 010 |
10385576 |
BRACKET, U/B (PART OF 1, 21) |
K1 |
2007-2009 |
01 |
| 010 |
10385577 |
BRACKET, U/B (PART OF 1, 21) |
K1 |
2007-2009 |
01 |
| 011 |
11516078 |
ГАЙКА, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (PART OF 1)
|
2007-2009 |
02 |
|
| 012 |
15201007 |
CROSSMEMBER, FRT (PART OF 1, 21) |
K1 |
2007-2009 |
01 |
| 013 |
15201932 |
BRACKET, FRT DIFF CARR (PART OF 1) |
K1 |
2007-2009 |
01 |
| 013 |
15201933 |
BRACKET, FRT DIFF CARR (PART OF 1)
| K1 |
2007-2009 |
01 |
|
| 014 |
11514598 |
ГАЙКА, FRT DIFF CARR BRKT (PART OF 1) (HF 12X1.75) (8.915)
| K1 |
2007-2009 |
04 |
|
| 015 |
19150105 |
CROSSMEMBER, DRIVETRAIN FRT SUSP FRM FRT (PART OF 1) |
K107 (06) |
2007-2009 |
01 |
| 016 |
11517236 |
БОЛТ, DRIVETRAIN FRT SUSP FRM RR C/MBR (PART OF 1) (8.900) |
K107 (06) |
2007-2009 |
04 |
| 017 |
15894408 |
CROSSMEMBER, TRANS SUPT (PART OF 1) |
K107 (06) |
2009-2009 |
01 |
| 018 |
11516078 |
ГАЙКА, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (PART OF 1)
|
2007-2009 |
AR |
|
| 019 |
11516382 |
ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M (PART OF 1)
|
2007-2009 |
01 |
|
| 020 |
11517236 |
BOLT ASSEMBLY - METRIC HX HD AND CONICAL ПРУЖИНА WASHER, M12X1.75X135 - 18MM SOCKET (PART OF 1) |
|
2007-2009 |
04 |
| 021 |
15790389 |
FRAME, FRT HALF (INCLS 3-4, 7, 10, 12) (SERVICE KIT W/SECTIONING INSTRUCTIONS) |
K1 |
2007-2009 |
01 |
| K01 |
15791866 |
BRACKET KIT, FRT BPR IMP BAR (INCLS 7, 8) (INCLS SPACER, BOLTS, NUT)
| K1 |
2007-2009 |
02 |
|
