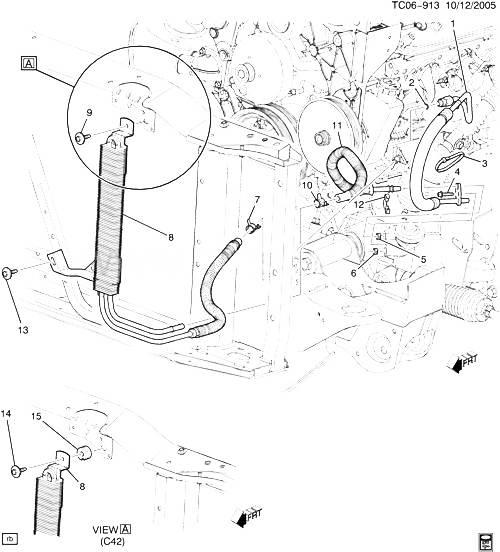

(TC06-913) - 2008-2009 CK1 НАСОС РУЛЕВОГО УПРАВЛЕНИЯ LINES (EXC HYBRID HP2) CADILLAC - ESCALADE HYBRID (AWD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
002 26001594 SEAL, P/S GR INL HOSE (O RING) (PART OF 1) (7.65MM IDX1.63MM THK) CK1 2007-2009 01
003 STRAP, P/S GR HOSE 2008-2009
004 11562063 БОЛТ, HFH, M6X1X25, 18 THD, 12.8 OD, 9.8 STL, HEX CHROME FREE, SN-ZN. (PART OF 1) 2007-2009 01
005 13271879 SEAL, P/S GR OTLT HOSE (O-RING) CK1 2007-2009 01
006 26100863 SEAL, P/S GR INL HOSE (O RING) (6.824) CK1 2007-2009 01
007 11516255 CLAMP, ПРУЖИНА BAND HOSE (M16X1) (PART OF 8) 2007-2009 01
009 11589039 БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (P/S FLUID CLR) 2007-2009 01
010 11516255 CLAMP, ПРУЖИНА BAND HOSE (M16X1) (PART OF 11) 2007-2009 01
011 15812565 HOSE, P/S GR OTLT (INCLS 10) CK1 2007-2009 01
012 CLIP, P/S GR INL OTLT PIPE 2008-2009
013 11589398 БОЛТ, HEX HD, W/CON WA, M6X1X30, 18.11 THD, 24 O.D., 9.8, GMW3179, BLACK (P/S FLUID CLR) 2007-2009 01
014 11589398 БОЛТ, HEX HD, W/CON WA, M6X1X30, 18.11 THD, 24 O.D., 9.8, GMW3179, BLACK (P/S FLUID CLR) 2007-2009 02
015 52476687 INSULATOR, P/S FLUID CLR (UPPER) CK1, 2, 3 (C42) 2007-2009 01
