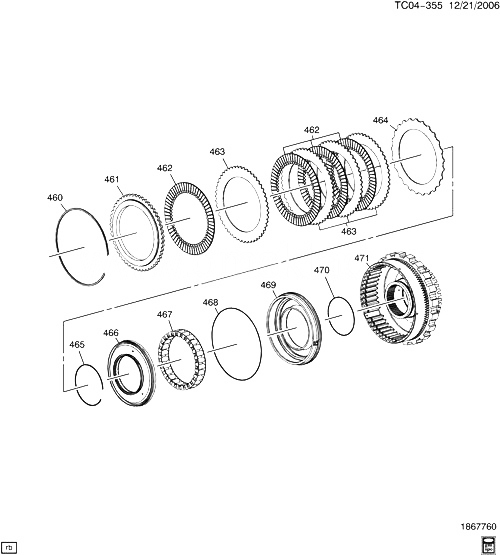

(TC04-355) - 2008-2009 CK1 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (M99) PART 9 (TWO-MODE HYBRID) 2-3-4 CLUTCH ШЛАНГИ ASSEMBLY CADILLAC - ESCALADE HYBRID (AWD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
460 RING, HYBRID DIR, 2-3-4 CLU PLT RET (*KIT3) 2008-2009
461 29543554 PLATE, HYBRID DIR, 2-3-4 CLU BKG CK1 (M99) 2008-2009 01
462 PLATE, HYBRID DIR, 2-3-4 CLU (*KIT1, KIT2) 2008-2009
463 PLATE, HYBRID DIR, 2-3-4 CLU (*KIT1, KIT2) 2008-2009
464 29543555 PLATE, HYBRID DIR, 2-3-4 CLU (WAVED) CK1 (M99) 2008-2009 01
465 RING, HYBRID DIR, 2-3-4 CLU PSTN (*KIT3) 2008-2009
466 29543550 DAM, HYBRID DIR, 2-3-4 CLU PSTN CK1 (M99) 2008-2009 01
467 29543549 ПРУЖИНА, HYBRID DIR, 2-3-4 CLU PSTN RTN CK1 (M99) 2008-2009 01
468 SEAL, HYBRID DIR, 2-3-4 CLU PSTN OTR (*KIT4) 2008-2009
469 29543842 PISTON, HYBRID DIR, 2-3-4 CLU (MCHG) CK1 (M99) 2008-2009 01
470 SEAL, HYBRID DIR, 2-3-4 CLU PSTN INR (*KIT4) 2008-2009
471 29543540 ШЛАНГИ, HYBRID DIR, 2-3-4 CLU CK1 (M99) 2008-2009 01
K01 29543814 PLATE, HYBRID DIR, 2-3-4 CLU (INCLS 462, 463) CK1 (M99) 2008-2009 01
K02 19168274 PLATE KIT, CLU (INCLS 462, 463) (4.265) CK1 (M99) 2008-2009 01
K03 19168285 RING KIT, RET (INCLS 460, 465) CK1 (M99) 2008-2009 01
K04 19168275 SEAL KIT, A/TRNS SERV (INCLS 468, 470) (FULL TRANS) CK1 (M99) 2008-2009 01
