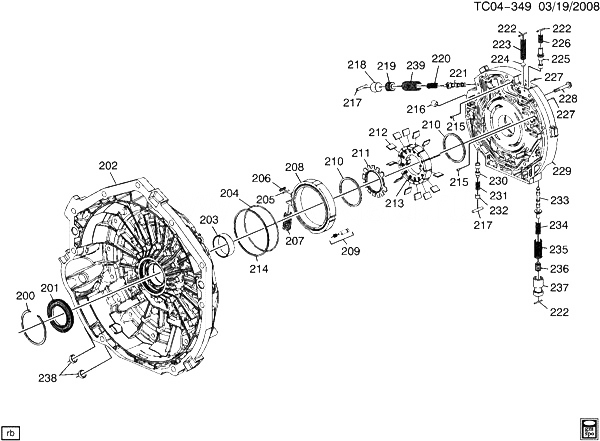

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 200 |
24218963 |
RING, A/TRNS TORQ DPNR FLUID SEAL RET (PART OF 202) (*KIT1) (4.115)
| CK1 (M99) |
2008-2009 |
01 |
|
| 201 |
24237531 |
SEAL, A/TRNS TORQ DPNR (PART OF 202, 213, 229) (4.226) (ACDelco #24237531)
| CK1 (M99) |
2008-2009 |
01 |
|
| 202 |
29544393 |
ШЛАНГИ, A/TRNS TORQ DPNR (INCLS 200, 201, 203) |
CK1 (M99) |
2008-2009 |
01 |
| 203 |
|
BUSHING, INPUT SHF (PART OF 202) |
|
2008-2009 |
|
| 204 |
|
SEAL, A/TRNS O/PMP SLIDE (O RING) (PART OF 213) |
|
2008-2009 |
|
| 205 |
|
SUPPORT, A/TRNS ГИДРОНАСОС SLIDE SEAL (PART OF 213) |
|
2008-2009 |
|
| 206 |
|
SEAL, A/TRNS ГИДРОНАСОС SLIDE (PART OF 213) |
|
2008-2009 |
|
| 207 |
|
ПРУЖИНА, A/TRNS ГИДРОНАСОС SLIDE OTR (PART OF 213) |
|
2008-2009 |
|
| 208 |
24222668 |
SLIDE, A/TRNS ГИДРОНАСОС (17.948MM-17.961MM) (ACDelco #24222668) |
CK1 (M99) |
2008-2009 |
01 |
| 208 |
24224131 |
SLIDE, A/TRNS ГИДРОНАСОС (17.961MM-17.974MM) (ACDelco #24224131) |
CK1 (M99) |
2008-2009 |
01 |
| 208 |
24224132 |
SLIDE, A/TRNS ГИДРОНАСОС (17.974MM-17.987MM) (ACDelco #24224132) |
CK1 (M99) |
2008-2009 |
01 |
| 209 |
|
PIN, A/TRNS ГИДРОНАСОС SLIDE PIV (PART OF 213) |
|
2008-2009 |
|
| 210 |
|
RING, A/TRNS ГИДРОНАСОС VANE (PART OF 213) |
|
2008-2009 |
|
| 211 |
|
GUIDE, A/TRNS ГИДРОНАСОС ROT (PART OF 213) |
|
2008-2009 |
|
| 212 |
|
VANE, A/TRNS ГИДРОНАСОС (PART OF 213) |
|
2008-2009 |
|
| 213 |
19168280 |
ROTOR PKG, A/TRNS ГИДРОНАСОС (INCLS 201, 204-207, 209-212, 214) (17.948MM-17.961MM) |
CK1 (M99) |
2008-2009 |
01 |
| 213 |
19168281 |
ROTOR PKG, A/TRNS ГИДРОНАСОС (INCLS 201, 204-207, 209-212, 214) (17.961MM-17.974MM) |
CK1 (M99) |
2008-2009 |
01 |
| 213 |
19168282 |
ROTOR PKG, A/TRNS ГИДРОНАСОС (INCLS 201, 204-207, 209-212, 214) (17.974MM-17.987MM) |
CK1 (M99) |
2008-2009 |
01 |
| 214 |
|
RING, A/TRNS ГИДРОНАСОС SLIDE FLUID SEAL (PART OF 213) |
|
2008-2009 |
|
| 215 |
|
ORIFICE, A/TRNS ГИДРОНАСОС AIR BL (PART OF 229) |
|
2008-2009 |
|
| 216 |
|
PLUG, A/TRNS TORQ DPNR FLUID PASG (PART OF 229) |
|
2008-2009 |
|
| 217 |
|
PIN, A/TRNS ГИДРОНАСОС VLV SPR (PART OF 229) |
|
2008-2009 |
|
| 217 |
|
PIN, PRESS REG VLV (PART OF 229) |
|
2008-2009 |
|
| 218 |
|
VALVE, ISOLATOR (PART OF 229) |
|
2008-2009 |
|
| 219 |
|
ПРУЖИНА, A/TRNS ГИДРОНАСОС VLV OTR (PART OF 229) |
|
2008-2009 |
|
| 220 |
|
ПРУЖИНА, A/TRNS ГИДРОНАСОС VLV INR (PART OF 229) |
|
2008-2009 |
|
| 221 |
|
VALVE, A/TRNS ГИДРОНАСОС AUX ГИДРОНАСОС (PART OF 229) |
|
2008-2009 |
|
| 222 |
|
PIN, PRESS RLF BALL VLV SPR (PART OF 229) |
|
2008-2009 |
|
| 223 |
|
ПРУЖИНА, PRESS RLF BALL VLV (PART OF 229) |
|
2008-2009 |
|
| 224 |
00147500 |
VALVE, PRESS RLF BALL (PART OF 229) |
CK1 (M99) |
2008-2009 |
01 |
| 225 |
|
VALVE, A/TRNS FLUID CLR BYPASS (PART OF 229) |
|
2008-2009 |
|
| 226 |
|
ПРУЖИНА, A/TRNS FLUID CLR BYPASS VLV (PART OF 229) |
|
2008-2009 |
|
| 227 |
|
VALVE, PRESS REG (PART OF 229) |
|
2008-2009 |
|
| 228 |
29544335 |
БОЛТ, A/TRNS ГИДРОНАСОС CVR |
CK1 (M99) |
2008-2009 |
18 |
| 229 |
19168284 |
COVER KIT, A/TRNS ГИДРОНАСОС (INCLS 201, 215-227, 230-239) |
CK1 (M99) |
2008-2009 |
01 |
| 230 |
|
VALVE, PRESS REG (PART OF 229) |
|
2008-2009 |
|
| 231 |
|
ПРУЖИНА, PRESS REG VLV (PART OF 229) |
|
2008-2009 |
|
| 232 |
|
STOP, PRESS REG VLV (PART OF 229) |
|
2008-2009 |
|
| 233 |
|
VALVE, PRESS REG (PART OF 229) |
|
2008-2009 |
|
| 234 |
|
ПРУЖИНА, PRESS REG VLV INR (PART OF 229) |
|
2008-2009 |
|
| 235 |
|
ПРУЖИНА, PRESS REG VLV OTR (PART OF 229) |
|
2008-2009 |
|
| 236 |
|
VALVE, ISOLATOR (PART OF 229) |
|
2008-2009 |
|
| 237 |
|
SLEEVE, ISOLATOR VLV (PART OF 229) |
|
2008-2009 |
|
| 238 |
24237658 |
SEAL, TRANS FLUID CLR PIPE FTG (PART OF 229) (SEALS ONE PIPE)
| CK1 (M99) |
2008-2009 |
02 |
|
| 239 |
|
ПРУЖИНА, A/TRNS ГИДРОНАСОС VLV OTR (PART OF 229) |
|
2008-2009 |
|
| K01 |
19168285 |
RING KIT, RET (INCLS 200) |
CK1 (M99) |
2008-2009 |
01 |
