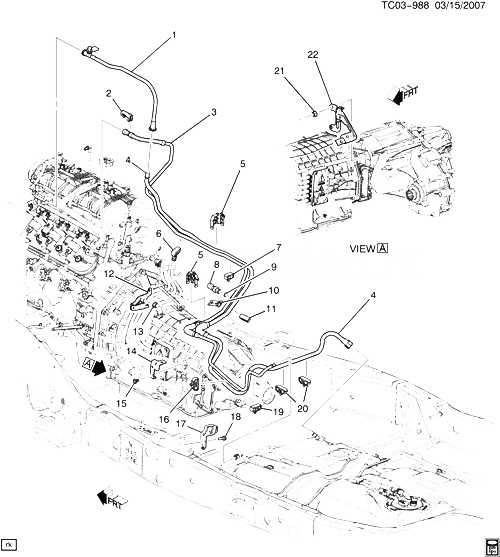

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12599895 |
TUBE, EVAP EMIS CNSTR PURGE |
CK1 (LFA) |
2008-2009 |
01 |
| 002 |
22695614 |
RETAINER, FUEL FEED HOSE CONN (13 X 19 X 36MM) (ONE TUBE)
| CK1, 2, 3 (LC9, LFA, LH6, LMG, LU3, LY2, LY5, LY6, L76, L9H) |
2009-2009 |
01 |
|
| 003 |
25918137 |
HOSE, FUEL FEED (INCLS 9, 19) (*KIT1) |
CK107 (06) (LFA, HP2) |
2008-2009 |
01 |
| 004 |
25918138 |
HOSE, EVAP EMIS (INCLS 20) (*KIT1) |
CK107 (06) (LFA, HP2) |
2008-2009 |
01 |
| 005 |
|
CLIP, FUEL FEED EVAP EMIS RTN HOSE (*KIT1) |
|
2008-2009 |
|
| 006 |
25792014 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (HOLDS TWO LINES 3/8, 1/2 DIA. W/TAB) (*KIT1) |
CK107 (06) (LFA, HP2) |
2008-2009 |
01 |
| 007 |
|
CLIP, FUEL FEED EVAP EMIS RTN HOSE (*KIT1) |
|
2008-2009 |
|
| 008 |
15239857 |
SENSOR, FUEL PRESS (PART OF HOSE ASSEMBLY 25813125 LABELED 3125) (*KIT1) (3.682) (ACDelco #213-3837) |
CK107 (06) (LFA, HP2) |
2008-2009 |
01 |
| 008 |
15239857 |
SENSOR, FUEL PRESS (PART OF HOSE ASSEMBLY 25813125 LABELED 3125) (*KIT1) (ACDelco #213-3837) |
CK107 (06) (LFA, HP2) |
2008-2009 |
01 |
| 009 |
15778699 |
SEAL, FUEL PRESS SEN (O RING) (PART OF 3) (*KIT1) |
CK107 (06) (LFA, HP2) |
2008-2009 |
01 |
| 010 |
|
LABEL, FUEL FEED PIPE WRNG (*KIT1) |
|
2008-2009 |
|
| 011 |
|
CLIP, FUEL FEED EVAP EMIS RTN HOSE (*KIT1) |
|
2008-2009 |
|
| 012 |
25792020 |
BRACKET, FUEL FEED EVAP EMIS RTN HOSE (*KIT1) |
CK107 (06) (LFA, HP2) |
2008-2009 |
01 |
| 013 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL FEED RTN FRT HOSE BRKT) (8.915) (ACDelco #11514596) |
|
2008-2009 |
01 |
| 014 |
25895626 |
BRACKET, FUEL FEED RTN FRT HOSE |
CK107 (06) (M99) |
2008-2009 |
01 |
| 015 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FUEL FEED RTN FRT HOSE BRKT)
|
2008-2009 |
01 |
|
| 016 |
25792013 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (*KIT1) |
CK107 (06) (LFA, HP2) |
2009-2009 |
01 |
| 017 |
15126012 |
BRACKET, FUEL FEED EVAP EMIS RTN PIPE CLIP (*KIT1) |
CK1 (06-36) |
2008-2009 |
01 |
| 018 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (FUEL FEED EVAP EMIS RTN PIPE CLIP BRKT) (ACDelco #11570082)
|
2008-2009 |
01 |
|
| 019 |
15168646 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (PART OF 3) (2 TUBE) (*KIT1) |
CK1 |
2009-2009 |
01 |
| 020 |
25792013 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (PART OF 4) (*KIT1) |
CK107 (06) (LFA, HP2) |
2009-2009 |
02 |
| 021 |
11514597 |
ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (TRFER CASE) (2.383) |
|
2008-2009 |
06 |
| 022 |
15033698 |
BRACKET, FUEL FEED RTN PIPE |
K1 |
2008-2009 |
01 |
| K01 |
25918136 |
HOSE, FUEL FEED EVAP EMIS RTN (INCLS 3-12, 16, 17, 19, 20) |
CK107 (06) (LFA, HP2) |
2008-2009 |
01 |
