| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20764828 |

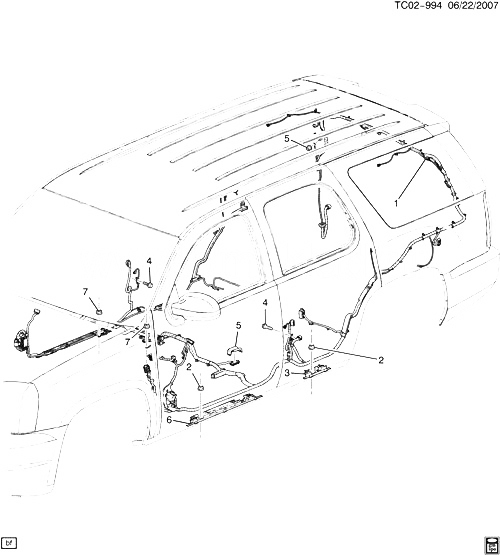

HARNESS, BODY WRG (INCLS 3, 6) (USED ON VEH BUILT WITH 8-WAY CONN ON КОНСОЛЬ) (FOR 1ST DES SEE 25883112) |
CK107 (06) (HP2, UVC, Y91, Z75) (EXC T89, ULT) (2ND DES) |
2009-2009 |
01 |
| 001 |
20830842 |
HARNESS, BODY WRG (INCLS 3, 6) |
CK1 (06) (LFA, HP2, Z75) (EXC TR2) |
2009-2009 |
01 |
| 002 |
21011332 |
ГАЙКА, HEX STAMPED TY DF FLG 14 (BODY WRG HARN BRKT) (8.921) |
|
2008-2009 |
06 |
| 004 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (BODY WRG HARN GND)
|
2008-2009 |
02 |
|
| 005 |
15215179 |
COVER, WRG HARN CONN (BLACK (REPLS ALL COLORS))
| CK1, 2 (06-36) |
2008-2009 |
02 |
|
| 007 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY WRG HARN GND)
|
2008-2009 |
03 |
|
