| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

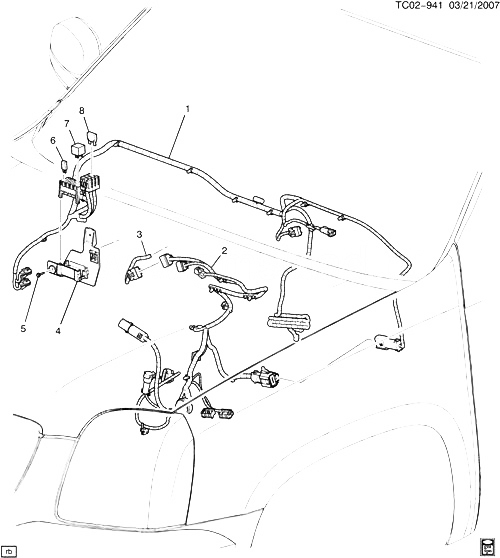

| 001 |
25825519 |
HARNESS, ACSRY PWR FUSE BLK RR WRG HARN EXTN (INCLS 4, 6-8) |
CK1, 2, 3 (9L4) |
2009-2009 |
01 |
| 001 |
25825520 |
HARNESS, ACSRY PWR FUSE BLK RR WRG HARN EXTN (INCLS 4, 6-8) |
CK107 (06) (PPV, 5W4) |
2009-2009 |
01 |
| 002 |
25776703 |
HARNESS, FUSE BLK WRG |
CK1, 2, 3 (MW7, MYC, MYD, M30, M99, JL1) (EXC JF4, 5W4, 9L4) |
2009-2009 |
01 |
| 002 |
25789058 |
HARNESS, FUSE BLK WRG |
K107 (06) (JL1, 5W4) (EXC JF4) |
2009-2009 |
01 |
| 003 |
|
HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/INSTURMENT PANEL ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 004 |
15888241 |
BRACKET, ACSRY PWR FUSE BLK RR WRG HARN EXTN HARN (PART OF 1) |
CK1, 2, 3 (9L4, 5W4, PPV) |
2007-2009 |
01 |
| 005 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (ACSRY PWR FUSE BLK RR WRG HARN EXTN HARN BRKT) (9.665)
|
2007-2009 |
02 |
|
| 006 |
12182117 |
BREAKER ASM, CIRC (MINI 30AMP NON-CYCLING) (PART OF 1) (2.483) |
|
2007-2009 |
02 |
| 007 |
12193604 |
RELAY, ACSRY (MOBILE RADIO) (PART OF 1) (GRAY) (SPST 280 MINI) (4-TERMINAL) (CODE 3604) (9.778) (ACDelco #15-8733) |
CK1, 2, 3 (9L4) |
2007-2009 |
02 |
| 007 |
12193604 |
RELAY, ACSRY (PART OF 1) (GRAY) (SPST 280 MINI) (4-TERMINAL) (CODE 3604) (9.778) (ACDelco #15-8733) |
CK107 (06) (PPV, 5W4) |
2007-2009 |
02 |
| 008 |
15319848 |
BREAKER, CIRC (50 AMP MAXI TYPE I) |
CK107 (06) (PPV, 5W4) |
2008-2009 |
03 |
