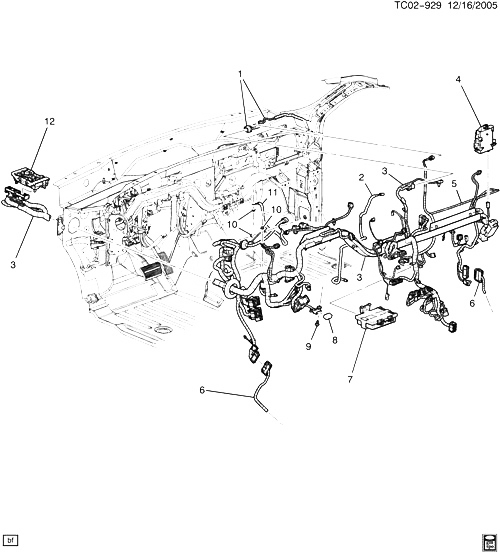

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, RF WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ROOF ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 002 |
15095253 |
CABLE, RDO ANT CBL EXTN RDO END (1021 MM) (ACDelco #15095253) |
CK1 (U84, Z75) |
2007-2009 |
01 |
| 003 |
20819666 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963001) |
K1 (06) (NR3, UE1, U42, Y91, Z75) (EXC BRS, DNU, UFT, ULT) (2ND DES) |
2009-2009 |
01 |
| 003 |
20819667 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963002) |
K1 (06) (NR3, UE1, Y91, Z75) (EXC BRS, UFT, U42) (2ND DES) |
2009-2009 |
01 |
| 003 |
20819668 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963003) |
K1 (06) (DNU, NR3, UE1, U42, Y91, Z75) (EXC BRS, UFT, ULT) (2ND DES) |
2009-2009 |
01 |
| 003 |
20819677 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963056) |
K1 (06) (BRS, NR3, UE1, U42, Y91, Z75) (EXC DNU, UFT, ULT) (2ND DES) |
2009-2009 |
01 |
| 003 |
20819677 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963056) |
K1 (06) (NR3, UE1, UFT, U42, Y91, Z75) (EXC DNU, ULT) (2ND DES) |
2009-2009 |
01 |
| 003 |
20819678 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963057) |
K1 (06) (BRS, NR3, UE1, Y91, Z75) (EXC UFT, U42) (2ND DES) |
2009-2009 |
01 |
| 003 |
20819678 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963057) |
K1 (06) (NR3, UE1, UFT, Y91, Z75) (EXC U42) (2ND DES) |
2009-2009 |
01 |
| 003 |
20819679 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963060) |
K1 (06) (BRS, DNU, NR3, UE1, U42, Y91, Z75) (EXC UFT, ULT) (2ND DES) |
2009-2009 |
01 |
| 003 |
20819679 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963060) |
K1 (06) (DNU, NR3, UE1, UFT, U42, Y91, Z75) (EXC ULT) (2ND DES) |
2009-2009 |
01 |
| 003 |
20819682 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963063) |
K107 (06) (BRS, NR3, UE1, ULT, U42, Y91, Z75) (EXC UFT) (2ND DES) |
2009-2009 |
01 |
| 003 |
20819682 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963063) |
K107 (06) (NR3, UE1, UFT, ULT, U42, Y91, Z75) (2ND DES) |
2009-2009 |
01 |
| 003 |
20824143 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963035) |
K1 (06) (NR3, Y91, Z75) (EXC BRS, DNU, T89, UE1) (2ND DES) |
2009-2009 |
01 |
| 003 |
20824152 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963055) |
K1 (06) (BRS, NR3, Y91, Z75) (EXC DNU, T89, UE1, ULT) (2ND DES) |
2009-2009 |
01 |
| 003 |
20824174 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963119) |
K1 (06) (BRS, DNU, NR3, U42, Y91, Z75) (EXC UE1, ULT) (2ND DES) |
2009-2009 |
01 |
| 003 |
20824202 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963157) |
K107 (06) (T89, VFJ, Y91, Z75) (EXC BRS, HP2) (2ND DES) |
2009-2009 |
01 |
| 003 |
20824203 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963158) |
K107 (06) (BRS, T89, VFJ, Y91, Z75) (EXC HP2) (2ND DES) |
2009-2009 |
01 |
| 003 |
20824208 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25978283) |
K107 (06) (BRS, T89, Y91, Z75) (EXC HP2, VFJ) (2ND DES) |
2009-2009 |
01 |
| 003 |
20833793 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963159) |
K107 (06) (BRS, NR3, ULT, U42, Y91, Z75) (EXC UE1, UFT) (2ND DES) |
2009-2009 |
01 |
| 003 |
20833795 |
HARNESS, I/P WRG (INCLS 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963161) |
K107 (06) (BRS, T89, ULT, Y91, Z75) (EXC HP2, UE1) (2ND DES) |
2009-2009 |
01 |
| 003 |
25963001 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819666) |
K1 (06) (NR3, UE1, U42, Y91, Z75) (EXC BRS, DNU, UFT, ULT) (1ST DES) |
2009-2009 |
01 |
| 003 |
25963002 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819667) |
K1 (06) (NR3, UE1, Y91, Z75) (EXC BRS, UFT, U42) (1ST DES) |
2009-2009 |
01 |
| 003 |
25963003 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819668) |
K1 (06) (DNU, NR3, UE1, U42, Y91, Z75) (EXC BRS, UFT, ULT) (1ST DES) |
2009-2009 |
01 |
| 003 |
25963035 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20824143) |
K1 (06) (NR3, Y91, Z75) (EXC BRS, DNU, T89, UE1) (1ST DES) |
2009-2009 |
01 |
| 003 |
25963045 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819672) |
K1 (06) (NR3, UBS, U2K, UE1, UVA, UVB, U42, Y91) (EXC BRS, UFT) (1ST DES) |
2009-2009 |
01 |
| 003 |
25963055 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20824152) |
K1 (06) (BRS, NR3, Y91, Z75) (EXC DNU, T89, UE1, ULT) (1ST DES) |
2009-2009 |
01 |
| 003 |
25963056 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819677) |
K1 (06) (BRS, NR3, UE1, U42, Y91, Z75) (EXC DNU, UFT, ULT) (1ST DES) |
2009-2009 |
01 |
| 003 |
25963056 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819677) |
K1 (06) (NR3, UE1, U42, Y91, Z75) (EXC DNU) (1ST DES) |
2009-2009 |
01 |
| 003 |
25963057 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819678) |
K1 (06) (BRS, NR3, UE1, Y91, Z75) (EXC UFT, U42) (1ST DES) |
2009-2009 |
01 |
| 003 |
25963057 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819678) |
K1 (06) (NR3, UE1, UFT, Y91, Z75) (EXC U42) (1ST DES) |
2009-2009 |
01 |
| 003 |
25963060 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819679) |
K1 (06) (BRS, DNU, NR3, UE1, U42, Y91, Z75) (EXC UFT, ULT) (1ST DES) |
2009-2009 |
01 |
| 003 |
25963060 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819679) |
K1 (06) (DNU, NR3, UE1, UFT, U42, Y91, Z75) (EXC ULT) (1ST DES) |
2009-2009 |
01 |
| 003 |
25963063 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819682) |
K107 (06) (BRS, NR3, UE1, ULT, U42, Y91, Z75) (EXC UFT) (1ST DES) |
2009-2009 |
01 |
| 003 |
25963063 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819682) |
K107 (06) (NR3, UE1, UFT, ULT, U42, Y91, Z75) (1ST DES) |
2009-2009 |
01 |
| 003 |
25963119 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20824174) |
K1 (06) (BRS, DNU, NR3, U42, Y91, Z75) (EXC UE1, ULT) (1ST DES) |
2009-2009 |
01 |
| 003 |
25963157 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20824202) |
K107 (06) (T89, VFJ, Y91, Z75) (EXC BRS, HP2) (1ST DES) |
2009-2009 |
01 |
| 003 |
25963158 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20824203) |
K107 (06) (BRS, T89, VFJ, Y91, Z75) (EXC HP2) (1ST DES) |
2009-2009 |
01 |
| 003 |
25963159 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20824204) |
K107 (06) (BRS, NR3, ULT, U42, Y91, Z75) (EXC UE1, UFT) (1ST DES) |
2009-2009 |
01 |
| 003 |
25963161 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20833795) |
K107 (06) (BRS, T89, ULT, Y91, Z75) (EXC HP2, UE1) (1ST DES) |
2009-2009 |
01 |
| 003 |
25978283 |
HARNESS, I/P WRG (INCLS 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20824208) |
K107 (06) (BRS, T89, Y91, Z75) (EXC HP2, VFJ) (1ST DES) |
2009-2009 |
01 |
| 004 |
|
RECEIVER, DIGITAL RDO (СМ. ГРУППУ 09.000 АНТЕННА/АУДИОСИСТЕМА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 005 |
19117122 |
CABLE, DIGITAL RDO АНТЕННА (PART OF 3) (9.675) (ACDelco #19117122) |
K1 (06) (BRS, NR3, UE1, ULT, U42, Y91, Z75) (EXC UFT) |
2009-2009 |
01 |
| 005 |
19117122 |
CABLE, DIGITAL RDO АНТЕННА (PART OF 3) (9.675) (ACDelco #19117122) |
K107 (06) (BRS, NR3, ULT, U42, Y91, Z75) (EXC UE1, UFT) |
2009-2009 |
01 |
| 005 |
19117122 |
CABLE, DIGITAL RDO АНТЕННА (PART OF 3) (9.675) (ACDelco #19117122) |
K107 (06) (NR3, UE1, UFT, ULT, U42, Y91, Z75) |
2009-2009 |
01 |
| 006 |
|
HARNESS, BODY WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/КУЗОВ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 007 |
|
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (СМ. ГРУППУ 09.000 СИСТЕМА КОМУНИКАЦИИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (2.480) |
|
2007-2009 |
|
| 008 |
12146933 |
COVER, I/P WRG HARN DATA LINK CONN |
K107 (06) (T89) |
2009-2009 |
01 |
| 009 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P WRG HARN DATA LINK CONN) (9.665)
|
2007-2009 |
01 |
|
| 010 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (I/P WRG HARN GND)
|
2007-2009 |
03 |
|
| 011 |
|
STRAP, BODY STATIC GND |
|
2007-2009 |
|
| 012 |
|
BLOCK, ENG WRG HARN JUNC (СМ. ГРУППУ 02.000 BLOCK/ДВИГАТЕЛЬ HARNESS JUNCTION ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
