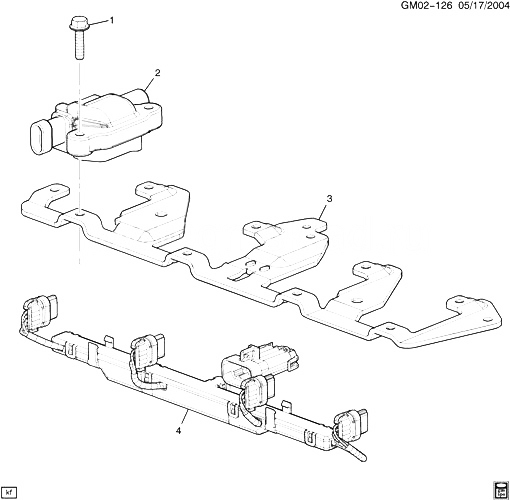

(GM02-126) - 2008-2009 CK1 COIL MODULE/IGNITION (MELCO)(LC9/5.3-3,LH6/5.3M,LMG/5.3-0,LY2/4.8C,LY5/5.3J,LFA/6.0-5) CADILLAC - ESCALADE HYBRID (AWD) 2009
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 11516424 | БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (IGN COIL)|
| 2007-2009 |
16 |
|
| 002 | 12611424 | COIL, IGN (MELCO-MITSUBISHI) (W/SQUARE-SHAPED COILS AND MARKED 12570616) (ACDelco #D510C) | CK1 (LFA) | 2008-2009 | 08 |
| 003 | 12580353 | BRACKET, IGN COIL (ACDelco #12580353) | CK1 (LFA) | 2008-2009 | 01 |
| 004 | 12579355 | WIRE, IGN COIL (INCLSCONNECTORS) (ACDelco #357A) | CK1 (LFA) | 2008-2009 | 01 |
