| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

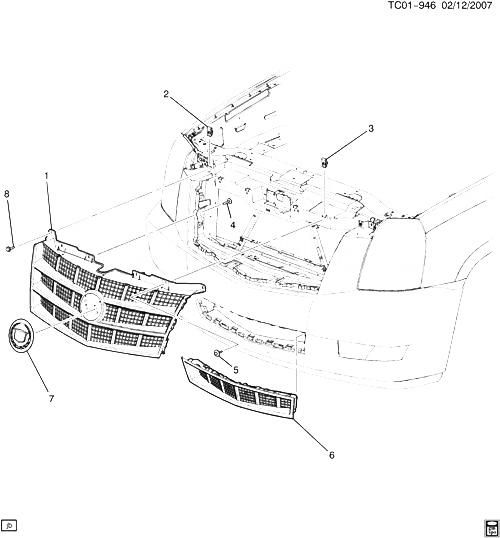

| 001 |
25957701 |
GRILLE, RAD UPR (INCLS 4, 7) (SILVER)
| CK1 (06) (ULT, VGD, Z75) (EXC T84) |
2009-2009 |
01 |
|
| 002 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (RAD UPR GRL)
|
2008-2009 |
02 |
|
| 003 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (RAD GRL UPR BRKT) |
|
2008-2009 |
08 |
| 004 |
22549046 |
SCREW, M4.2X1.4X25, 11.1 O.D., 6010M, NZ (PART OF 1) |
|
2008-2009 |
26 |
| 005 |
11589039 |
БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (RAD GRL SUPT REINF)
|
2008-2009 |
08 |
|
| 006 |
25957702 |
GRILLE, RAD LWR (SILVER) |
CK1 (06) (ULT, VGD, Z75) (EXC T84) |
2009-2009 |
01 |
| 007 |
15126354 |
EMBLEM, RAD GRL (PART OF 1) (MEDALLION) (BUILT PRIOR TO 01/12/09) (FOR 2ND DES SEE 20824267)
| CK1 (06) (ULT, VGD, Z75) (EXC T84) (1ST DES) |
2009-2009 |
01 |
|
| 007 |
20824267 |
EMBLEM, RAD GRL (PART OF 1) (BUILT 01/12/09 AFTER) (FOR 1ST DES SEE 15126354) |
CK1 (06) (ULT, VGD, Z75) (EXC T84) (2ND DES) |
2009-2009 |
01 |
