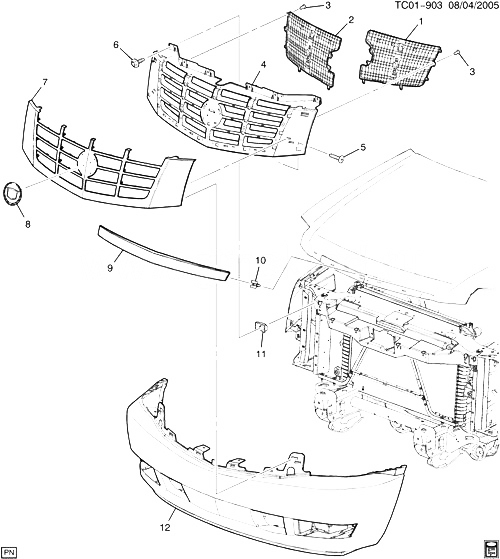

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
INSERT, RAD GRL (PART OF 7) |
|
2008-2009 |
|
| 002 |
|
INSERT, RAD GRL (PART OF 7) |
|
2008-2009 |
|
| 003 |
|
RIVET, RAD GRL (PART OF 7) |
|
2008-2009 |
|
| 004 |
|
GRILLE, RAD INR (PART OF 7) |
|
2008-2009 |
|
| 005 |
25705182 |
БОЛТ, FRT BPR FASCIA CTR SUPT (M9.5X6.0 HI-LO, TL 47MM, 22 OD) (12.249)
| CK1, 2 (06-36) |
2007-2009 |
AR |
|
| 006 |
11610055 |
БОЛТ, HWASH, M6X1X23 (FRT BPR UPR FASCIA) |
|
2007-2009 |
06 |
| 007 |
25795238 |
GRILLE, RAD (INCLS 1-4, 8) (BLUE)
| CK1 (06) (VGD, Z75, 25U) (EXC T84, ULT) |
2009-2009 |
01 |
|
| 007 |
25795238 |
GRILLE, RAD (INCLS 1-4, 8) (BLUE)
| CK1 (06) (VGD, Z75, 25U, T84) (EXPORT) |
2009-2009 |
01 |
|
| 007 |
25795240 |
GRILLE, RAD (INCLS 1-4, 8) (WHITE)
| CK1 (06-36) (VGD, Z75, 98U) (EXC ULT, T84) |
2008-2009 |
01 |
|
| 007 |
25795240 |
GRILLE, RAD (INCLS 1-4, 8) (WHITE)
| CK1 (06) (T84, VGD, Z75, 98U) (EXPORT) |
2009-2009 |
01 |
|
| 007 |
25795242 |
GRILLE, RAD (INCLS 1-4, 8) (BLACK) |
CK1 (06-36) (VGD, Z75, 41U) (EXC T84, ULT) |
2008-2009 |
01 |
| 007 |
25795242 |
GRILLE, RAD (INCLS 1-4, 8) (BLACK) |
CK1 (06) (T84, VGD, Z75, 01U, 41U) (EXPORT) |
2009-2009 |
01 |
| 007 |
25795243 |
GRILLE, RAD (INCLS 1-4, 8) (GOLD)
| CK1 (06-36) (VGD, Z75, 51U) (EXC ULT, T84) |
2008-2009 |
01 |
|
| 007 |
25795243 |
GRILLE, RAD (INCLS 1-4, 8) (GOLD)
| CK1 (06) (T84, VGD, Z75, 51U) (EXPORT) |
2009-2009 |
01 |
|
| 007 |
25795244 |
GRILLE, RAD (INCLS 1-4, 8) (SILVER)
| CK1 (06-36) (VGD, Z75, 59U) (EXC ULT, T84) |
2008-2009 |
01 |
|
| 007 |
25795244 |
GRILLE, RAD (INCLS 1-4, 8) (SILVER)
| CK1 (06) (T84, VGD, Z75, 59U) (EXPORT) |
2009-2009 |
01 |
|
| 007 |
25795245 |
GRILLE, RAD (INCLS 1-4, 8) (RED JEWEL)
| CK1 (06-36) (VGD, Z75, 80U) (EXC ULT, T84) |
2008-2009 |
01 |
|
| 007 |
25795245 |
GRILLE, RAD (INCLS 1-4, 8) (RED JEWEL)
| CK1 (06) (T84, VGD, Z75, 80U) (EXPORT) |
2009-2009 |
01 |
|
| 007 |
25840444 |
GRILLE, RAD (INCLS 1-4, 8) (GRAY)
| CK1 (06) (VGD, Z75, 46U) (EXC T84, ULT) |
2008-2009 |
01 |
|
| 007 |
25840444 |
GRILLE, RAD (INCLS 1-4, 8) (GRAY)
| CK1 (06) (T84, VGD, Z75, 46U) (EXPORT) |
2009-2009 |
01 |
|
| 007 |
25840445 |
GRILLE, RAD (INCLS 1-4, 8) (SONOMA JEWEL) |
CK1 (06-36) (VGD, Z75, 66U) (EXC T84, ULT) |
2008-2009 |
01 |
| 007 |
25841844 |
GRILLE, RAD (INCLS 1-4, 8) |
CK1 (06) (T84, VGD, Z75, 58U) |
2009-2009 |
01 |
| 007 |
25841844 |
GRILLE, RAD (INCLS 1-4, 8) |
CK1 (06-36) (VGD, Z75, 58U) (EXC T84, ULT) |
2009-2009 |
01 |
| 007 |
25878072 |
GRILLE, RAD (INCLS 1-4, 8) (BRAHMA)
| CK1 (06) (T84, VGD, Z75, 12U) (EXPORT) |
2009-2009 |
01 |
|
| 007 |
25878072 |
GRILLE, RAD (INCLS 1-4, 8) (BRAHMA)
| CK1 (06) (VGD, Z75, 12U) (EXC T84, ULT) |
2009-2009 |
01 |
|
| 008 |
20824266 |
EMBLEM, RAD GRL (PART OF 7) (BUILT 01/12/09 AFTER) (FOR 1ST DES SEE 25795247) |
CK1 (06-36) (VGD, Z75) (EXC ULT) (2ND DES) |
2009-2009 |
01 |
| 008 |
25795247 |
EMBLEM, RAD GRL (PART OF 7) (WREATH/CREST) (BUILT PRIOR TO 01/12/09) (FOR 2ND DES SEE 20824266)
| CK1 (06-36) (VGD, Z75) (EXC ULT) (1ST DES) |
2009-2009 |
01 |
|
| 009 |
15907251 |
MOLDING, КАПОТ FRT (INCLS 10)
| CK1 (06-36) (Z75) (EXC ULT) |
2008-2009 |
01 |
|
| 010 |
11610051 |
RETAINER, КАПОТ FRT MLDG (PART OF 9) |
CK1 (06-36) (Z75) |
2007-2009 |
07 |
| 011 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (RAD GRL UPR BRKT) |
|
2007-2009 |
08 |
| 012 |
|
FASCIA, FRT BPR (СМ. ГРУППУ 07.000 БАМПЕР ПЕРЕДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (PAINT TO MATCH) |
|
2007-2009 |
|
