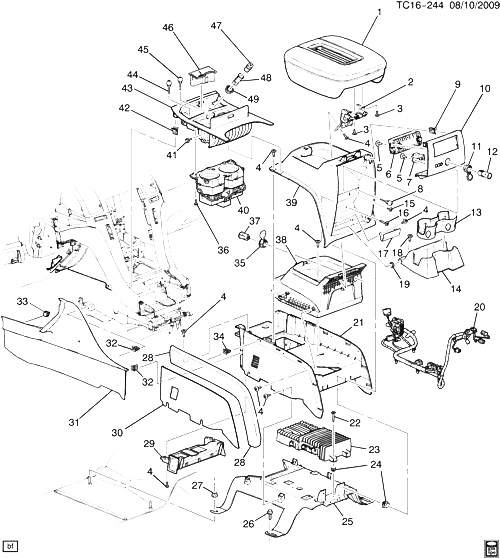

(TC16-244) - 2008-2009 CK1(06) КОНСОЛЬ/ПОЛ (CADILLAC Z75, PLATINUM EDITION ULT) CADILLAC - ESCALADE HYBRID (2WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 LID, F/TOP STOW COMPT (PART OF 39) (INCLS 2, 3) (СМ. ГРУППУ 16.000 КОНСОЛЬ FLOOR/UPPER ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2008-2009
002 HINGE, F/FLR CNSL COMPT DR (PART OF 1, 39) 2008-2009
003 11609459 SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (PART OF 1, 39) 2008-2009 08
004 11609459 SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (PART OF 39) 2008-2009 30
005 11609459 SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (HTR A/C CONT OPG CVR) 2008-2009 06
006 15886900 MODULE, HTR A/C RDO CONT CK1 (06) (ULT, Z75) 2008-2009 01
006 15886900 MODULE, HTR A/C RDO CONT (2.560) CK1 (06) (ULT, Z75) 2008-2009 01
007 10375379 ADAPTER, AUDIO/VIDEO DISC PLYR (ACDelco #10375379) CK1 (06) (ULT, Z75) 2009-2009 01
008 22596346 BUMPER, F/FLR RR CNSL A/RST (PART OF 39) (10.242) CK1 (06-36) (D07, Y91, Z75) 2008-2009 02
009 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 10) 2008-2009 02
010 15833953 COVER, HTR A/C CONT OPG (INCLS 9) CK1 (06) (ULT, Z75) 2008-2009 01
011 10364311 RETAINER, ACSRY PWR RCPT (CHROME RING W/BLACK CAP) CK1 (06) (ULT, Z75) 2009-2009 01
012 25774623 RECEPTACLE, ACSRY PWR (ACSRY PWR RECEPTACLE ASSEM LABELED 4623) CK1, 2, 3 2008-2009 02
013 15133100 LINER, F/FLR CNSL RR CUP HLDR (PART OF 14, 39) CK1 (06-36) (Z75) 2008-2009 01
014 15133093 HOLDER, F/FLR CNSL RR CUP (INCLS 13, 18, 19) (PART OF 39) CK1 (06-36) (Z75) 2008-2009 01
015 11609459 SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (PART OF 39) 2008-2009 02
016 11589106 SCREW, RND WA HD, M4.2X1.41X25, 19.2 THD, 11.3 OD, 6010M, GMW4205, C/R, TAP, (PART OF 39) (10.774) 2008-2009 02
017 DETENT, R/CMPT ACC DR HDL (PART OF 39) 2008-2009
018 11609459 SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (PART OF 14, 39) 2008-2009 02
019 15133101 BUSHING, F/FLR CNSL CUP HLDR DR HGE (PART OF 14, 39) CK1 (06) (D07, Z75) 2008-2009 01
020 15929132 HARNESS, F/FLR CNSL WRG (PART OF 39) CK1 (06) (U42, Z75) (EXC ULT) 2008-2009 01
020 25912292 HARNESS, F/FLR CNSL WRG (PART OF 39) CK1 (06) (Z75) (EXC U42, ULT) 2008-2009 01
021 PANEL, F/FLR CNSL TR (PART OF 39) 2008-2009
022 11589106 SCREW, RND WA HD, M4.2X1.41X25, 19.2 THD, 11.3 OD, 6010M, GMW4205, C/R, TAP, (PART OF 39) (10.774) 2008-2009 04
023 20808898 УСИЛИТЕЛЬ, RDO SPKR (PART OF 39) (ACDelco #20808898) CK1 (06-36) (D07, Z75) (EXC HP2) 2009-2009 01
024 ГАЙКА, F/FLR CNSL BRKT (PART OF 39) 2008-2009
025 BRACKET, F/FLR CNSL (PART OF 39) 2008-2009
026 11562473 БОЛТ, F/SEAT (M12X1.75X45) CK1, 2, 3 (AE7, AN3, AZ3, A95) (EXC HP2) 2008-2009 04
027 15035434 ГАЙКА, F/SEAT (M10X1.5X10.8) (FLANGE NUT) (16.679) CK1, 2, 3 2008-2009 04
028 25830462 PANEL, F/FLR CNSL SI TR (INCLS 34) (PART OF 39) (COCOA) CK1 (06) (ULT, Z75, 41I) 2008-2009 01
028 25830464 PANEL, F/FLR CNSL SI TR (INCLS 34) (PART OF 39) (COCOA) CK1 (06) (ULT, Z75, 41I) 2008-2009 01
029 25830634 DUCT, AIR INL (PART OF 39) CK1 (06) (ULT, Z75) 2008-2009 01
030 CARPET, F/FLR CNSL COMPT (PART OF 39) 2008-2009
031 15876585 PANEL, F/FLR CNSL SI TR FRT (INCLS 32, 33) (СМ. ГРУППУ 16.000 ПРИБОРНАЯ ПАНЕЛЬ/TRIM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (LINEN) CK1 (06) (ULT, Z75, 41I) 2008-2009 01
031 15876587 PANEL, F/FLR CNSL SI TR FRT (INCLS 32, 33) (СМ. ГРУППУ 16.000 ПРИБОРНАЯ ПАНЕЛЬ/TRIM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (LINEN) CK1 (06) (ULT, Z75, 41I) 2008-2009 01
032 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 31) 2008-2009 04
033 11562257 RETAINER, I/P LWR TR PAD BRKT (PUSH ON) (PART OF 31) (19.5 X 30.4 X 1.8) (14.683) CK1 (Z75) 2008-2009 03
034 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 28, 39) 2008-2009 10
035 15187371 RETAINER, ACSRY PWR RCPT (PART OF 39) (EBONY) (INCLS COVER) CK1, 2 (06) (D07) 2009-2009 01
036 БОЛТ, F/FLR CNSL TR PLT (PART OF 43) 2008-2009
037 25774623 RECEPTACLE, ACSRY PWR (PART OF 39) (ACSRY PWR RECEPTACLE ASSEM LABELED 4623) CK1, 2, 3 2008-2009 01
038 TRAY, F/FLR CNSL STOR (PART OF 39) 2008-2009
039 25999727 COMPARTMENT, F/FLR (INCLS 1-4, 8, 13-25, 28-30, 34, 35, 37, 38) (COCOA) CK1 (06) (ULT, Z75, 41I) 2008-2009 01
040 HOLDER, F/FLR CNSL FRT CUP (PART OF 43) 2008-2009
041 11609460 SCREW, RND WA, M4.2X1.41X10, 4.2 THD, 11 OD, GM6010M, GMW4205, C/R, TAP (PART OF 43) 2008-2009 04
042 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 43) 2008-2009 04
043 25991706 BEZEL, F/FLR FRT CNSL ACSRY TR (INCLS 36, 40-42, 44-46, 48, 49) (SOLITARE) CK1 (06) (ULT, 41I) 2008-2009 01
044 15683368 BUMPER, F/FLR CNSL COMPT DR (PART OF 43) (8.80 DIA) (CLOSED-STOP) (FRAME) CK1 (06) 2008-2009 02
045 BUMPER, F/FLR CNSL CUP HLDR (PART OF 43) 2008-2009
046 15132973 ПЕПЕЛЬНИЦА, F/FLR CNSL (PART OF 43) CK1 (Z75) 2008-2009 01
047 11516140 LIGHTER, CIG (BLACK) (W/LARGE, PLASTIC KNOB END 21.0MM) CK1 (06) (Z75, ULT) 2009-2009 01
047 11516140 LIGHTER, CIG (BLACK) (W/LARGE, PLASTIC KNOB END 21.0MM) (9.709) (SERV CMP OF ПЕПЕЛЬНИЦА PKG) CK1, 2, 3 2008-2009 01
048 25774623 RECEPTACLE, ACSRY PWR (PART OF 43) (ACSRY PWR RECEPTACLE ASSEM LABELED 4623) CK1, 2, 3 2008-2009 02
048 25776667 RECEPTACLE, ACSRY PWR (PART OF 43) (2 TERMINALS) CK1 (06) (ULT) 2008-2009 01
049 25749635 RETAINER, ACSRY PWR RCPT (PART OF 43) (EBONY) (W/O CAP) CK1, 2, 3 2008-2009 01
