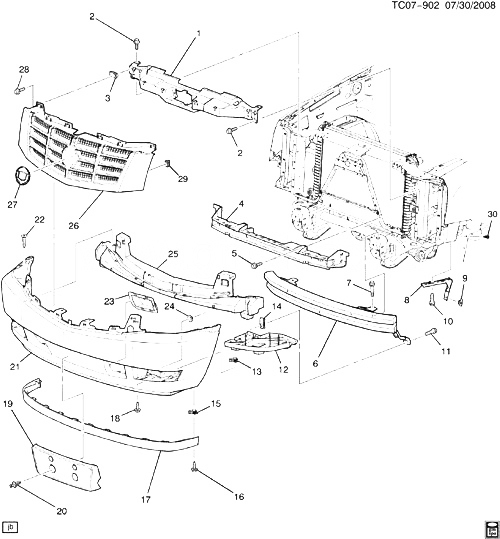

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15904442 |
BRACKET, RAD GRL UPR (INCLS 3)
| CK1 (Z75) |
2007-2009 |
01 |
|
| 002 |
11610055 |
БОЛТ, HWASH, M6X1X23 (RAD GRL SUPT REINF) |
|
2007-2009 |
08 |
| 003 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 1) |
|
2007-2009 |
08 |
| 004 |
25901978 |
BRACKET, FRT BPR FASCIA
| CK1, 2 (06-36) (X88, Z75) |
2007-2009 |
01 |
|
| 005 |
11610055 |
БОЛТ, HWASH, M6X1X23 (FRT BPR FASCIA) |
|
2007-2009 |
06 |
| 006 |
25947497 |
BAR, FRT BPR IMP
| CK1, 2 (06-36) (Z75) |
2009-2009 |
01 |
|
| 007 |
11519154 |
БОЛТ, FRT BPR IMP BAR (M14X2X140)
| CK1, 2, 3 |
2007-2009 |
02 |
|
| 008 |
25948814 |
BRACKET, FRT BPR FASCIA SI (INCLS 9)
| CK1, 2 (06-36) (Z75) |
2007-2009 |
01 |
|
| 008 |
25948815 |
BRACKET, FRT BPR FASCIA SI (INCLS 9)
| CK1, 2 (06-36) (Z75) |
2007-2009 |
01 |
|
| 009 |
11518531 |
ГАЙКА, U-TYPE, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (PART OF 8) (10.512)
|
2007-2009 |
02 |
|
| 010 |
11610055 |
БОЛТ, HWASH, M6X1X23 (FRT BPR FASCIA SI BRKT) |
|
2007-2009 |
04 |
| 011 |
11609685 |
БОЛТ, HEX W/CON SPR WA, M6X1X27, 19 THD, 24 OD, 8.8, GMW3359 BLACK, M-PT (FRT BPR LWR FASCIA) |
|
2007-2009 |
02 |
| 012 |
10376177 |
FILLER, FRT BPR OTR FRT
| CK1 (06-36) (Z75) (EXC ULT) |
2008-2009 |
01 |
|
| 012 |
10376178 |
FILLER, FRT BPR OTR FRT
| CK1 (06-36) (Z75) (EXC ULT) |
2008-2009 |
01 |
|
| 013 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (FRT BPR OTR FRT FIL)
|
2007-2009 |
08 |
|
| 014 |
11609385 |
ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (FRT BPR LWR FASCIA)
|
2007-2009 |
02 |
|
| 015 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (FRT OTR A/DFL)
|
2007-2009 |
02 |
|
| 016 |
11609465 |
БОЛТ, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (FRT OTR A/DFL) (8.977)
|
2007-2009 |
02 |
|
| 017 |
15138234 |
DEFLECTOR, FRT AIR
| CK1 (06) (VGD, Z75) (EXC ULT) |
2008-2009 |
01 |
|
| 018 |
11609465 |
БОЛТ, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (FRT BPR OTR FRT FIL) (8.977)
|
2007-2009 |
08 |
|
| 019 |
15140153 |
ATTACHMENT KIT, FRT LIC PLT (INCLS 20)
| CK1, 2 (06) (VL4, Z75) (EXPORT) |
2007-2009 |
01 |
|
| 019 |
15851090 |
BRACKET, FRT LIC PLT (CHARCOAL)
| CK1, 2 (06) (BPH, VK3) |
2007-2009 |
01 |
|
| 019 |
15941065 |
BRACKET, FRT LIC PLT (PAINT TO MATCH) |
CK1, 2 (06) (VK3, Z75) |
2007-2009 |
01 |
| 020 |
15993201 |
RETAINER, FRT LIC PLT BRKT (PART OF 19) (FOR 9.3MM DIA HOLE) (NYLON) (17.505)
| CK1, 2 (06) (VL4, Z75) (EXPORT) |
2007-2009 |
04 |
|
| 021 |
25814554 |
FASCIA, FRT BPR (PAINT TO MATCH)
| CK1 (06-36) (VGD, Z75) (EXC ULT) |
2007-2009 |
01 |
|
| 022 |
25705182 |
БОЛТ, FRT BPR FASCIA CTR SUPT (M9.5X6.0 HI-LO, TL 47MM, 22 OD) (12.249)
| CK1, 2 (06-36) |
2007-2009 |
AR |
|
| 023 |
15893972 |
COVER, FRT TOW HOOK OPG
| CK1 (06) (VGD, Z75) |
2007-2009 |
01 |
|
| 023 |
15893973 |
COVER, FRT TOW HOOK OPG
| CK1 (06) (VGD, Z75) |
2009-2009 |
01 |
|
| 024 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (FRT FOG LP)
|
2007-2009 |
06 |
|
| 025 |
15882456 |
SUPPORT, FRT BPR FASCIA
| CK1 (06-36) (VGD, Z75) (EXC ULT) |
2008-2009 |
01 |
|
| 026 |
|
GRILLE, RAD (СМ. ГРУППУ 01.000 РЕШЕТКА РАДИАТОРА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 027 |
20824266 |
EMBLEM, RAD GRL (BUILT 01/12/09 AFTER) (FOR 1ST DES SEE 25795247) |
CK1 (06-36) (VGD, Z75) (EXC ULT) (2ND DES) |
2009-2009 |
01 |
| 027 |
25795247 |
EMBLEM, RAD GRL (WREATH/CREST) (BUILT PRIOR TO 01/12/09) (FOR 2ND DES SEE 20824266)
| CK1 (06-36) (VGD, Z75) (EXC ULT) (1ST DES) |
2009-2009 |
01 |
|
| 028 |
11610055 |
БОЛТ, HWASH, M6X1X23 (FRT BPR UPR FASCIA) |
|
2007-2009 |
06 |
| 029 |
15078238 |
RETAINER, RAD GRL (BLACK) (25X15.5) (ALSO REPLACES SILVER)
| CK1 (06-36) |
2007-2009 |
02 |
|
| 030 |
10121502 |
RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (FRT BPR FASCIA OTR BRKT)
|
2007-2009 |
04 |
|
