| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

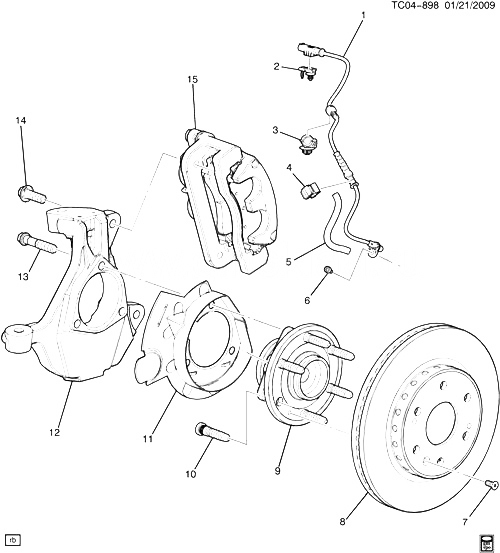

| 001 |
15229012 |
SENSOR, FRT WHL SPD (INCLS 2-4) (PART OF 9) (ACDelco #15229012) (FOR VEHICLES WITH RPO PPV-USE T/W THERMAL WRAP PN 19207924, BETWEEN WHEEL SPEED SENSOR HEAD AND FIRST CLIP.)
| C1 |
2009-2009 |
02 |
|
| 002 |
15229013 |
CLIP, WHL SPD SEN WIRE (PART OF 1, 9) (SLIDE LOCK WITH ALIGNMENT PIN) |
CK1 |
2009-2009 |
02 |
| 003 |
15267361 |
CLIP, WHL SPD SEN WIRE (PART OF 1, 9) (CLAM SHELL WITHOUT ALIGNMENT PIN) |
CK1 |
2009-2009 |
02 |
| 004 |
15715956 |
CLIP, WHL SPD SEN WIRE (PART OF 1, 9) (10.00MM) (1 HOLE CLIP) |
CK1 |
2009-2009 |
02 |
| 005 |
19207924 |
PROTECTOR, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE |
C1 (PPV) |
2009-2009 |
02 |
| 006 |
15960191 |
БОЛТ, WHL SPD SEN (PART OF 9) (M6X1X12) |
C1, 2, 3 |
2009-2009 |
AR |
| 007 |
11609271 |
БОЛТ, FRT BRK ROT (M8 X 1.25 X 20) |
C1 |
2009-2009 |
02 |
| 009 |
25819677 |
HUB, FRT WHL (W/WHL SPD SEN) (INCLS 1-4, 6, 10) (ACDelco #FW345) (FOR VEHICLES WITH RPO PPV USE T/W THERMAL WRAP PN 19207924, BETWEEN WHL SPD SENSOR HEAD AND FIRST CLIP) |
C1 (03-06-36-53) |
2009-2009 |
02 |
| 010 |
11588810 |
STUD, FRT WHL (PART OF 9) (M14X1.5X65)
| C1, 2, 3 |
2009-2009 |
AR |
|
| 012 |
15942236 |
KNUCKLE, STRG (MCHG) |
C1 |
2009-2009 |
01 |
| 012 |
15942237 |
KNUCKLE, STRG (MCHG)
| C1 |
2009-2009 |
01 |
|
| 013 |
15719028 |
БОЛТ, FRT WHL BRG (M14X1.5X70) (6.104)
| C1, 2, 3 |
2009-2009 |
AR |
|
| 014 |
15016308 |
БОЛТ, M14X2X40, 40 THD, 28 OD, 10.9, GM6174M, LOCTITE PATCH GM6194M (S/KNU) (4.665) |
|
2009-2009 |
04 |
| 015 |
|
CALIPER, FRT BRK (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ СУППОРТ-ПЕРЕДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2009-2009 |
|
